2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

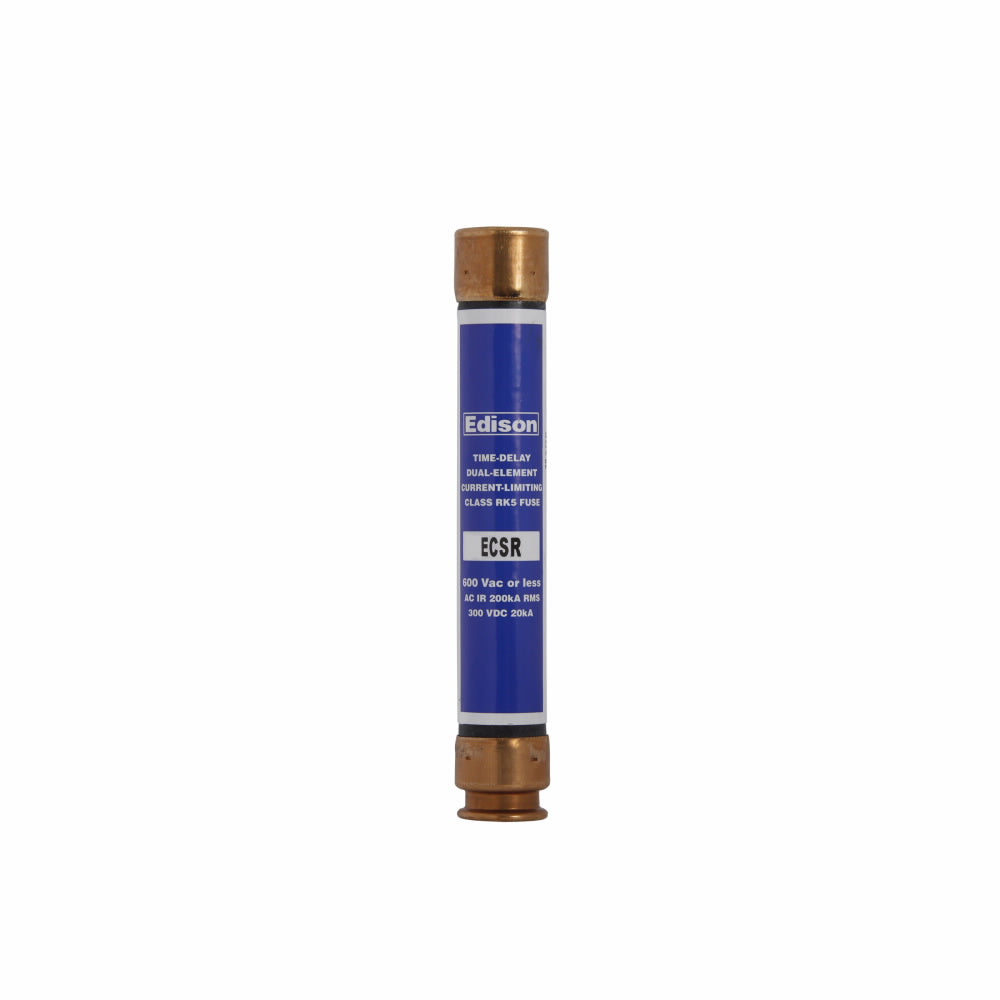

ECSR25
ECSR25 is a 25 amp, 600 volt Class RK5 time-delay current-limiting fuse designed for superior overload and cycling capabilities.This fuse features a dual-element, time-delay design with a minimum 10-second delay at 500% rated current, providing motor overload, ground fault, and short-circuit protection. It has a 200kA interrupt rating and is suitable for use in feeder and branch circuit protection with ferrule end connections for holder mounting. Certified to UL 248-12, CSA C22.2 No. 248.12, and CE standards.
- Key Specifications
- Amperage: 25 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kA RMS Symmetrical
- Class: RK5
- Fuse Type: Dual-Element, Time-Delay
- Mounting Type: Holder (Ferrule Ends)
- Response Time: Minimum 10 seconds at 500% rated current
- Dimensions: 5 inch length, 0.81 inch diameter
- Certifications: UL, CSA, CE
Specifications
- Part Number: ECSR25
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 25
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 2
Product Data
- UPC : 78263450833
- GTIN : 00782634508335
- Dimensions : 11.63 in x 2.34 in x 2.34 in (Length/Depth x Height x Width)
- Weight : 2.35
