Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

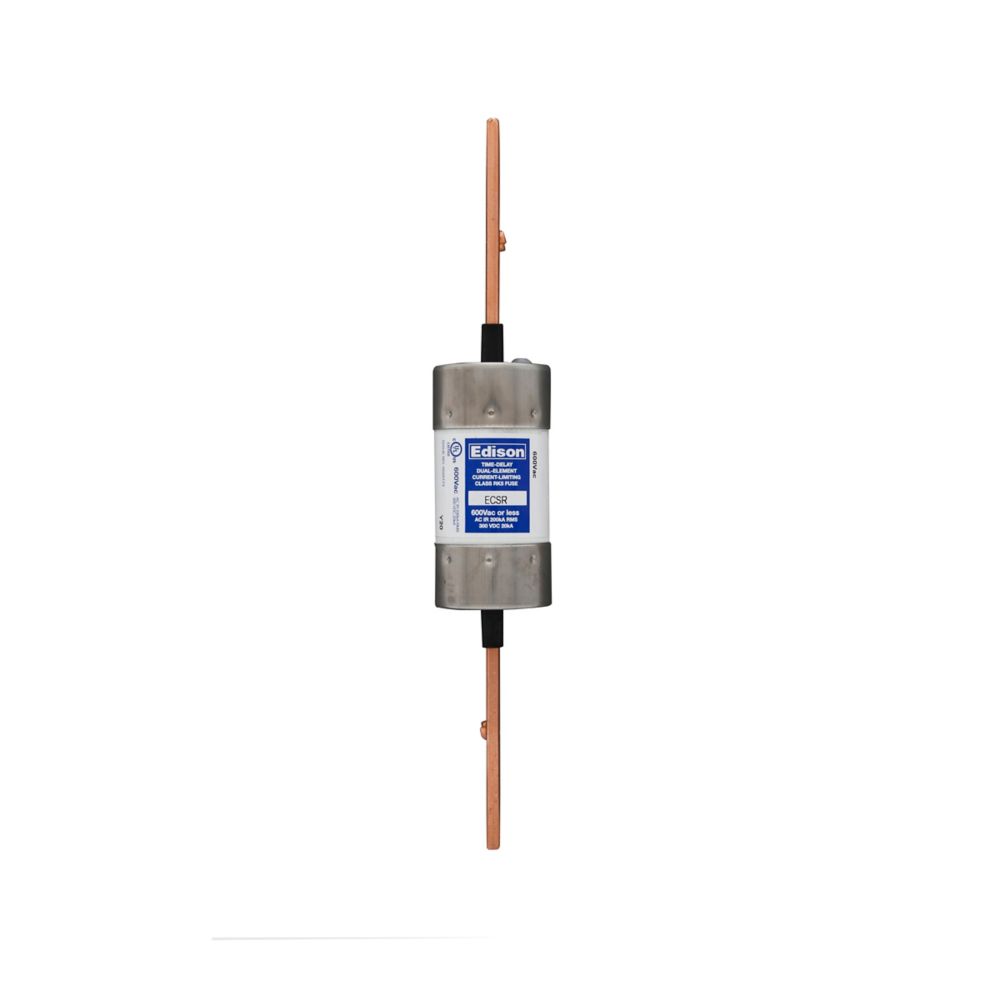

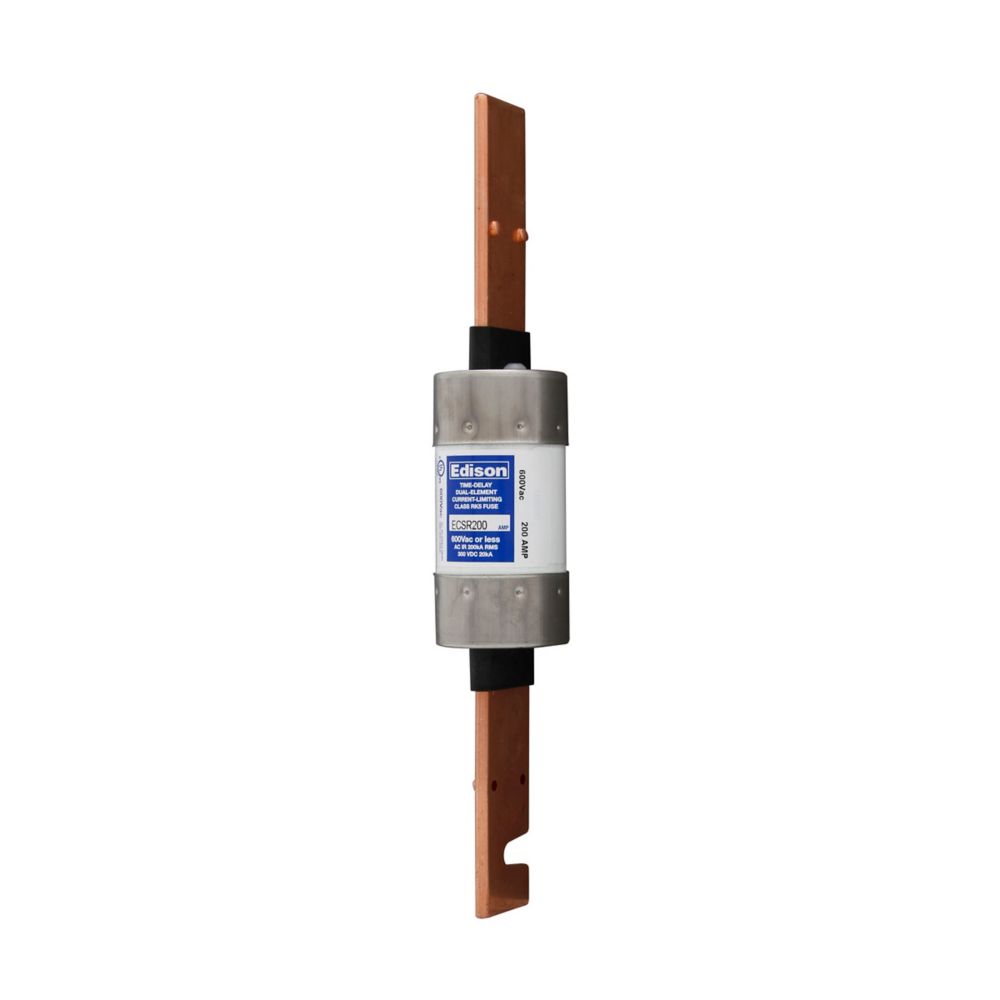

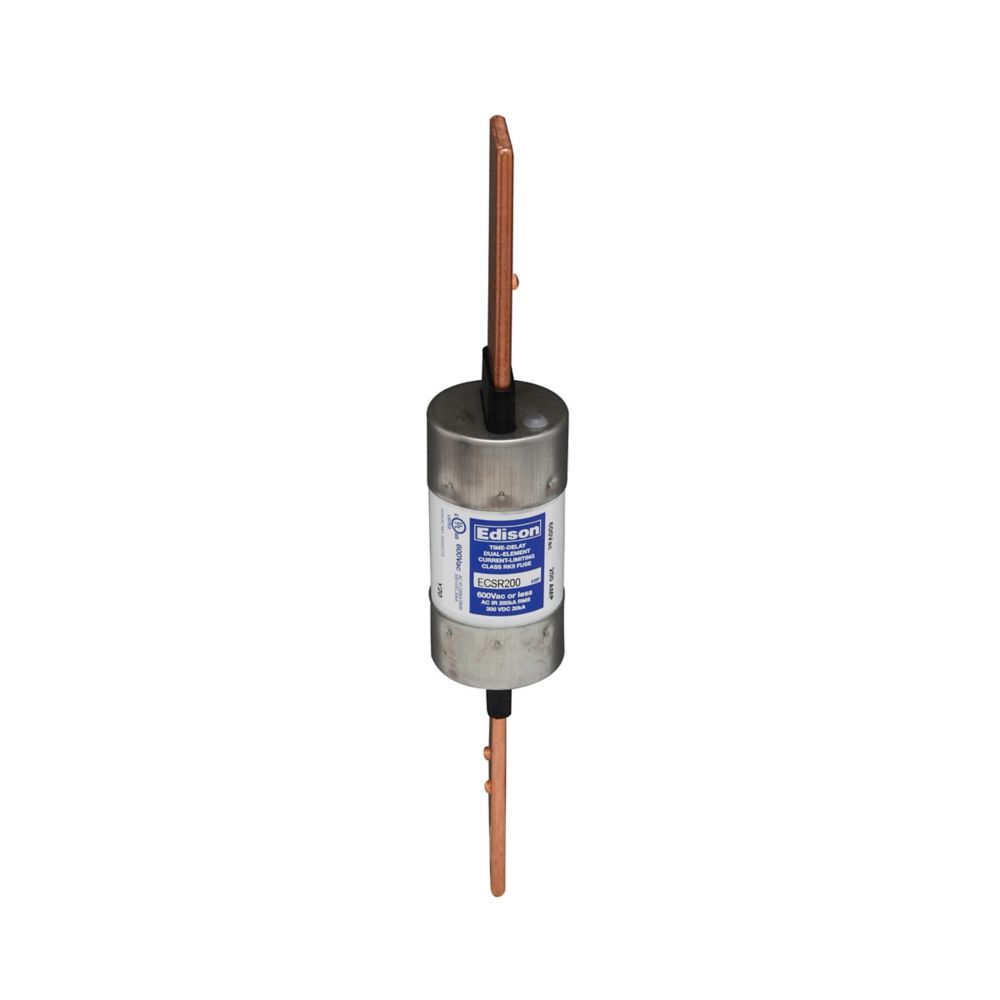

ECSR200
ECSR200 is a Class RK5 current-limiting, time-delay fuse from Edison Fuses, designed for reliable feeder and branch circuit protection in low voltage applications.
This single barrel, knife blade fuse offers a 200A amperage rating and 600V voltage rating, with a robust 200kA interrupt rating. It features a time-delay curve for enhanced motor and transformer protection, and is UL Listed, CSA, and CE approved for safety and compliance. The ECSR200 is ideal for industrial and commercial electrical systems requiring dependable overcurrent protection.
-
Key Specifications
- Part Number: ECSR200
- Manufacturer: Edison Fuses
- Category: Fuse
- Amperage: 200A
- Voltage: 600V AC
- Poles: 1
- Mounting Type: Holder (knife blade)
- Interrupt Rating: 200,000A (200kA)
- Series/Frame: ECSR
- Trip Unit: Time-delay
- Certifications: UL Listed, CSA, CE
- Body Type: Single barrel, knife blade
- Application: Feeder/branch protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ECSR200
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Diameter : 1.61
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508489
- GTIN : 00782634508489
- Dimensions : 11.63 in x 2.34 in x 2.34 in (Length/Depth x Height x Width)
- Weight : 2.35 lb
- Certification : CE, CSA, UL
