Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECSR150

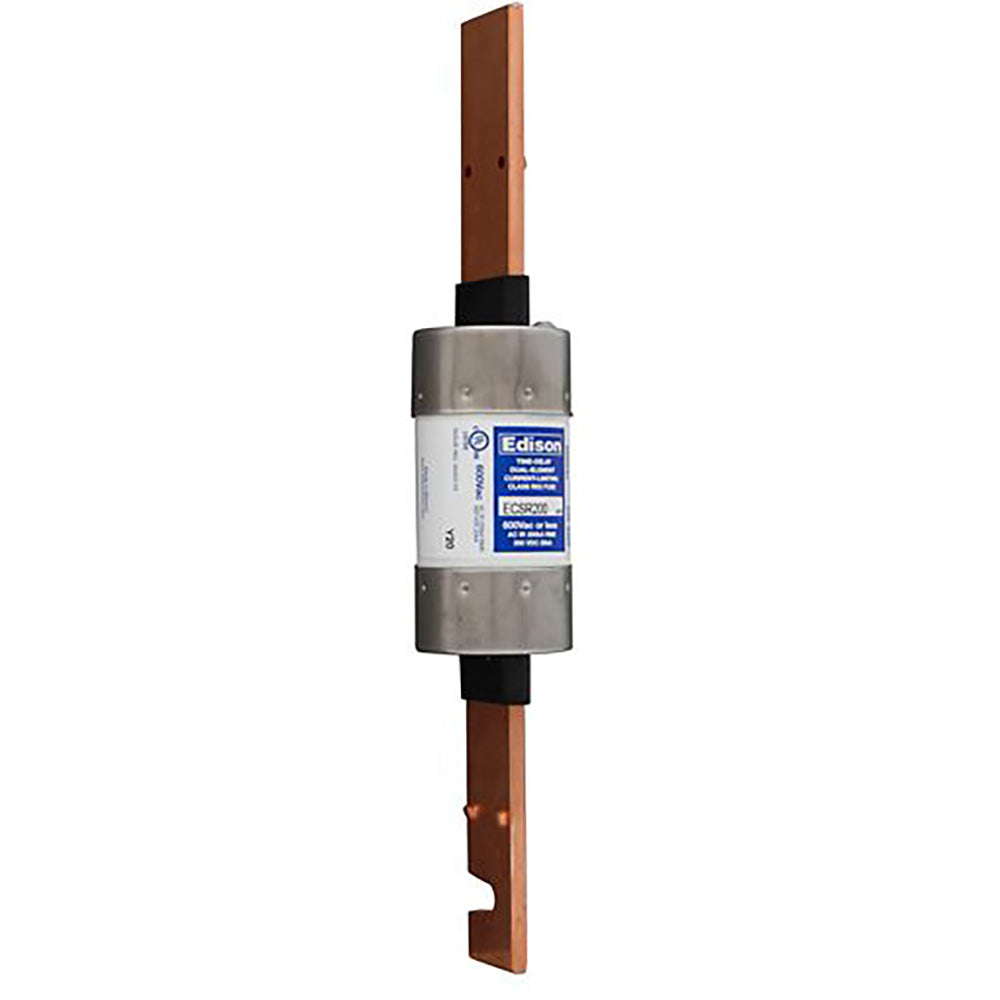

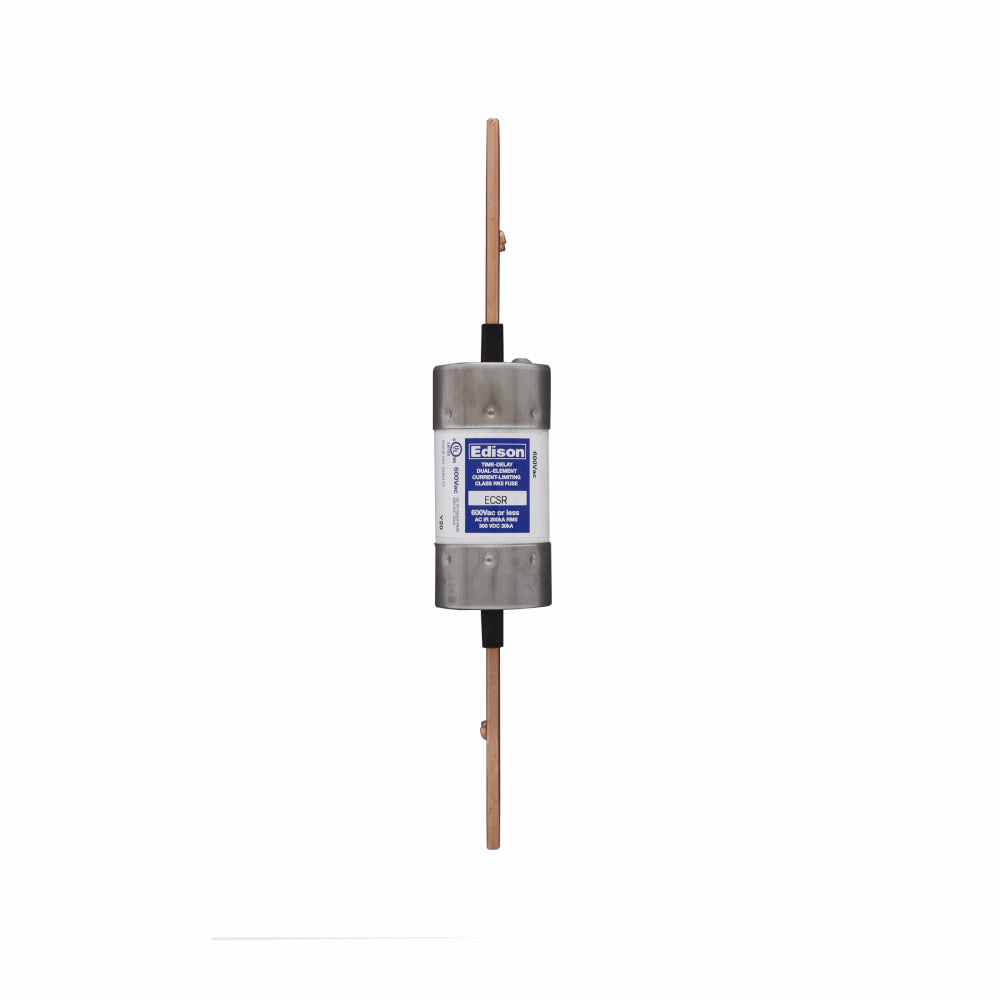

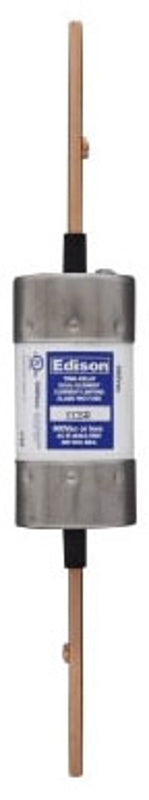

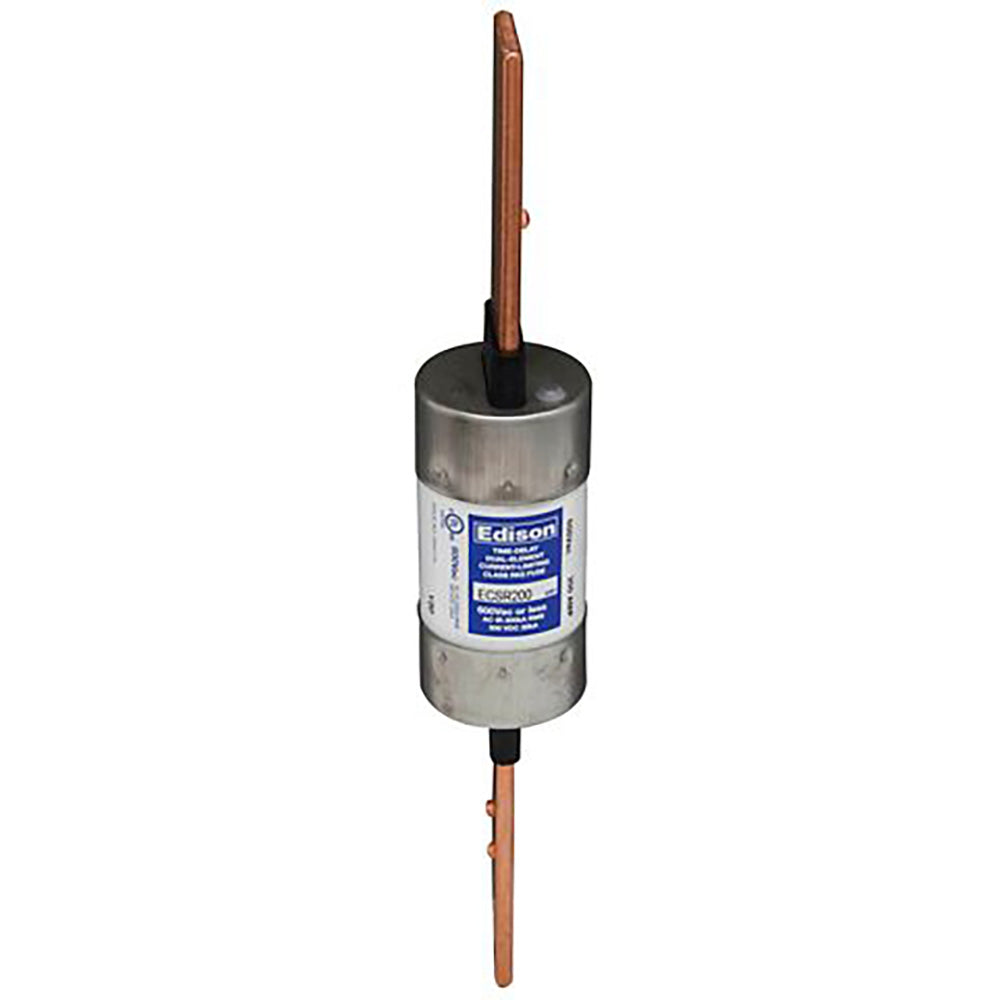

ECSR150 is a 150 amp, 600 volt Class RK5 time-delay current-limiting fuse from Edison Fuses designed for superior overload and cycling capabilities.This fuse features dual elements, blade end x blade end connections, and a 200 kA interrupt rating for reliable feeder and branch circuit protection.
- Amperage Rating: 150 A
- Voltage Rating: 600 V AC
- Class: RK5
- Fuse Type: Time-delay, current-limiting
- Number of Elements: Dual
- Interrupt Rating: 200 kAIC
- Connection Type: Blade end x blade end
- Response Time: 10 seconds at 500% overload
- Fuse Indicator: Non-indicating
- Certifications: UL, CSA C22.2, CE Marked
- Mounting Type: Knife blade
Specifications
- Part Number: ECSR150
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 150
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 078263450846
- GTIN : 00782634508465
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.4
