Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

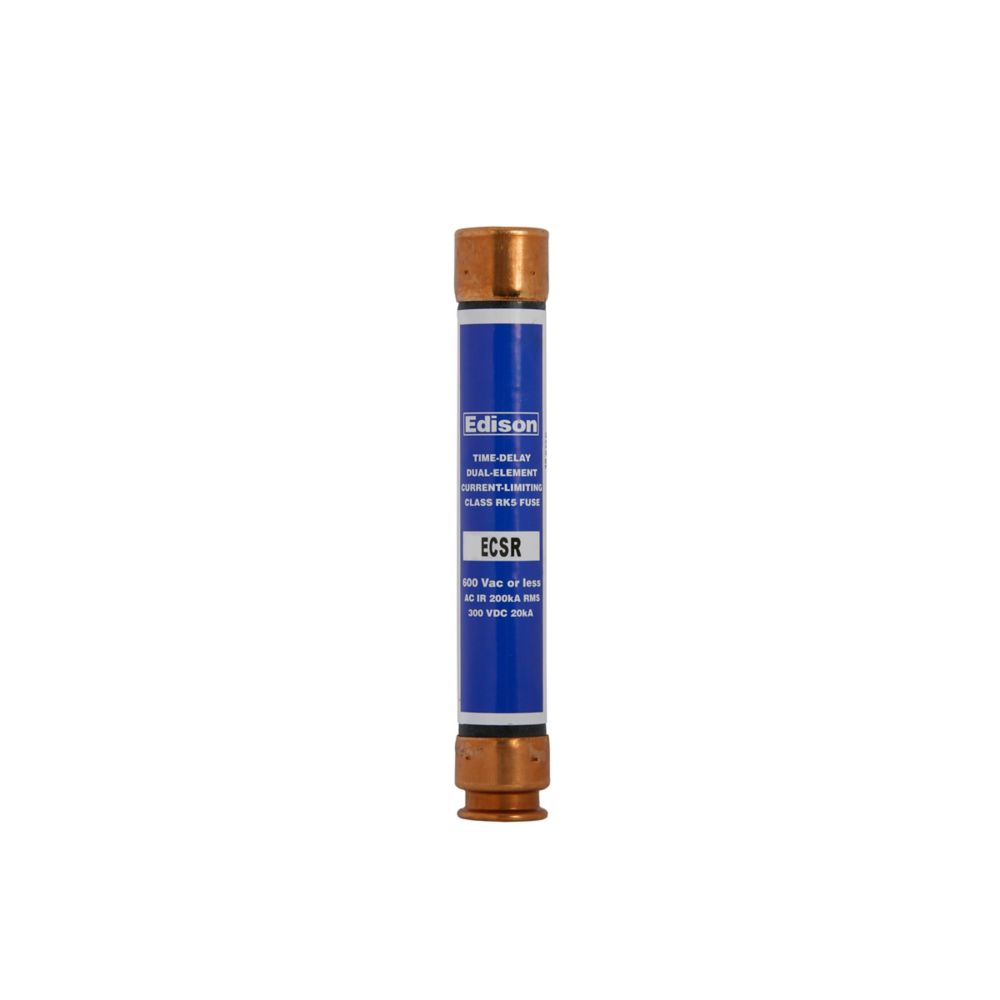

ECSR15
ECSR15 is a 15 amp, 600 volt Class RK5 dual-element time-delay fuse designed for superior overload and cycling capabilities.ECSR15 provides motor overload, ground fault, and short-circuit protection with a 10 second time delay at 500% rated load and a 200 kA interrupt rating. It features ferrule end terminals and is CE marked with UL and CSA certifications.
- Key Specifications
- Amperage: 15 A
- Voltage Rating: 600 VAC
- Class: RK5
- Fuse Type: Dual Element, Time-Delay
- Interrupt Rating: 200 kAIC
- Response Time: 10 seconds at 500% rated current
- Terminals: Ferrule end x ferrule end
- Certifications: UL 248-12, CSA C22.2, CE Marked
- Mounting Type: Standard cartridge
- Non-indicating fuse
Specifications
- Part Number: ECSR15
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508304
- GTIN : 00782635000000
- Country of Origin : United States
- Dimensions : 9.63 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
- Weight : 1.5
