Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECSR12

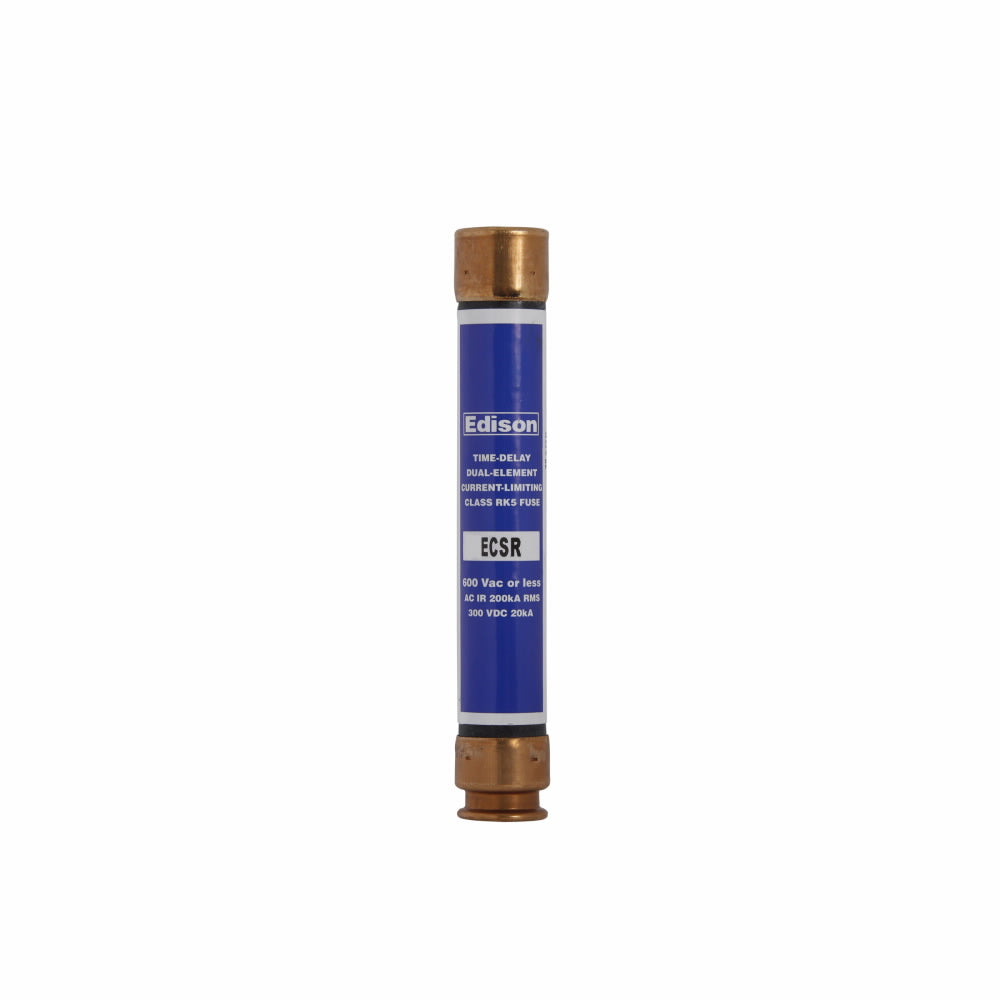

ECSR12 is a 12 amp, 600 volt, Class RK5 time-delay current-limiting fuse designed for superior overload and cycling capabilities.This Edison fuse features a dual-element design providing motor overload, ground fault, and short-circuit protection with a 200kA interrupt rating. It is UL, CSA, and CE certified, suitable for feeder and branch circuit protection, and uses a ferrule mounting type.
- Amperage: 12 Amps
- Voltage Rating: 600 VAC
- Fuse Class: RK5
- Time-Delay: Dual-element
- Interrupt Rating: 200kA RMS Symmetrical
- Mounting Type: Ferrule
- Certifications: UL, CSA, CE
- Non-indicating
- Series: ECSR
- Application: Motor overload and branch circuit protection
Specifications
- Part Number: ECSR12
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 12
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508298
- GTIN : 00782634508298
- Dimensions : 9.63 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
- Weight : 1.5
