Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

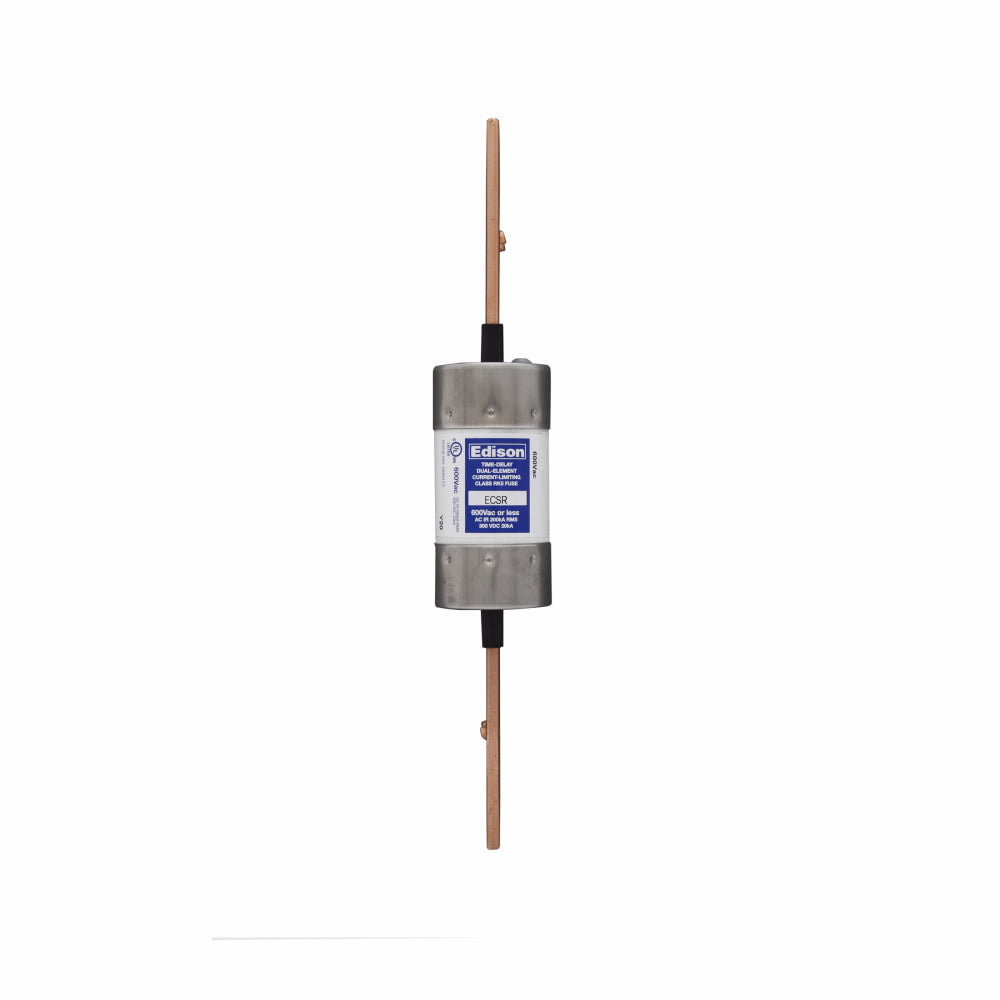

ECSR110
ECSR110 is a 110 amp, 600 volt Class RK5 time-delay current-limiting fuse from Edison Fuses designed for feeder and branch circuit protection.ECSR110 features a dual-element time-delay design with blade end x blade end connections, providing superior overload and cycling capabilities. It is a non-indicating fuse suitable for low voltage applications requiring reliable current interruption and protection against short circuits and overloads.
- Key Specifications
- Amperage: 110A
- Voltage Rating: 600 VAC
- Fuse Class: RK5
- Fuse Type: Current-limiting, time-delay
- Poles: Single barrel (1 pole)
- Mounting Type: Blade end x blade end
- Interrupt Rating: High interrupting capacity (AIC)
- Series/Frame: ECSR Series
- Trip Unit: Dual element time delay
- Certifications: UL Listed
Specifications
- Part Number: ECSR110
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 110
- AIC rating : 200kA@600V
- Diameter : 1.61
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508441
- GTIN : 00782634508441
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.4
