Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECSR100

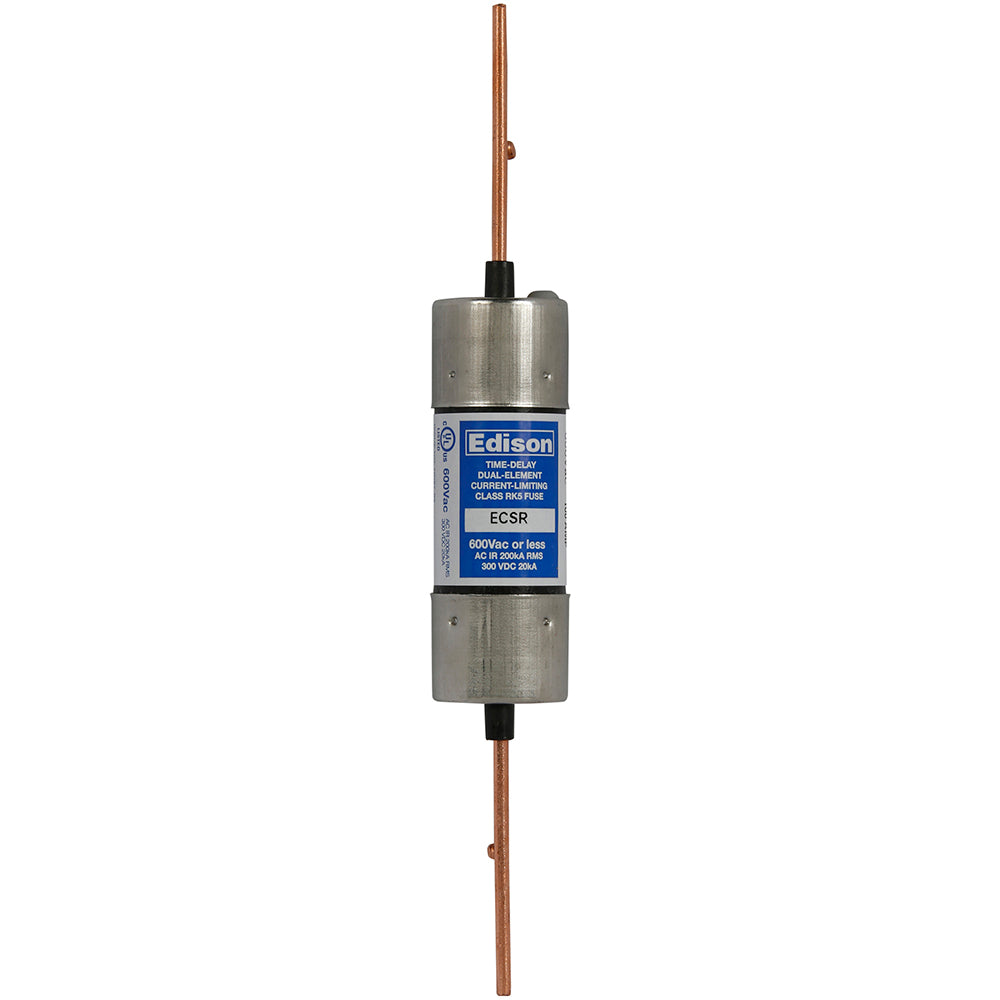

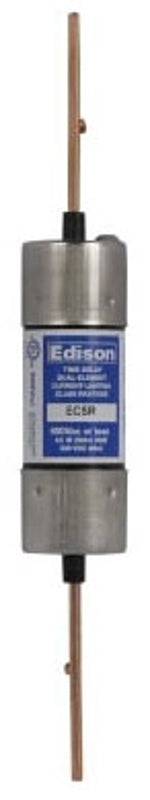

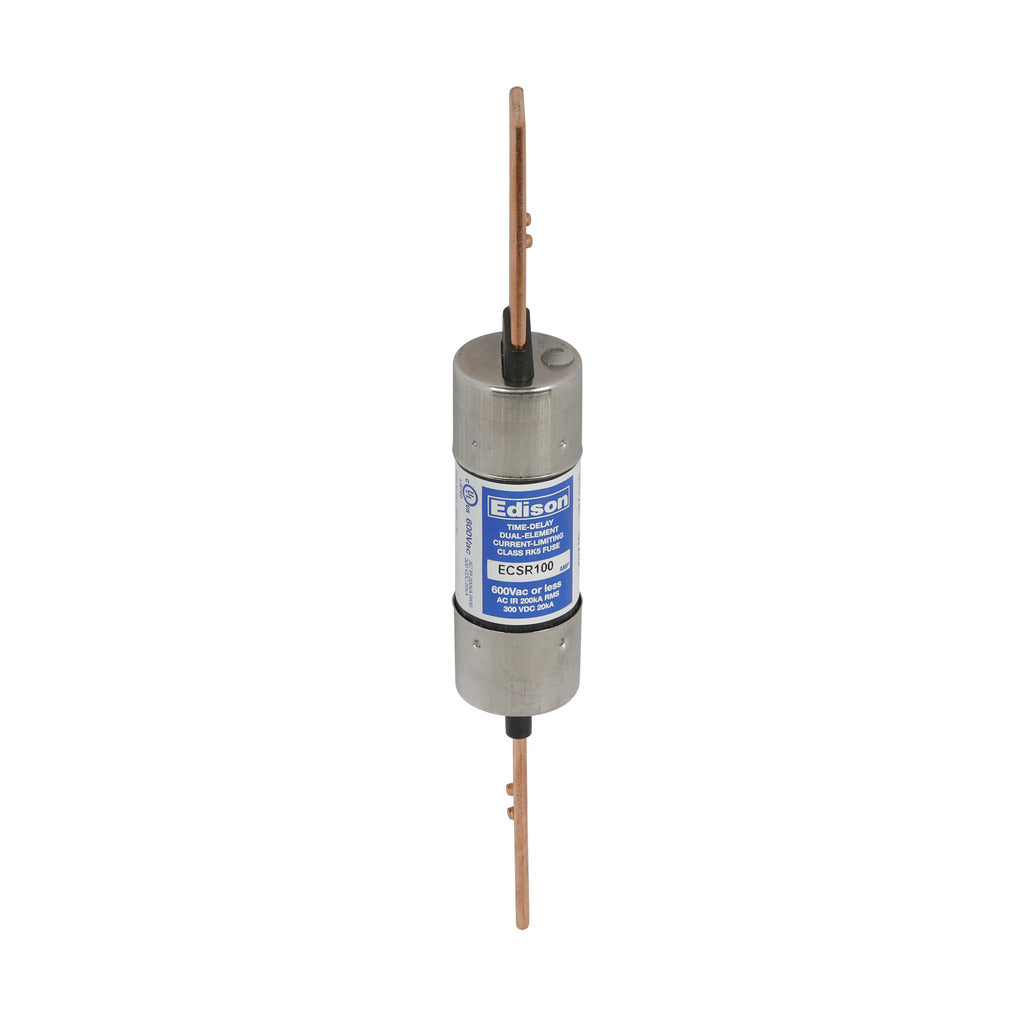

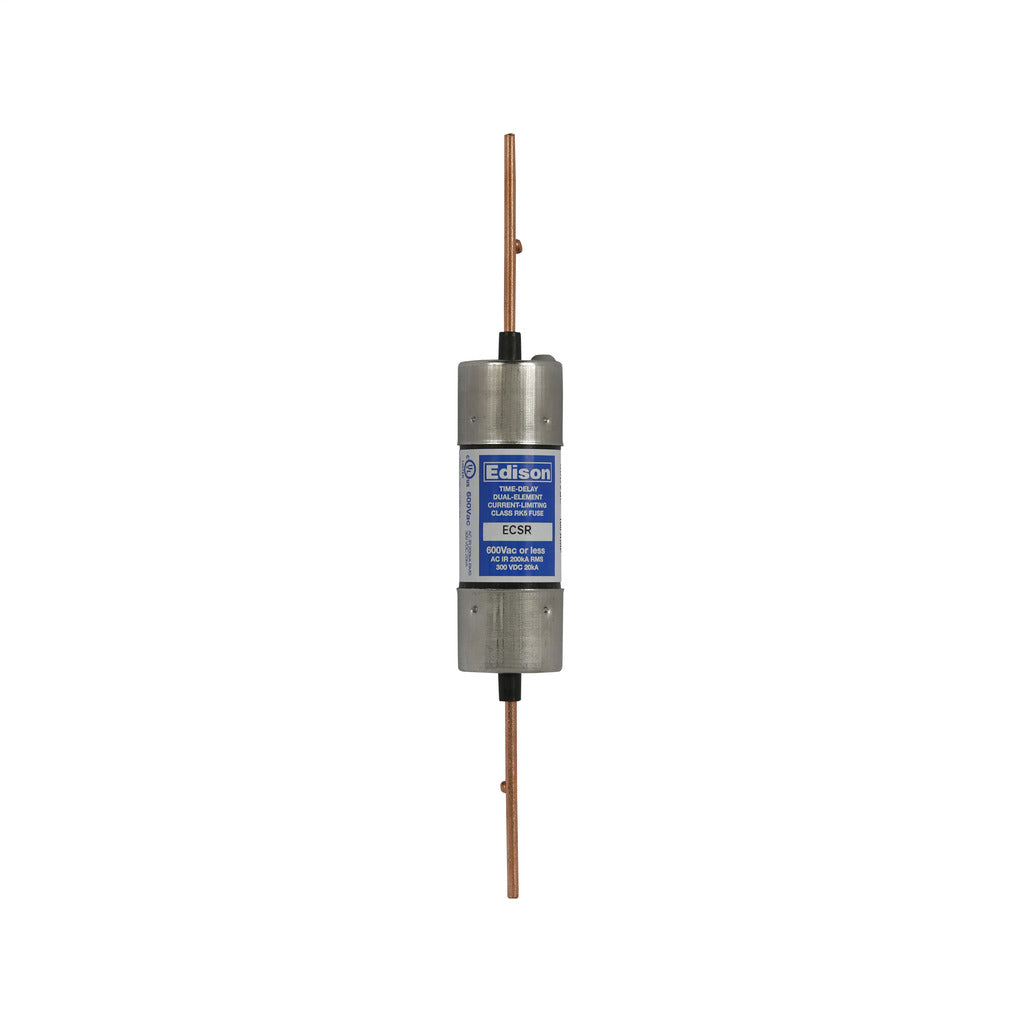

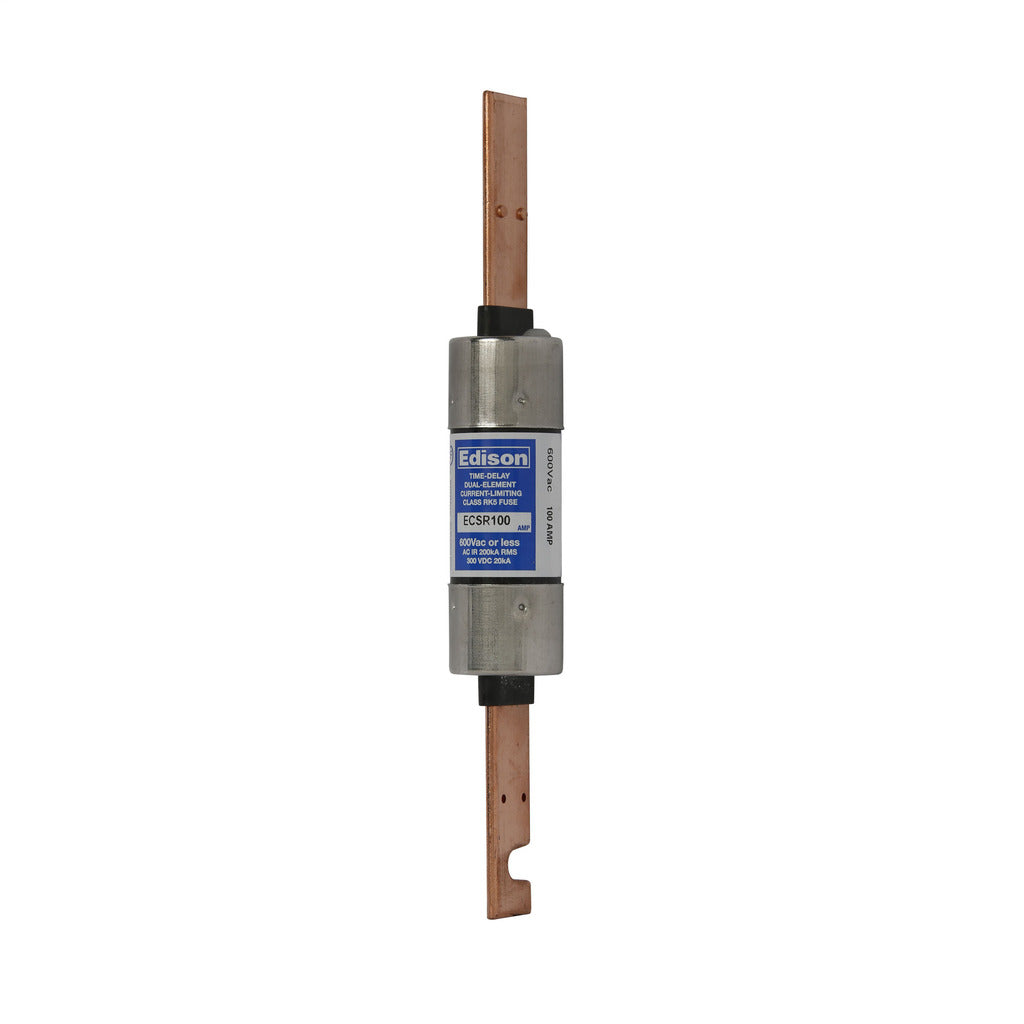

ECSR100 is a 100 amp, 600 VAC Class RK5 dual element time-delay fuse designed for reliable circuit protection.This Edison fuse features a current-limiting, dual element design with time-delay response, providing superior overload and cycling capabilities. It has a blade terminal mounting type and a 200 kA interrupt rating, making it suitable for feeder and branch circuit protection in industrial and commercial applications. The fuse is UL, CSA C22.2, and CE certified, ensuring compliance with safety standards.
- Amperage: 100A
- Voltage Rating: 600 VAC
- Fuse Class: RK5
- Element Type: Dual Element
- Response Time: Time Delay
- Mounting Type: Blade Terminal
- Interrupt Rating: 200 kA
- Length: 7.88 inches
- Diameter: 1.11 inches
- Certifications: UL, CSA C22.2, CE
- Package Quantity: 5
Specifications
- Part Number: ECSR100
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECSR Series
- Type : ECSR
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 1.11
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634508434
- GTIN : 00782634508434
- Dimensions : 9.63 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
- Weight : 1.5
