Product Info
- Manufacturer:Edison
- Sub-Category:Low Voltage
Description
ECS50

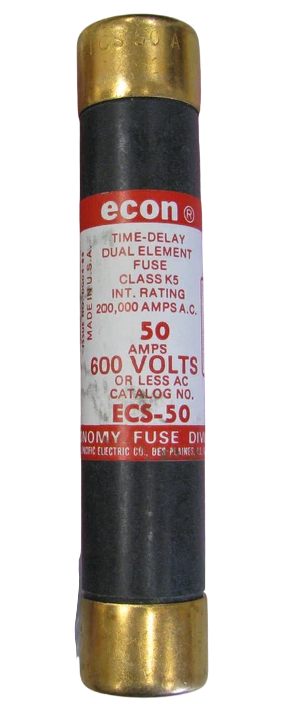

ECS50 is a 50A 600V low voltage time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This Edison fuse features a bullet body construction and is engineered for use in power distribution systems where dependable overcurrent protection is required. The ECS50 fuse is a Class RK5, single barrel, time-delay fuse with a 100kA interrupting rating at 600V. It is suitable for protecting motors, transformers, lighting, and other resistive or inductive loads. The time-delay characteristic allows the fuse to withstand temporary current surges, reducing nuisance openings and improving system reliability.
- Amperage Rating: 50 A
- Voltage Rating: 600 V
- Interrupt Rating: 100 kAIC
- Class: RK5
- Body Type: Bullet
- Element: Single Barrel
- Mounting Type: Fuse Holder
- Response Time: Time-Delay
- Terminal Type: Ferrule End x Ferrule End
- Series: ECS
- Application: Motor, Transformer, Lighting, Heating
Specifications
- Part Number: ECS50
- Manufacturer : Edison
- Brand : Edison
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Econ
- Voltage : 600
- Amperage : 50
- AIC rating : 100kA@600V
- Class Rating : RK5
- Barrels : 1
Product Data
- Weight : 25
