Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECNR90

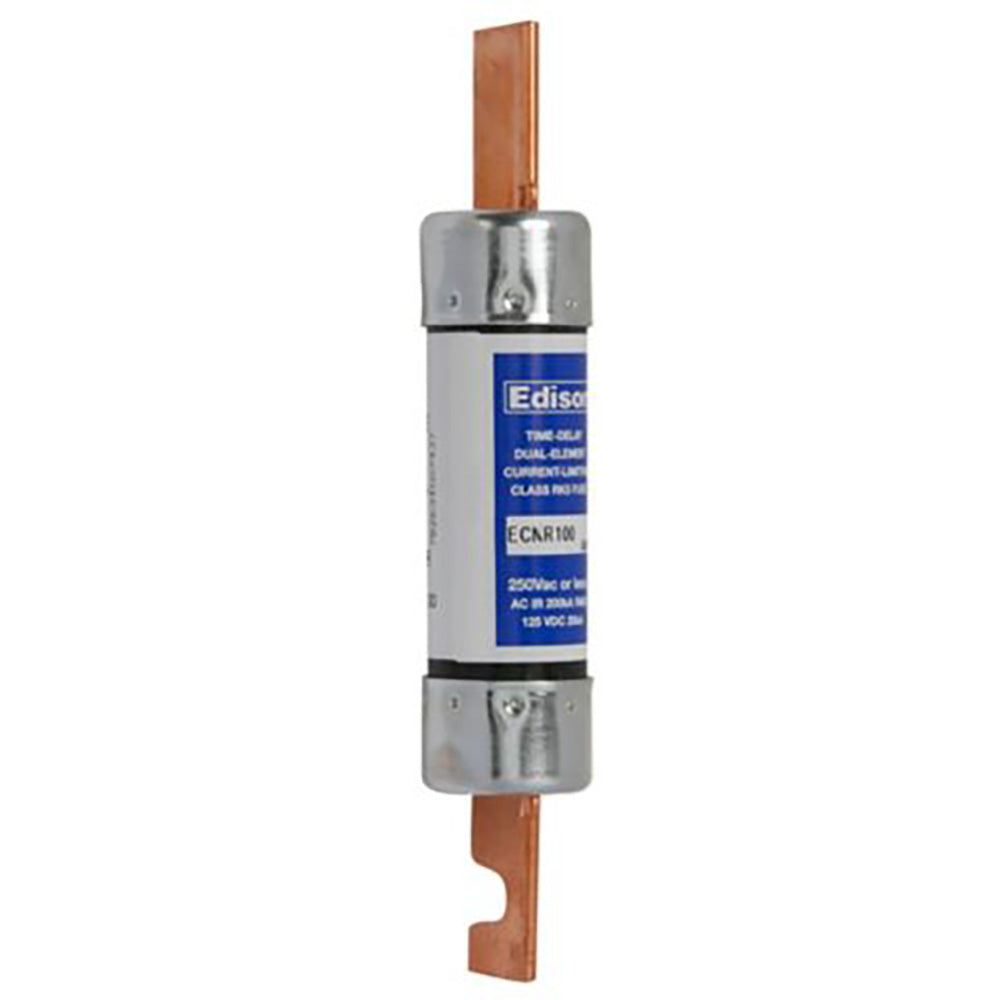

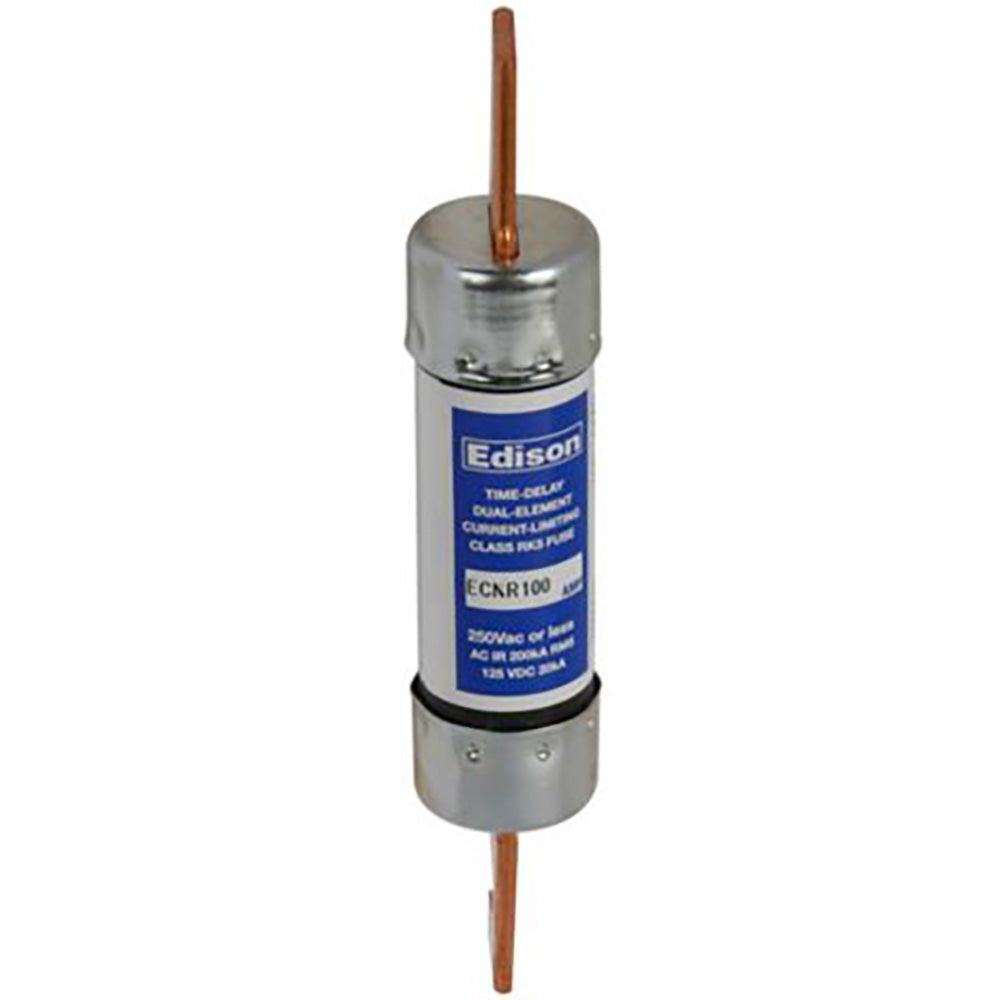

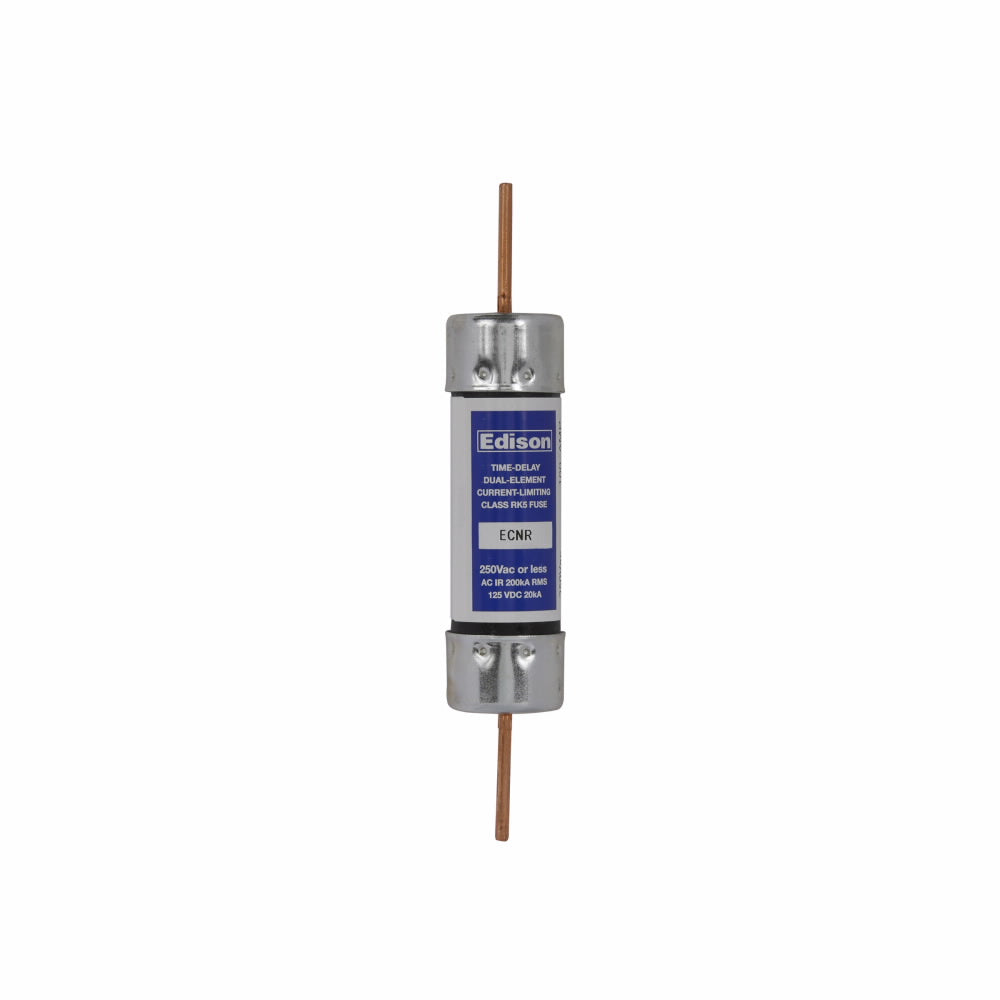

ECNR90 is a 90 amp, 250 volt Class RK5 time-delay current-limiting fuse from Edison Fuses.
This fuse features a dual-element design for time-delay performance and current limiting, suitable for feeder and branch circuit protection. It has a 1.06 inch diameter and 5.88 inch length with a knife blade mounting type. The ECNR90 offers a high interrupt rating of 200kA at 250V AC and is UL, CSA C22.2, and CE certified for safety and reliability.
- Key Specifications
- Amperage: 90 Amps
- Voltage Rating: 250 VAC, 125 VDC
- Fuse Type: Class RK5
- Fuse Response: Time-Delay
- Interrupt Rating: 200kA at 250V AC
- Mounting Type: Knife Blade
- Dimensions: 1.06 inch diameter, 5.88 inch length
- Design: Dual-element, current-limiting
- Certifications: UL, CSA C22.2, CE
- Application: Feeder and branch circuit protection
- Part Number: ECNR90
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 90
- AIC rating : 200kA@250V
- Connection : Rejection Blade
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
- UPC : 78263450742
- GTIN : 00782634507420
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.4
