Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

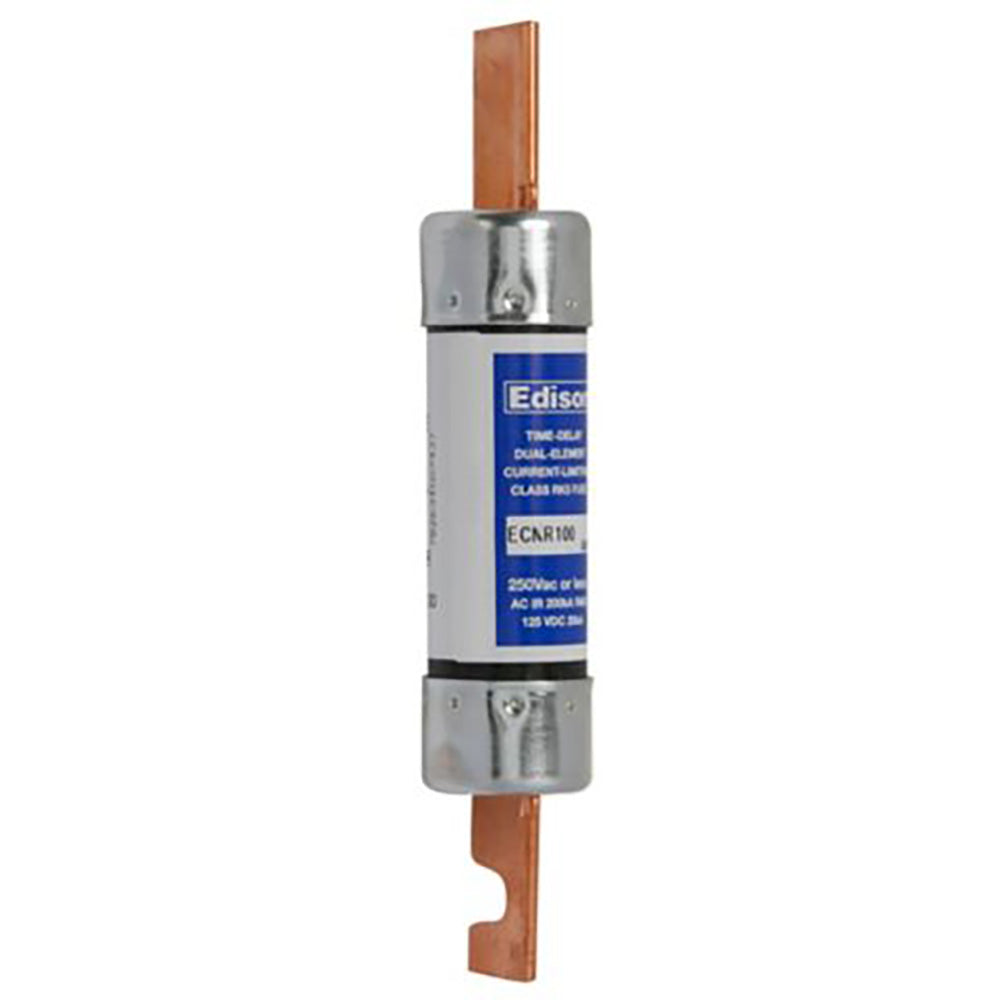

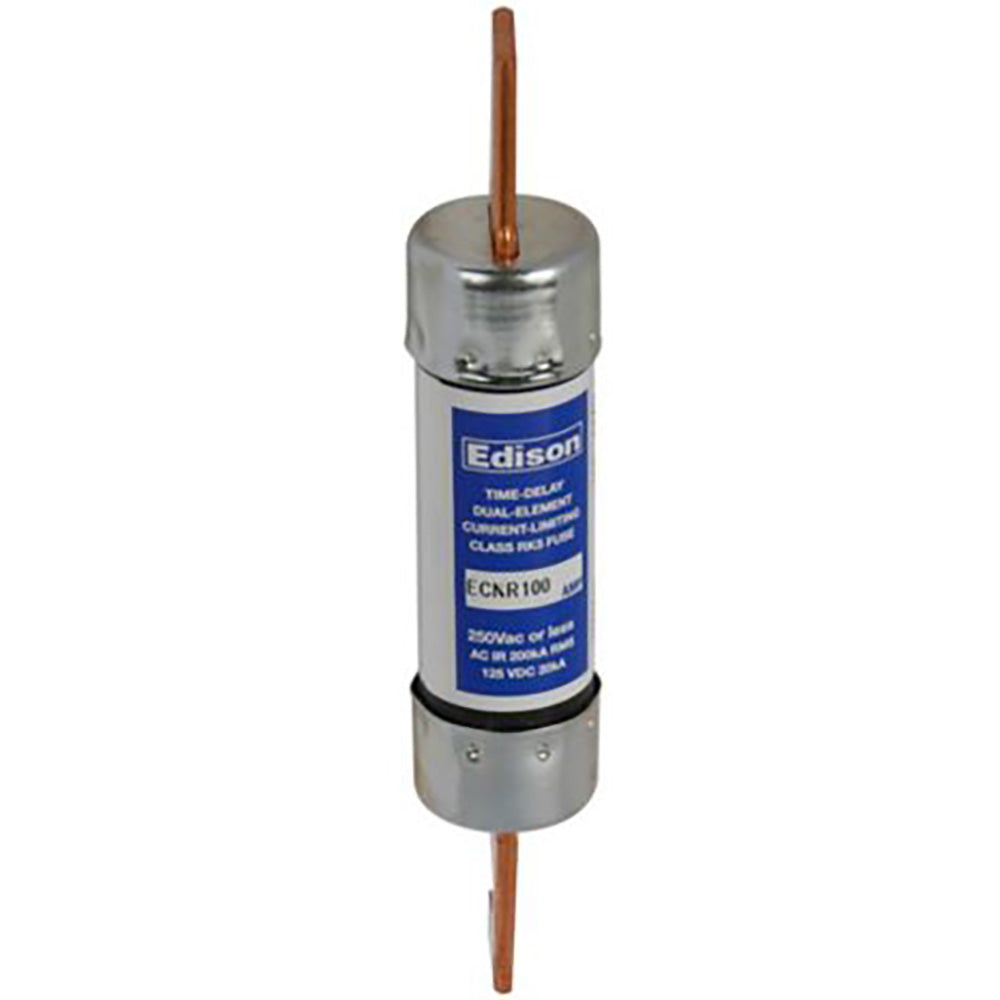

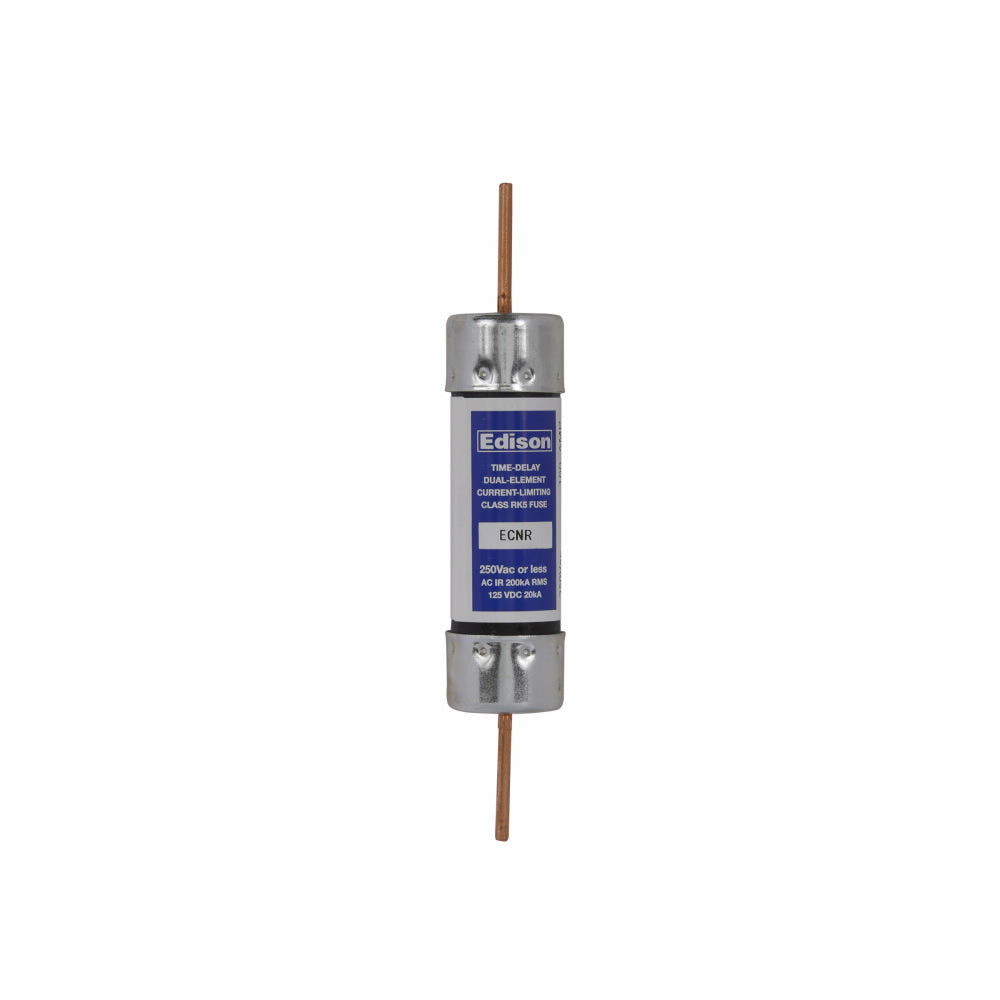

ECNR80
ECNR80 is an 80 amp, 250 volt AC Class RK5 time delay dual element fuse designed for reliable circuit protection.This fuse features a time-delay characteristic with a minimum 10 second delay at 5 times the rated current, allowing temporary overloads without nuisance blowing. It has a current limiting design with a 200,000 amp interrupt rating, suitable for industrial and commercial applications. The fuse is blade terminal type, rated for 250 VAC and 125 VDC, and meets UL, CSA C22.2, and CE certifications.
- Amperage: 80A
- Voltage Rating: 250 VAC, 125 VDC
- Fuse Class: RK5
- Time Delay: 10 seconds at 5x rated current
- Interrupt Rating: 200 kAIC
- Dual Element Current Limiting Design
- Blade Terminal Mounting
- Certifications: UL, CSA C22.2, CE
- Dimensions: approx. 1.06 inch diameter, 5.88 inch length
- Application: Industrial and commercial circuit protection
Specifications
- Part Number: ECNR80
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECNR Series
- Type : ECNR
- Voltage : 250
- Amperage : 80
- AIC rating : 200kA@250V
- Connection : Rejection Blade
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634507413
- GTIN : 00782634507413
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5 lb
