Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECNR70

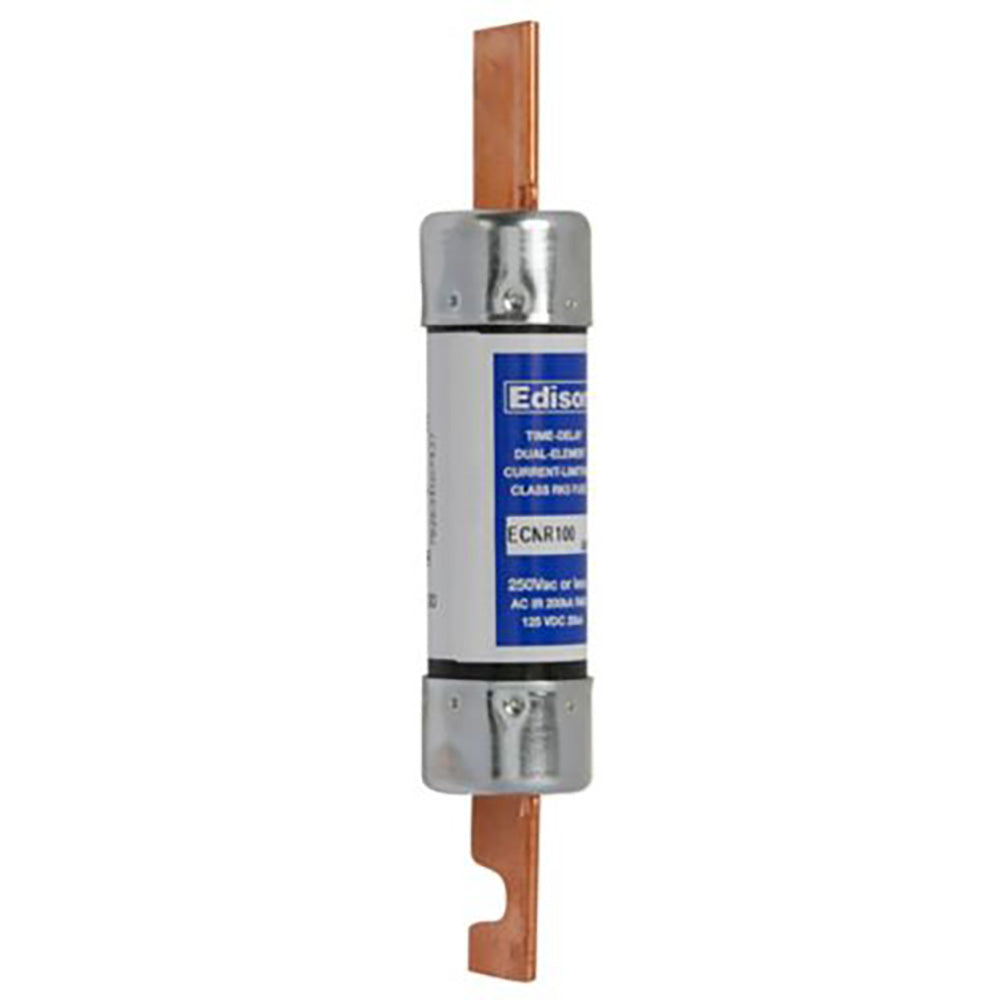

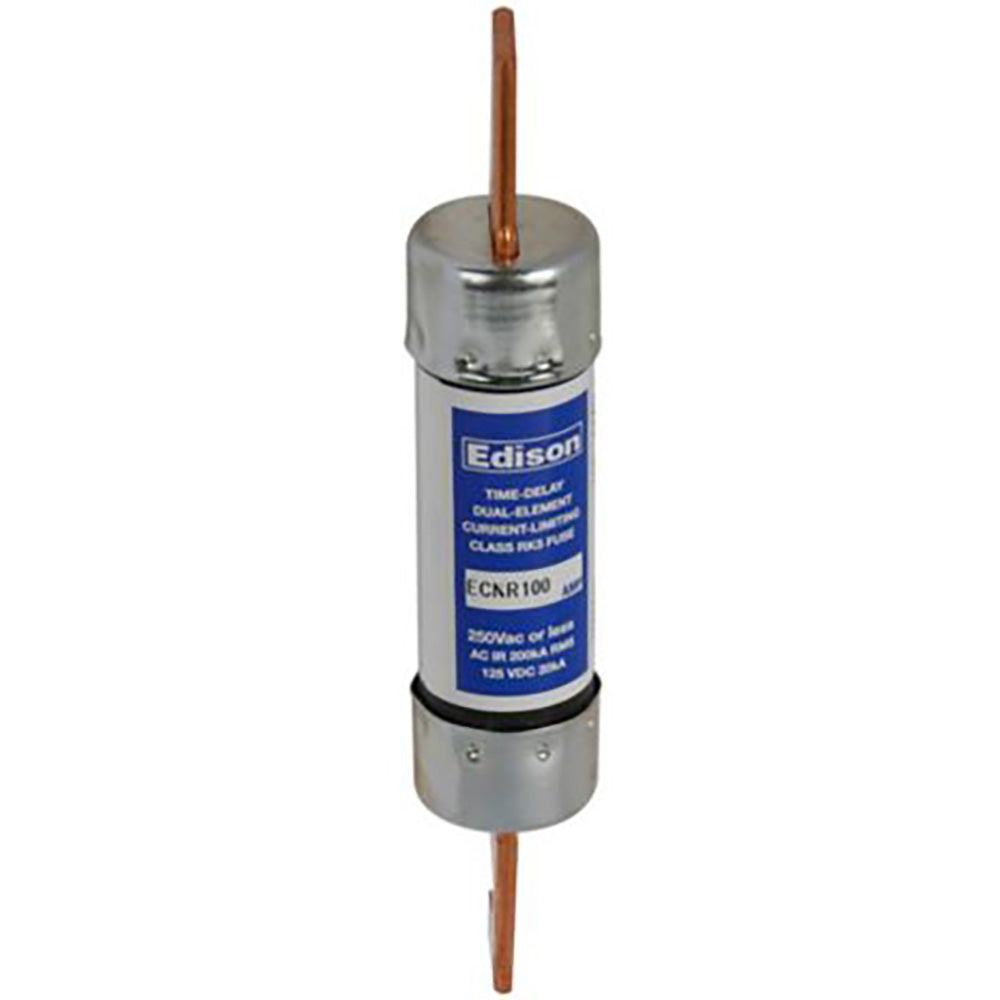

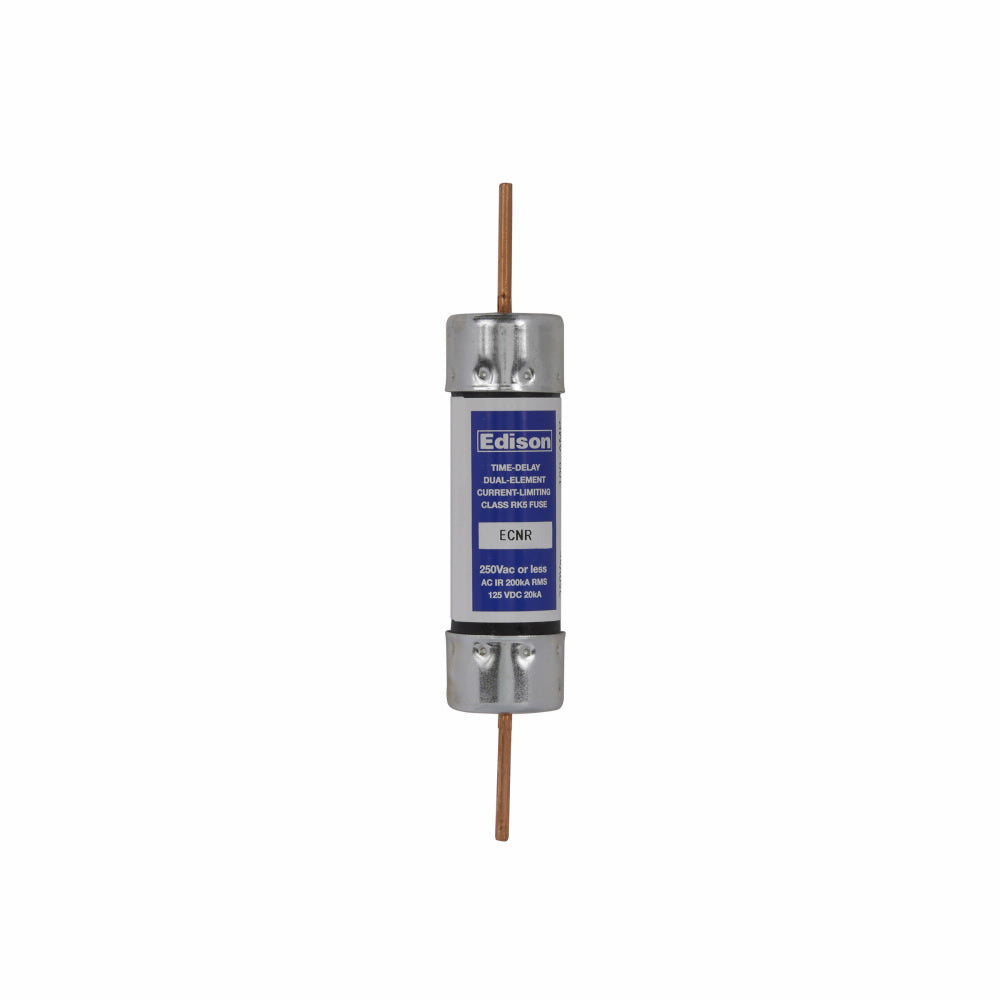

ECNR70 is a 70 Amp, 250 Volt Class RK5 time-delay current limiting fuse by Edison Fuses.This fuse features a dual-element, time-delay design with a 10-second minimum delay at 5 times the rated current, suitable for feeder and branch circuit protection. It has a 200 kA interrupt rating at 250 VAC and 125 VDC, with a knife blade terminal type and UL, CSA, and CE certifications.
- Amperage: 70 Amp
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Class: RK5
- Time-Delay: Dual-element, 10 seconds at 5x rating
- Interrupt Rating: 200 kA AC, 20 kA DC
- Terminal Type: Knife blade
- Length: 5.88 inches
- Diameter: 1.06 inches
- Certifications: UL, CSA C22.2, CE
- Mounting Type: Fuse holder or fuse block
Specifications
- Part Number: ECNR70
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 70
- AIC rating : 200kA@250V
- Connection : Rejection Blade
- Diameter : 1.11
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78263450740
- GTIN : 00782634507406
- Dimensions : 5.88 in x 1.6 in x 1.6 in (Length/Depth x Height x Width)
- Weight : 0.3
