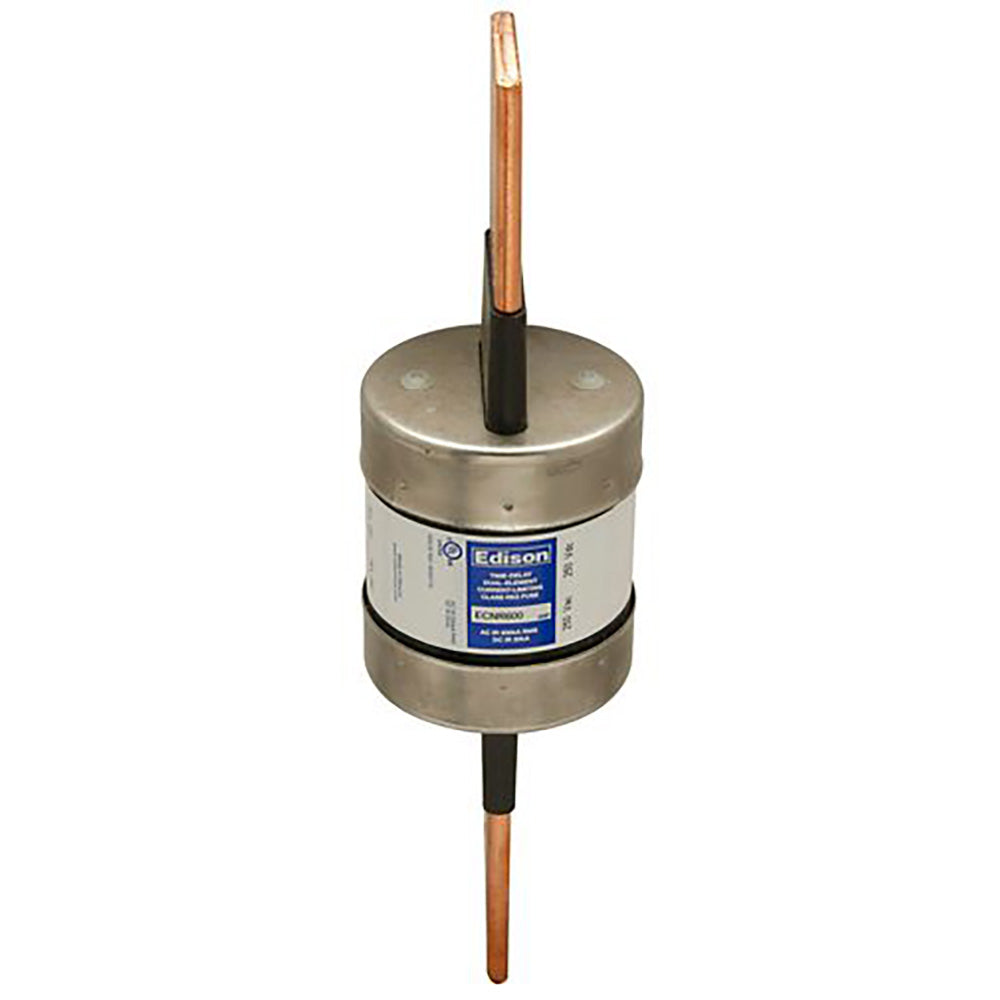

ECNR600 - Edison Fuses 600A 250VAC Class RK5 Time-Delay Current-Limiting Knife Blade Fuse

ECNR600

ECNR600 is a 600 amp, 250 VAC Class RK5 time-delay current-limiting fuse with a knife blade body type designed for feeder and branch protection.ECNR600 features a time-delay curve characteristic and current-limiting capability, suitable for superior overload and cycling applications. It has a 200 kA interrupt rating and is UL listed and CSA certified for safety and reliability.

Key Specifications
• Amperage Rating: 600A
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Class: RK5
• Current Limiting: Yes
• Curve Characteristics: Time-delay
• Body Type: Knife blade
• Interrupt Rating: 200 kAIC
• Size: 2.59 x 10.38 inches (65.8 x 263.7 mm)
• Application: Feeder/branch protection
• Agency Approvals: UL Listed (File # E162363), CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ECNR600
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECNR Series
• Type : ECNR
• Voltage : 250
• Amperage : 600
• AIC rating : 200kA@250V
• Diameter : 2.88
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 00782634507567
• GTIN : 00782634507567
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
