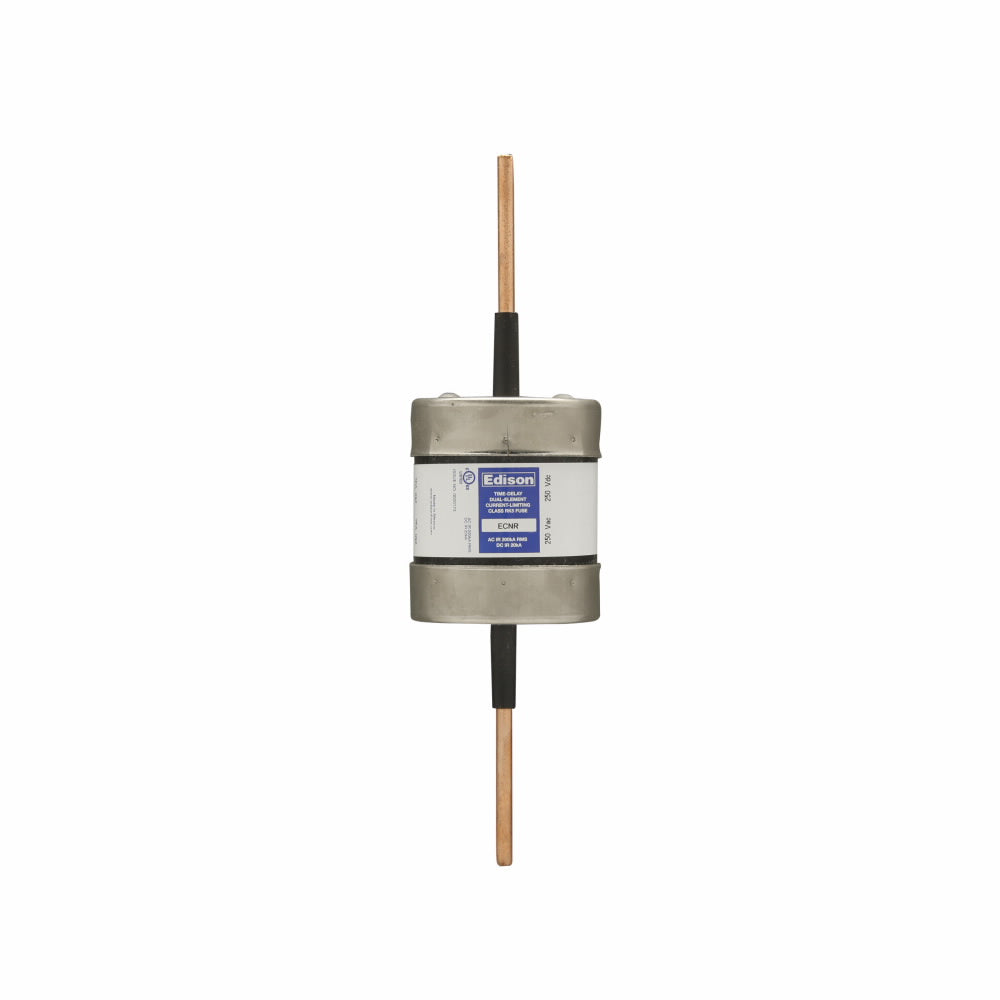

ECNR500 - Edison Fuses 500A 250V Class RK5 Time-Delay Current-Limiting Knife Blade Fuse

ECNR500

ECNR500 is a 500A, 250V Class RK5 time-delay current-limiting fuse by Edison Fuses designed for feeder and branch circuit protection.This ECNR series fuse features a knife blade body type and provides superior overload and cycling capabilities with a high interrupt rating suitable for low voltage applications. It is UL listed and CSA certified, making it reliable for industrial and commercial electrical protection.

• Amperage Rating: 500A
• Voltage Rating: 250 VAC
• Fuse Class: RK5
• Current-Limiting: Yes
• Time-Delay Characteristic
• Body Type: Knife Blade
• Application: Feeder/Branch Protection
• UL Listed (File # E162363)
• CSA Certified (File # 700489)
• Dimensions: 2.59 x 10.38 inches
• Interrupt Rating: 200kA at 250V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECNR500
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECNR Series
• Type : ECNR
• Voltage : 250
• Amperage : 500
• AIC rating : 200kA@250V
• Diameter : 2.88
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634507550
• GTIN : 00782634507550
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
