ECNR5.6 - Edison Class RK5 Time-Delay Fuse 5.6A 250VAC 200kA

ECNR5.6

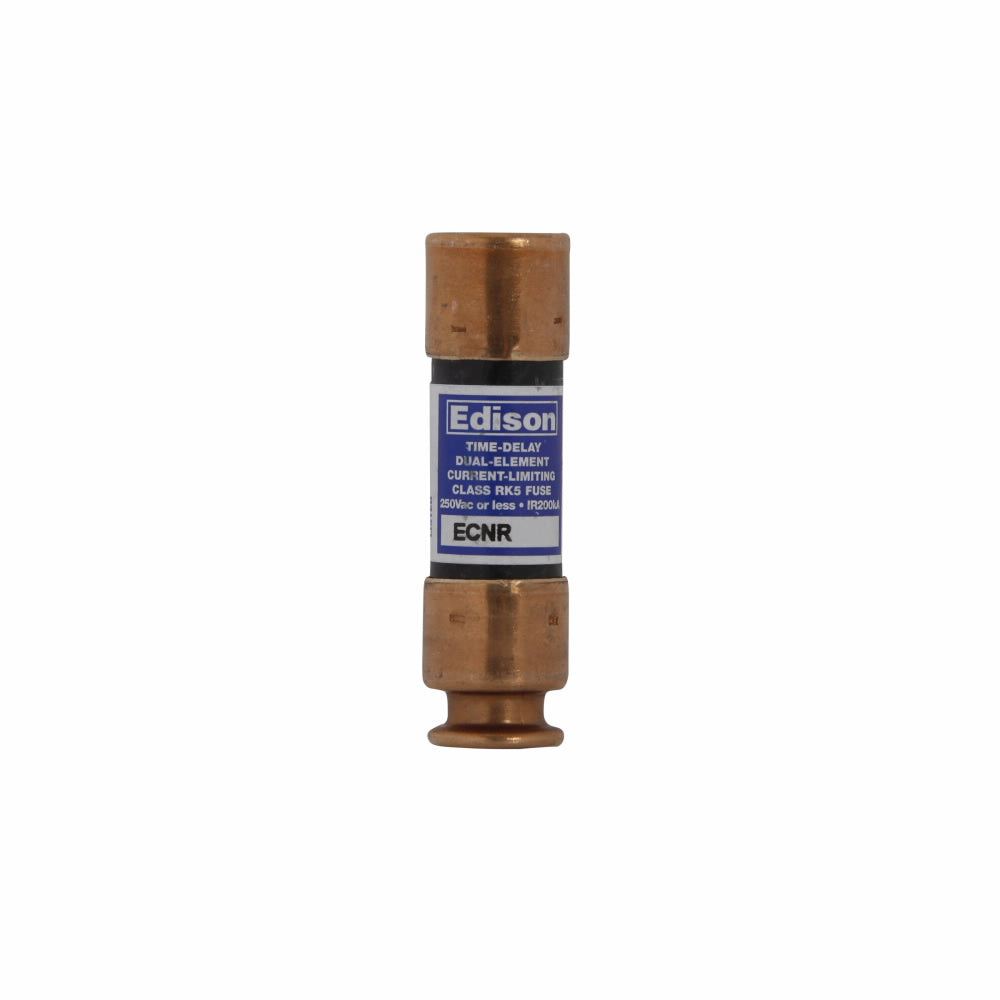

ECNR5.6 is a dual-element, time-delay Class RK5 fuse designed for AC power distribution systems with inductive loads such as motors and transformers. Edison ECNR5.6 fuses provide economical overcurrent protection with superior overload and cycling capabilities and moderate current limitation for component protection. This ferrule-style fuse is rated 5.6 amperes at 250VAC with a 125VDC self-certified rating and delivers a 200,000 RMS symmetrical ampere interrupting rating. The fuse measures 2 inches in overall length with a maximum diameter of 0.56 inches and features a thermoplastic cover with zinc-plated steel screws.

• Amperage Rating: 5.6 Amps
• Voltage Rating: 250VAC / 125VDC
• Class: RK5 (Dual-Element Time-Delay)
• Interrupting Rating: 200,000 RMS Symmetrical Amps
• Overall Length: 2 inches (50.8 mm)
• Maximum Diameter: 0.56 inches (14.2 mm)
• Connection Type: Ferrule Design
• Certifications: UL, CSA C22.2, CE Approved
• Operating Temperature Range: -40 to 120 degrees Celsius
• Flammability Rating: UL 94V0 (blocks), UL 94HB (covers)
• Response Time: Time-Delayed
• Current Limiting: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECNR5.6
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 5.6
• AIC rating : 200kA@250V
• Connection : Ferrule
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 78263450723
• GTIN : 00782634507239
• Dimensions : 2.875 in x 0.625 in x 0.625 in (Length/Depth x Height x Width)
• Weight : 0.115
