Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECNR450

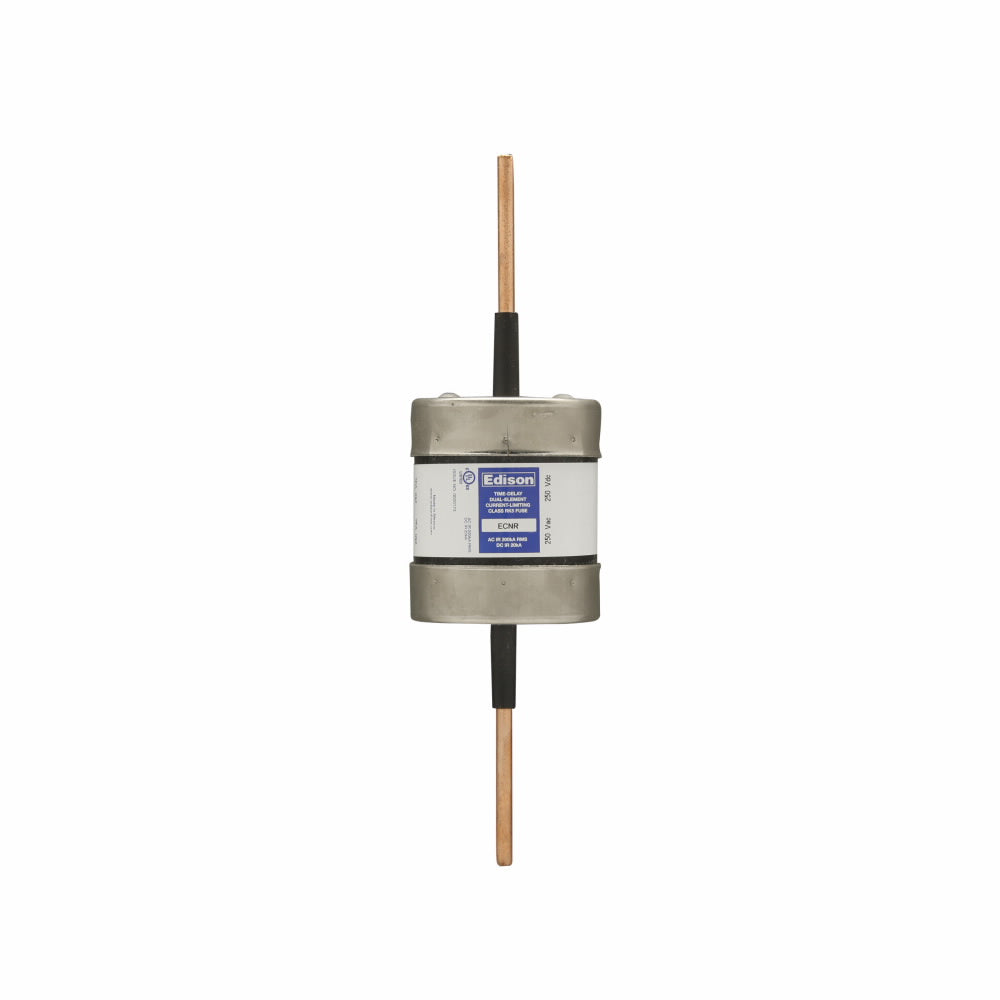

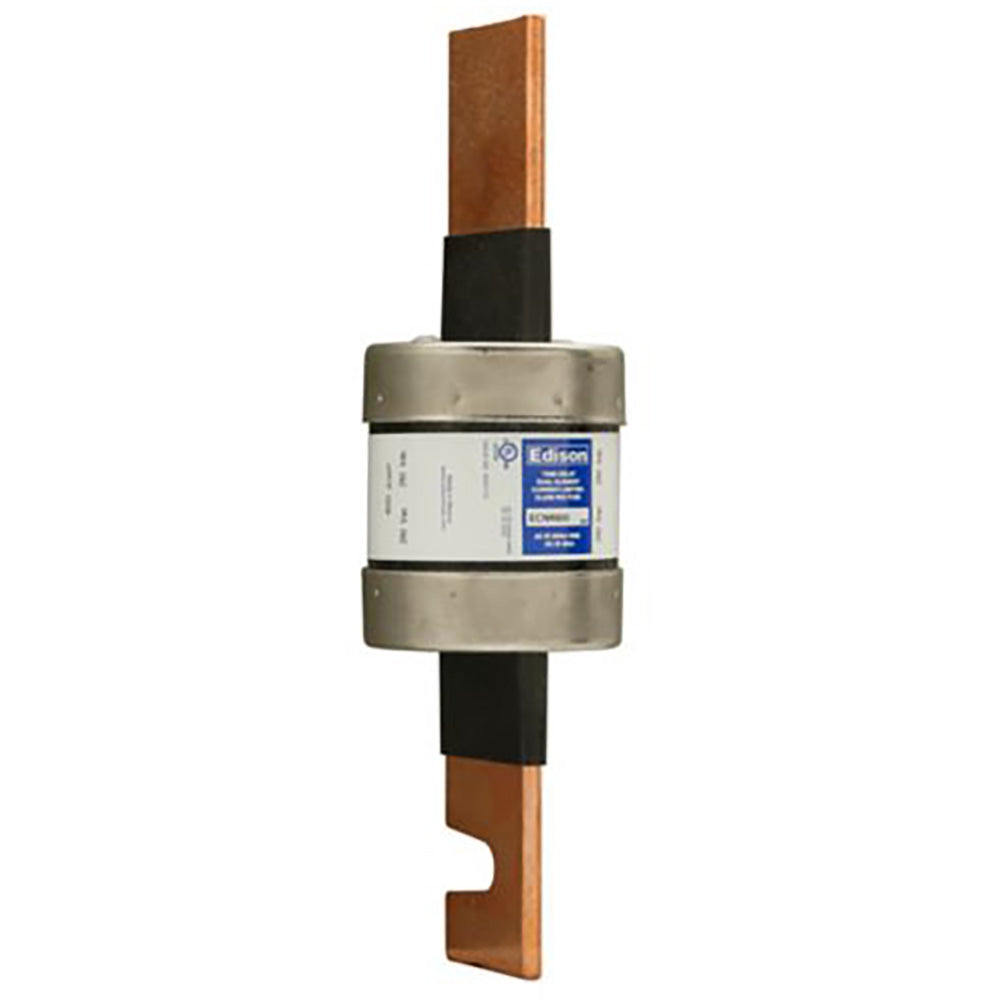

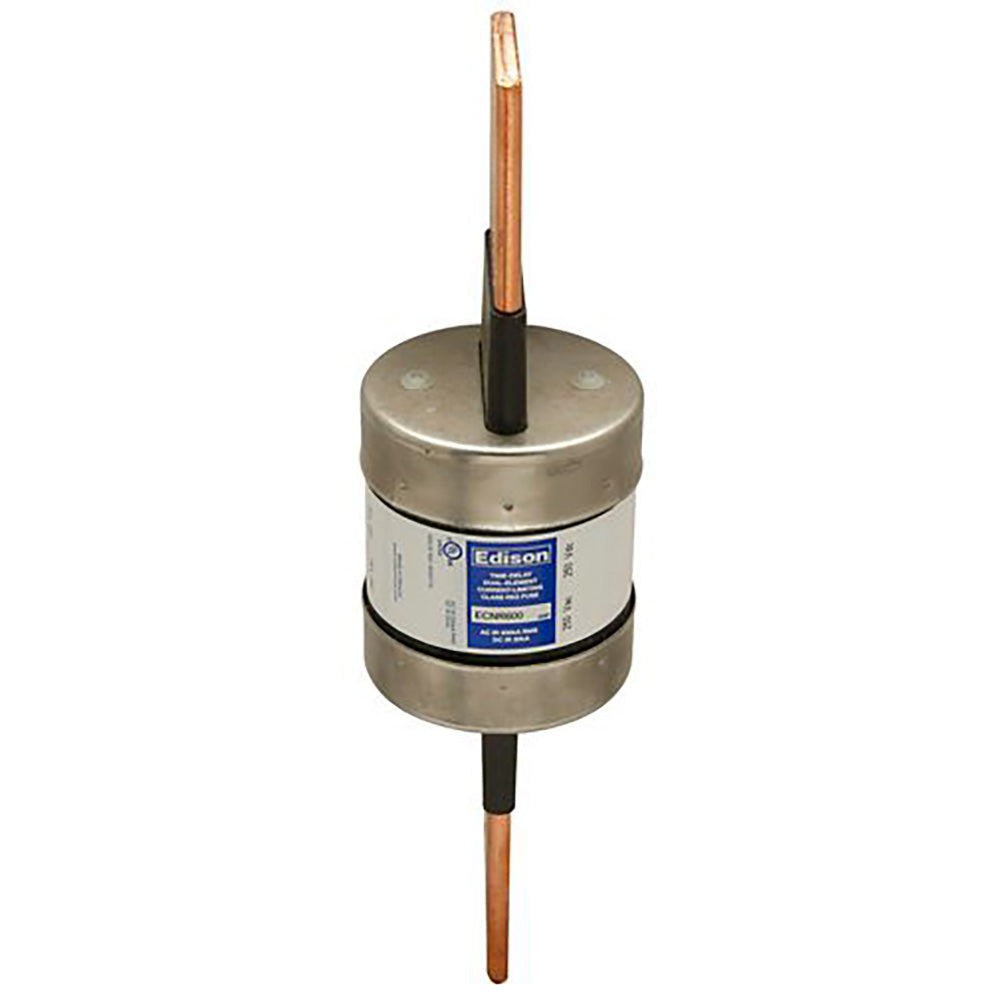

ECNR450 is a Class RK5, time-delay, current-limiting fuse designed for feeder and branch circuit protection applications.The Edison ECNR450 fuse features a dual-element, knife blade design with a 450A amperage rating and 250VAC voltage rating. It provides superior overload and cycling capabilities, making it ideal for industrial and commercial power distribution systems. The fuse is non-indicating and built for reliable, long-term performance in demanding environments.
- Part Number: ECNR450
- Manufacturer: Edison Fuses
- Series: ECNR
- Fuse Class: Class RK5
- Amperage Rating: 450A
- Voltage Rating: 250VAC
- Interrupt Rating: 200kA Symmetrical
- Mounting Type: Knife Blade
- Body Type: 1 Barrel
- Diameter: 2.88 inches
- Length: 10.38 inches
- Certifications: UL Listed, CSA C22.2
Specifications
- Part Number: ECNR450
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECNR Series
- Type : ECNR
- Voltage : 250
- Amperage : 450
- AIC rating : 200kA@250V
- Diameter : 2.88
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634507543
- GTIN : 00782634507543
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5
