Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

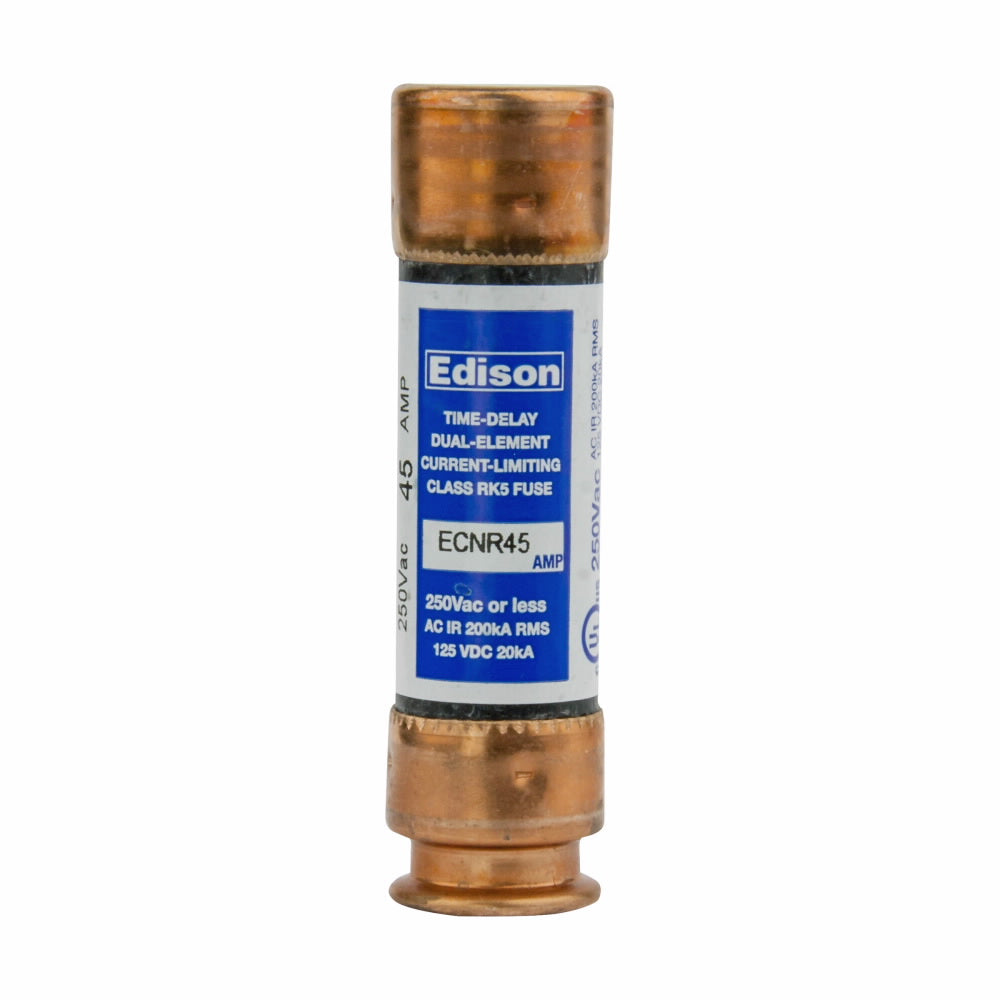

ECNR45
ECNR45 is a 45 amp, 250 volt dual element Class RK5 time-delay current-limiting fuse from Edison Fuses designed for motor and feeder protection.
This fuse features superior overload and cycling capabilities with a ferrule end-to-end mounting type. It provides reliable motor overload, ground fault, and short-circuit protection with a 10 second delay at 500% overload. The ECNR45 is UL and CSA certified and suitable for use in branch circuit and feeder applications.
- Amperage: 45A
- Voltage Rating: 250 VAC / 125 VDC
- Poles: Single pole (ferrule end x ferrule end)
- Mounting Type: Ferrule
- Interrupt Rating: Class RK5 current-limiting
- Series/Frame: ECNR Series
- Trip Unit: Dual element time-delay
- Certifications: UL, CSA C22.2
- Fuse Type: Non-indicating
- Dimensions: Approx. 2.88 inches height
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ECNR45
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECNR Series
- Type : ECNR
- Voltage : 250
- Amperage : 45
- AIC rating : 200kA@250V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634507376
- GTIN : 00782634507376
- Dimensions : 10.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
- Weight : 3.15
