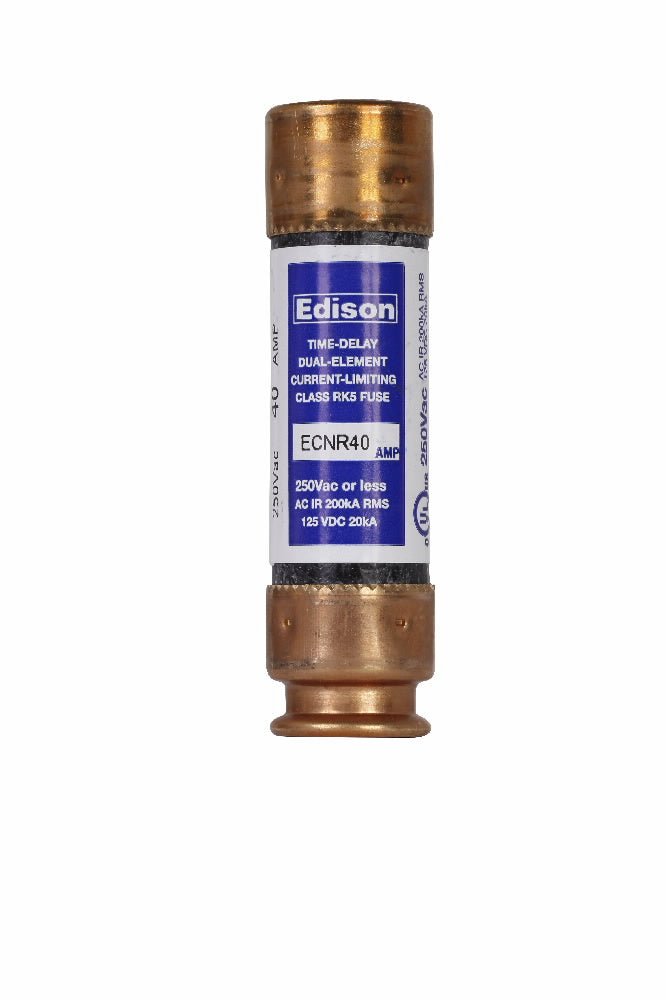

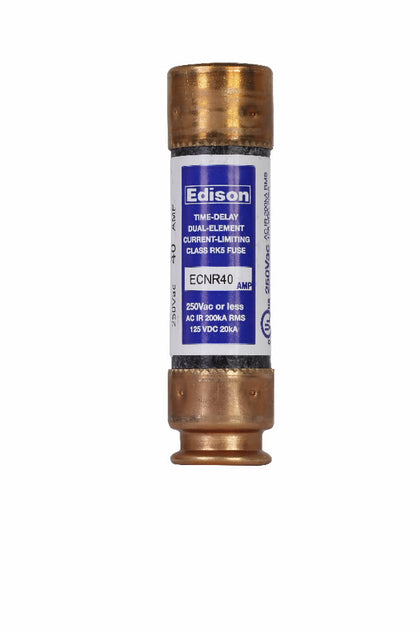

ECNR40 - Edison Fuses 40A 250V Class RK5 Dual-Element Time-Delay Fuse

ECNR40

ECNR40 is a 40 Amp, 250 Volt Class RK5 dual-element time-delay fuse by Edison Fuses designed for motor overload and short-circuit protection.This ECNR40 fuse features a current rating of 40 Amps and a voltage rating of 250 VAC (125 VDC max). It is a dual-element, time-delay type with a minimum 10-second delay at 500% overload, providing reliable motor and circuit protection. The fuse has a high interrupting rating of 200,000 amps and meets UL 248-12 Class RK5 standards. It is ferrule-ended for easy mounting and replacement.

Key Specifications
• Amperage: 40 Amps
• Voltage: 250 VAC / 125 VDC
• Fuse Class: RK5
• Type: Dual-element, time-delay
• Interrupting Rating: 200,000 Amps
• Mounting Type: Ferrule ends
• Dimensions: Approx. 0.75" W x 0.75" D x 3" H
• UL Listed: UL 248-12
• Agency Certifications: UL, cULus, CSA
• Performance: 10 seconds at 500% rated current
• Use: Motor overload, ground fault, short-circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECNR40
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECNR Series
• Type : ECNR
• Voltage : 250
• Amperage : 40
• AIC rating : 200kA@250V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634507369
• GTIN : 00782634507369
• Dimensions : 8.63 in x 2.38 in x 2.38 in (Length/Depth x Height x Width)
• Weight : 1.95
