Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECNR4.5

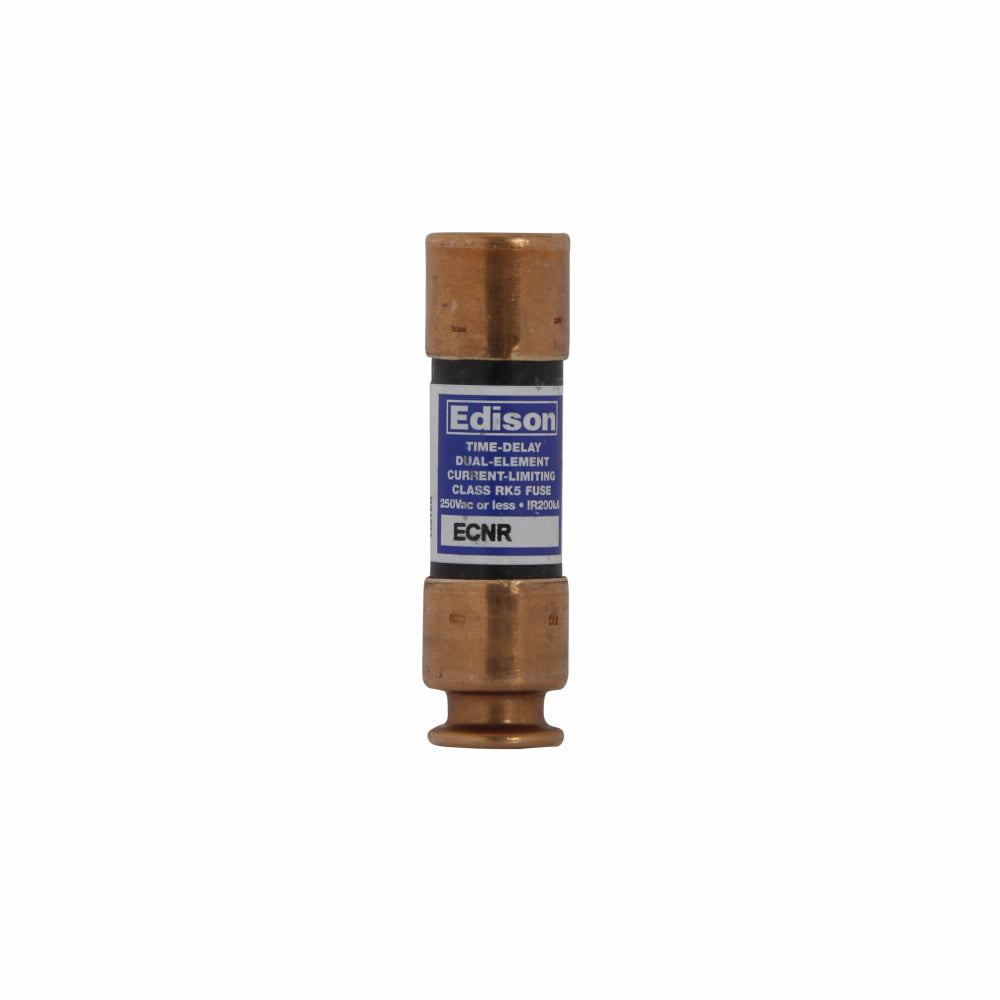

ECNR4.5 is a 4.5 ampere, dual-element time-delay fuse designed for motor protection and current limiting applications.ECNR4.5 features a Class RK5 rating with a voltage capacity of 250 VAC and 125 VDC, offering superior overload and cycling capabilities. It provides reliable motor overload, ground fault, and short-circuit protection with a high interrupt rating of 200 kiloamperes symmetrical. This fuse is non-indicating and mounts in a fuse holder.
- Key Specifications
- Amperage: 4.5 A
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Class: RK5
- Type: Dual-element, time-delay
- Interrupt Rating: 200 kAIC
- Mounting Type: Fuse holder
- Response Time: 8 seconds at 500% overload
- Certifications: UL, CSA C22.2, CE
- Diameter: 0.56 inch
- Length: 2 inch
Specifications
- Part Number: ECNR4.5
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 4.5
- AIC rating : 200kA@250V
- Connection : Ferrule
- Diameter : 2.34
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 078263450721
- GTIN : 00782634507215
- Dimensions : 3 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.11
