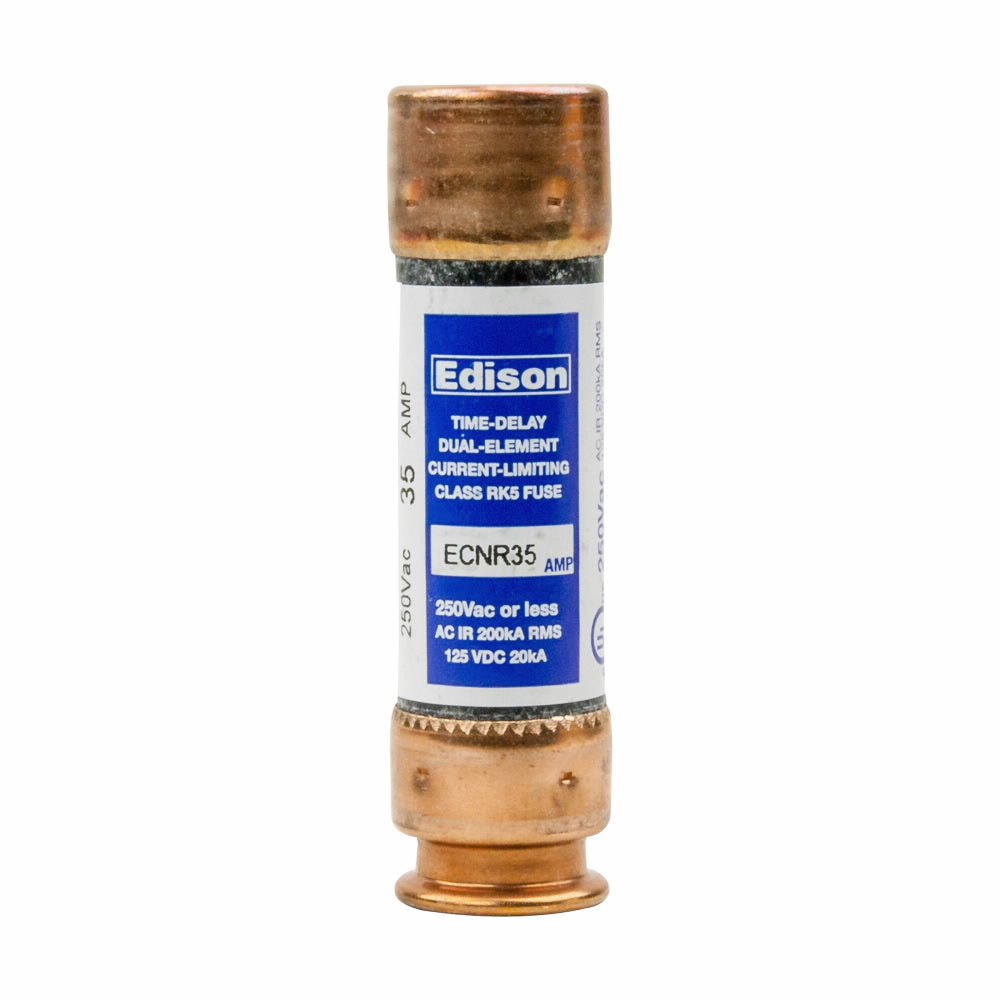

ECNR35 - Edison Fuses 35A 250V Class RK5 Dual-Element Time-Delay Fuse

ECNR35

ECNR35 is a 35 amp, 250 volt Class RK5 dual-element time-delay fuse designed for overload and short-circuit protection.ECNR35 features a current-limiting design with a 200 kA interrupt rating and a minimum 10-second time delay at 500% load. It is suitable for use in low voltage applications requiring reliable motor and circuit protection. The fuse has ferrule ends and complies with industry standards for Class RK5 fuses.

Key Specifications
• Amperage: 35A
• Voltage Rating: 250 VAC, 125 VDC
• Fuse Class: RK5
• Type: Dual-element, time-delay
• Interrupt Rating: 200 kAIC
• Mounting Type: Ferrule ends
• Design: Current limiting
• Trip Unit: Time-delay, 10 seconds at 500% load
• Series/Frame: ECNR
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECNR35
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECNR Series
• Type : ECNR
• Voltage : 250
• Amperage : 35
• AIC rating : 200kA@250V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634507352
• GTIN : 00782634507352
• Dimensions : 8.63 in x 2.38 in x 2.38 in (Length/Depth x Height x Width)
• Weight : 1.95
