Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECNR300

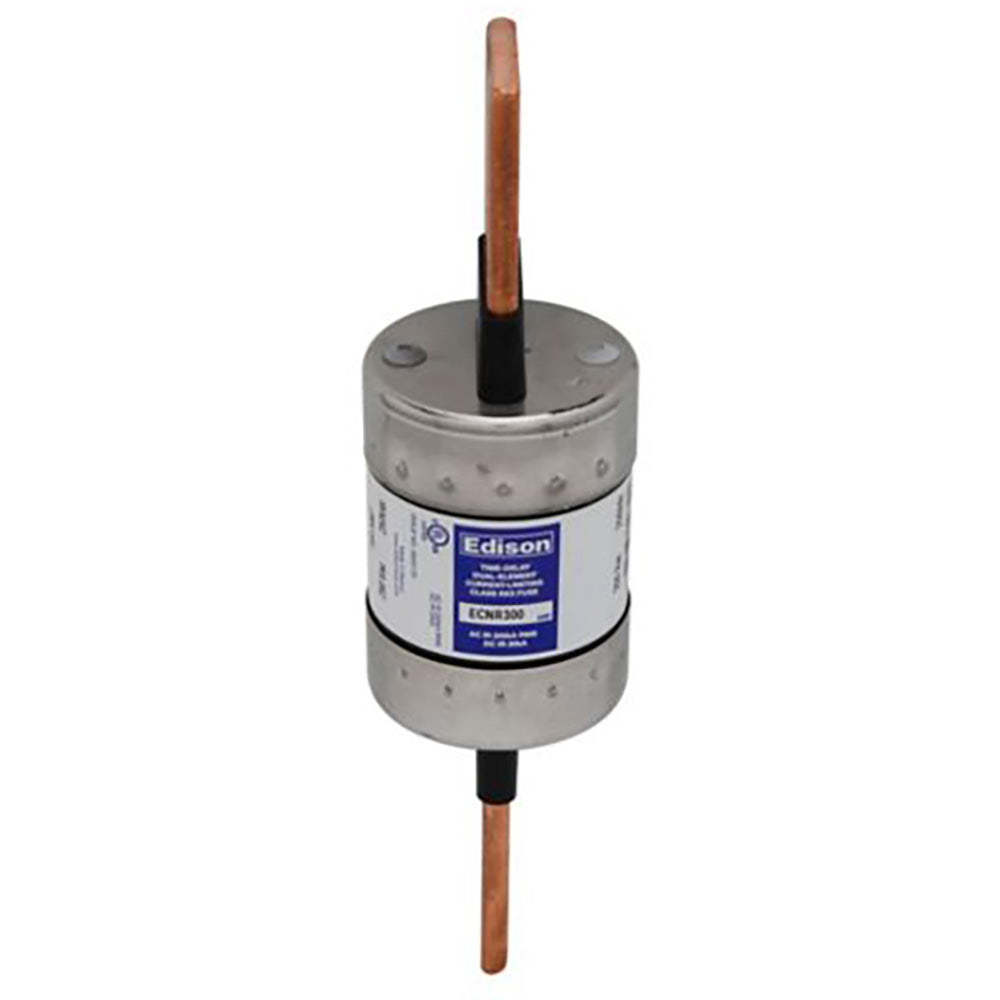

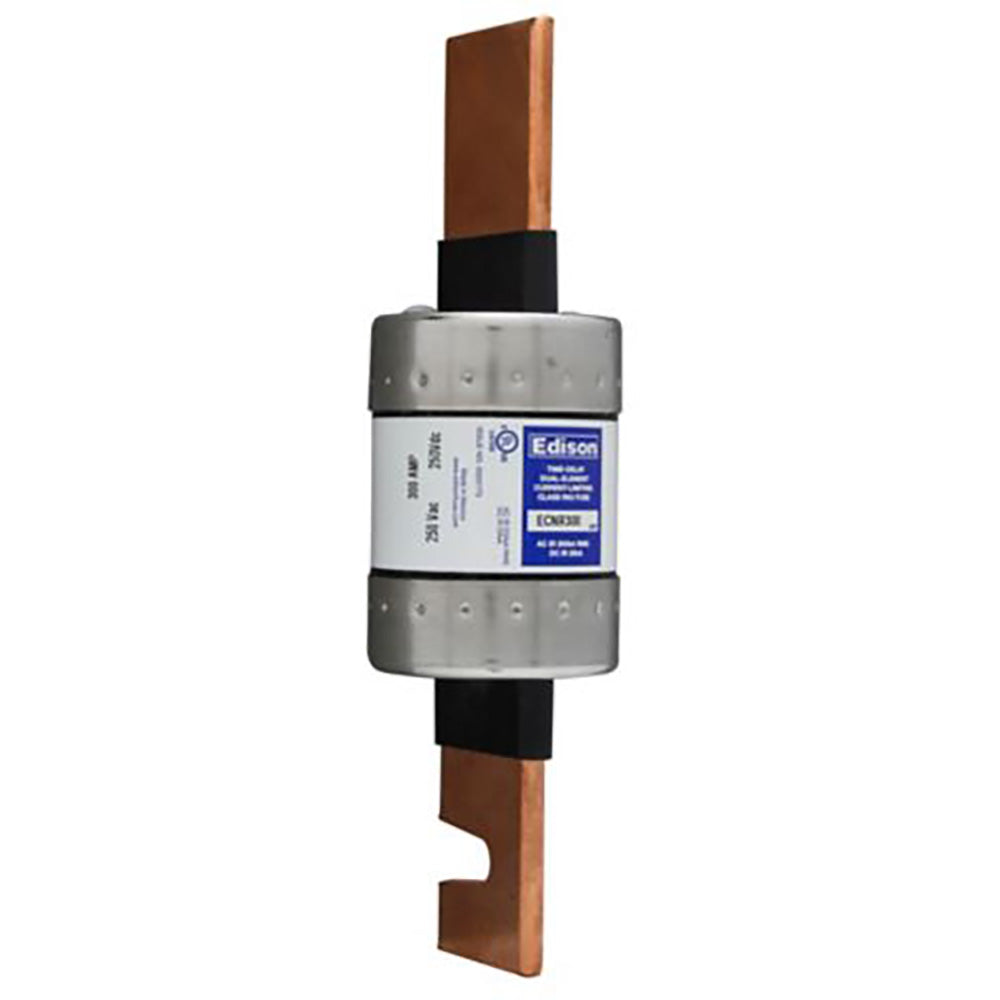

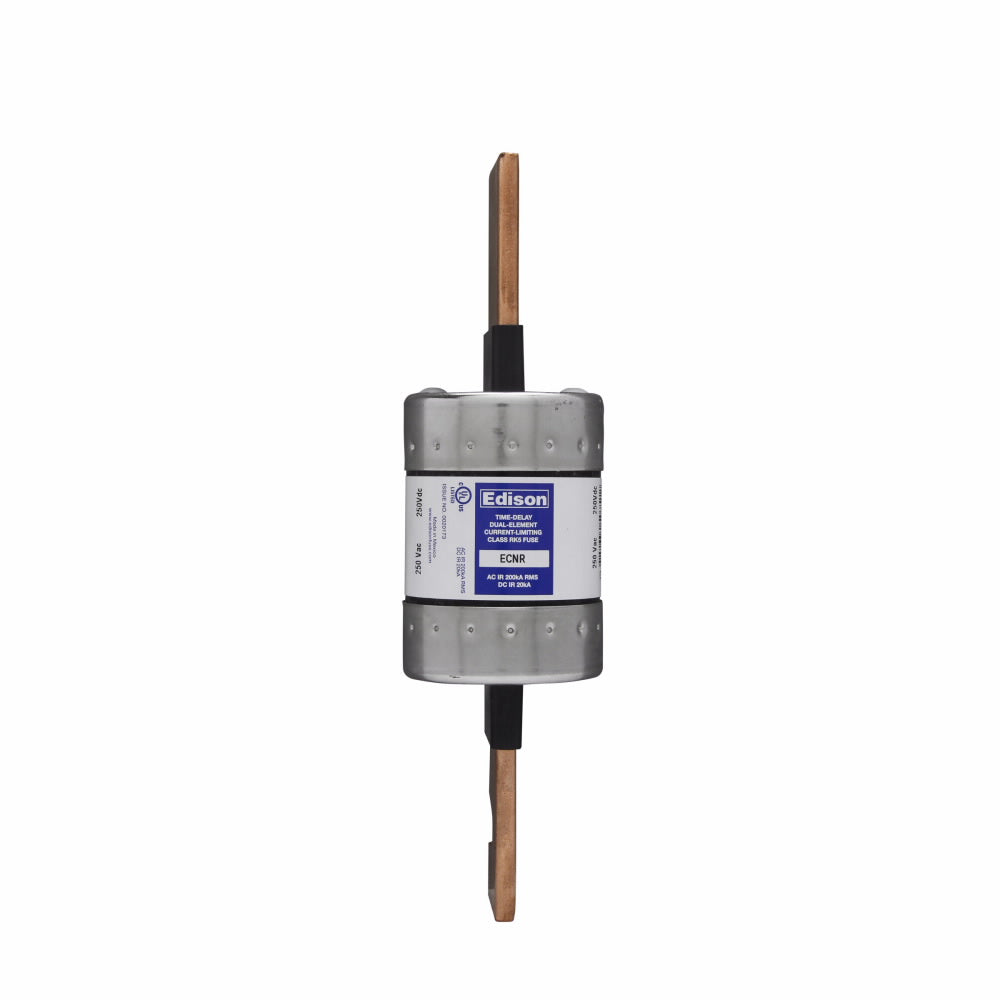

ECNR300 is a 300 amp, 250 volt Class RK5 time-delay current-limiting fuse by Edison Fuses designed for feeder and branch protection.ECNR300 features a knife blade body type and provides superior overload and cycling capabilities. It is UL Listed (File #E162363) and CSA certified, suitable for industrial and commercial circuit protection applications.
- Key Specifications
- Amperage Rating: 300A
- Voltage Rating: 250 VAC
- Fuse Class: RK5
- Time-Delay Curve Characteristics
- Current-Limiting Fuse
- Body Type: Knife Blade
- Dimensions: 2.06 x 8.63 inches (52.3 x 219.2 mm)
- Application: Feeder/Branch Circuit Protection
- UL Listed File #: E162363
- CSA File #: 700489
- Non-indicating Fuse
- RoHS Status: No
Specifications
- Part Number: ECNR300
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 300
- AIC rating : 200kA@250V
- Diameter : 1.61
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78263450751
- GTIN : 00782634507512
- Dimensions : 3 in x 0.625 in x 0.625 in (Length/Depth x Height x Width)
- Weight : 0.113
