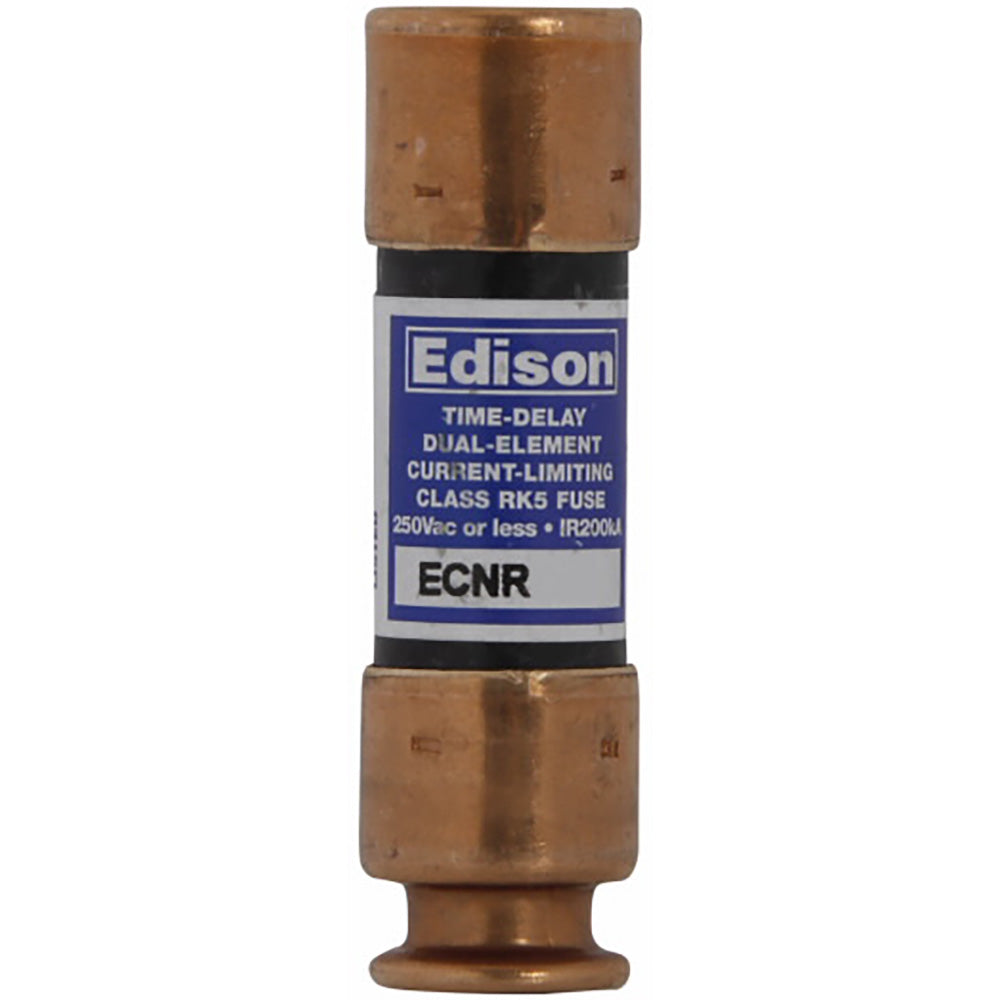

ECNR30 - Eaton Edison 30A 250V Class RK5 Time-Delay Current-Limiting Fuse

ECNR30

ECNR30 is a 30 amp, 250 volt AC / 125 volt DC Class RK5 time-delay current-limiting fuse by Eaton Edison.ECNR30 features dual-element construction providing superior motor overload, ground fault, and short-circuit protection with a 200 kA interrupt rating. It has a response time of 8 seconds at 500% overload, ferrule end connections, and is non-indicating. This fuse is CE marked and designed for reliable performance in industrial and commercial applications.

Key Specifications
• Amperage Rating: 30 A
• Voltage Rating: 250 VAC, 125 VDC
• Interrupt Rating: 200 kAIC
• Class: RK5
• Type: Time-delay, current-limiting
• Response Time: 8 seconds at 500% overload
• Number of Elements: Dual
• Fuse Indicator: Non-indicating
• Mounting Type: Ferrule end x ferrule end
• Certifications: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECNR30
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECNR Series
• Type : ECNR
• Voltage : 250
• Amperage : 30
• AIC rating : 200kA@250V
• Connection : Ferrule
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634507345
• GTIN : 00782634507345
• Dimensions : 8.5 in x 2.35 in x 2.35 in (Length/Depth x Height x Width)
• Weight : 1.84 lb
