Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECNR250

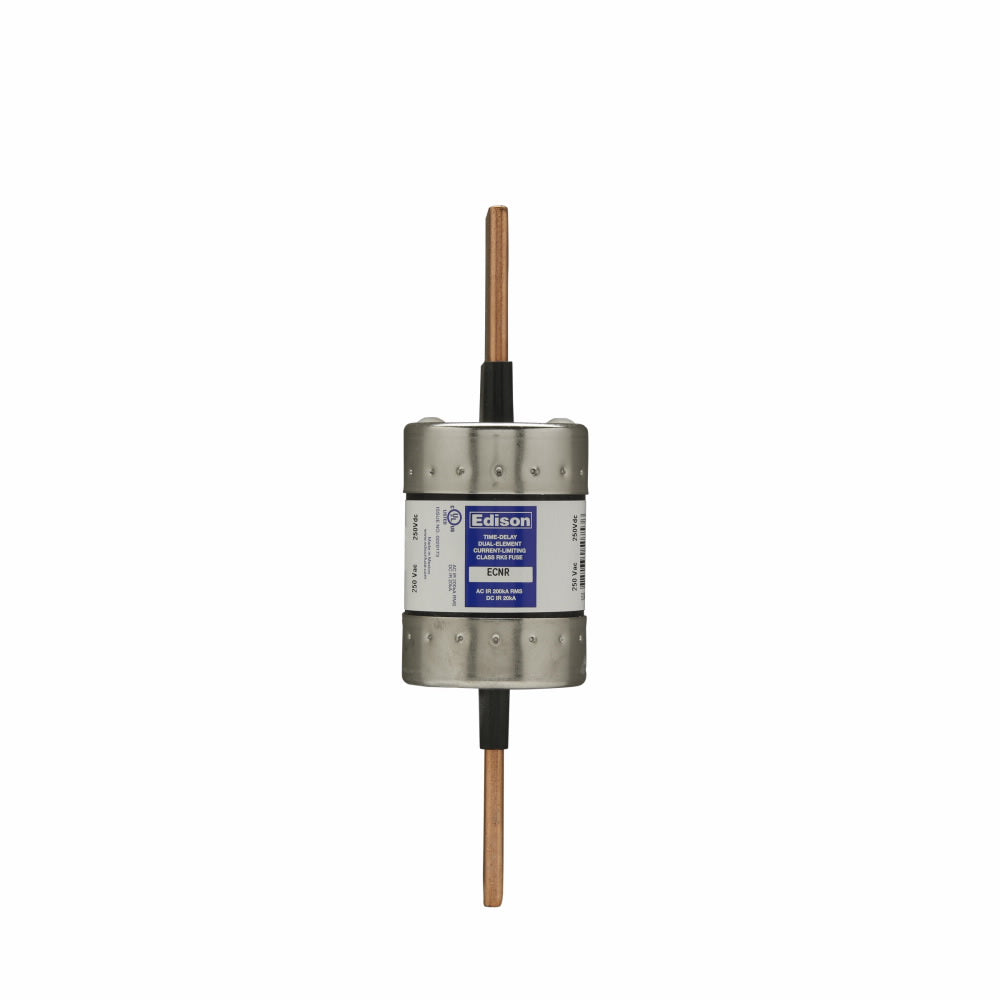

ECNR250 is a 250 amp, 250 volt Class RK5 time delay dual element fuse from Edison Fuses designed for feeder and branch circuit protection.ECNR250 features a current-limiting, time-delay characteristic with a 10 second delay at 500% rated load, blade terminal type, and a 200 kiloampere symmetrical interrupting rating. It measures 2.38 inches in diameter and 8.63 inches in length, UL, CSA C22.2, and CE certified for safety and reliability.
- Key Specifications
- Amperage Rating: 250A
- Voltage Rating: 250 VAC/VDC
- Fuse Class: RK5
- Time Delay: 10 seconds at 500% rated load
- Interrupting Rating: 200 kA symmetrical
- Terminal Type: Blade
- Dimensions: 2.38 inch diameter, 8.63 inch length
- Fuse Type: Dual Element, Current Limiting
- Certifications: UL Listed, CSA C22.2, CE
- Application: Feeder and branch circuit protection
Specifications
- Part Number: ECNR250
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ECNR Series
- Type : ECNR
- Voltage : 250
- Amperage : 250
- AIC rating : 200kA@250V
- Diameter : 2.38
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634507505
- GTIN : 00782634507505
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5
