Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECNR225

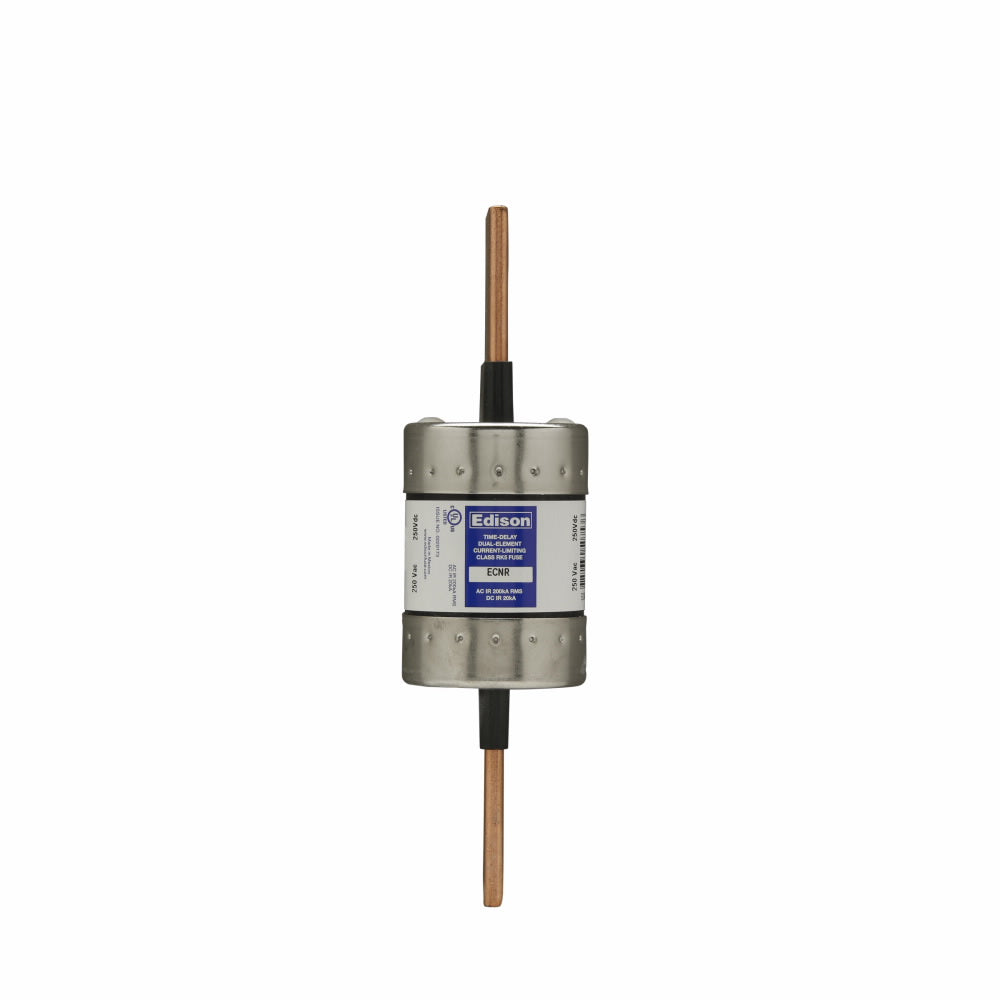

ECNR225 is a Class RK5, time-delay, current-limiting fuse from Edison Fuses, designed for feeder and branch circuit protection in low voltage applications.
This single-barrel fuse offers reliable overcurrent protection with a 225A amperage rating and 250V voltage rating. It features a robust 200kA symmetrical interrupting rating, ensuring safety in high fault current conditions. The ECNR225 is UL, CSA, and CE certified, making it suitable for a wide range of industrial and commercial installations.
-
Key Specifications
- Part Number: ECNR225
- Manufacturer: Edison Fuses
- Amperage: 225A
- Voltage: 250V
- Poles: 1
- Mounting Type: Knife Blade
- Interrupt Rating: 200kA (symmetrical)
- Series/Frame: Class RK5
- Trip Unit: Dual Element, Time-Delay
- Certifications: UL, CSA C22.2, CE
- Diameter: 2.38 inches
- Length: 8.63 inches
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ECNR225
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 225
- AIC rating : 200kA@250V
- Diameter : 2.38
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634507499
- GTIN : 00782634507499
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5
