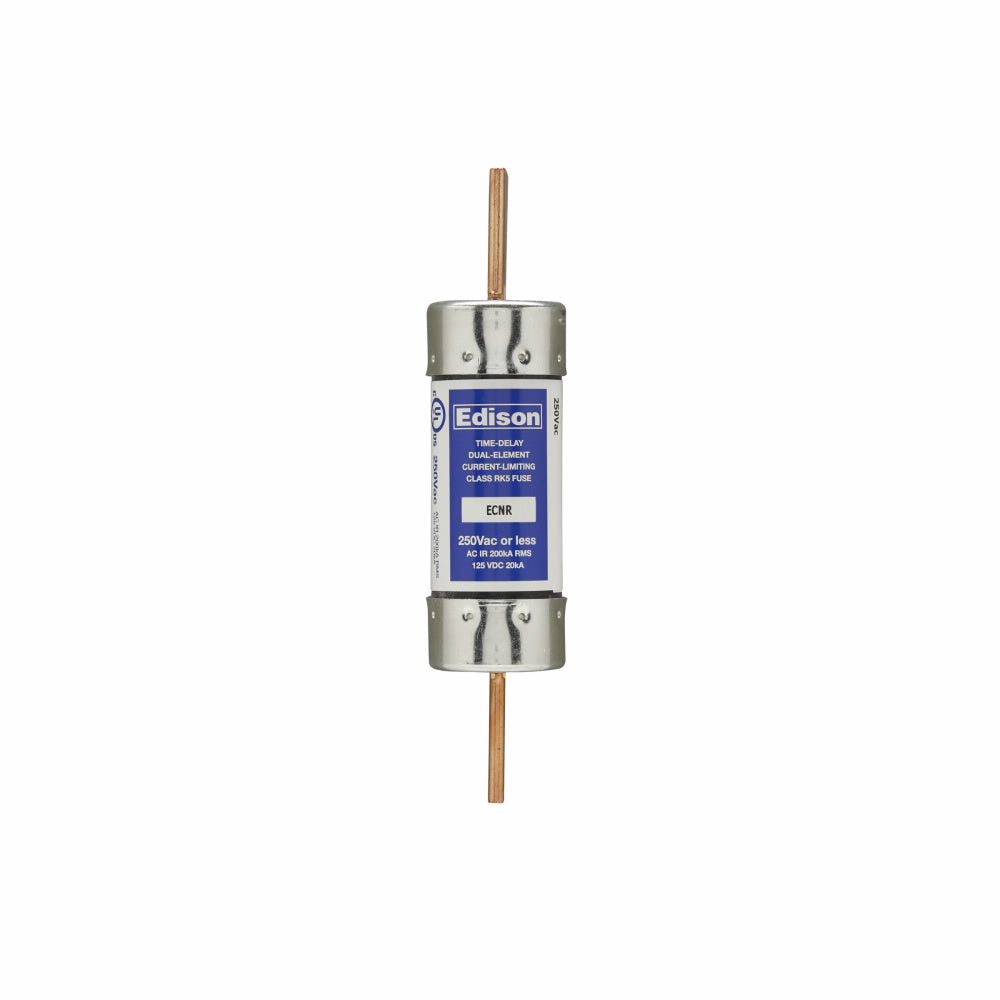

ECNR200 - Edison Fuses 200A 250V Class RK5 Time-Delay Current-Limiting Fuse

ECNR200

ECNR200 is a 200 amp time-delay current-limiting fuse from Edison Fuses, designed for reliable overload and cycling protection.This Class RK5 fuse features a dual-element design with blade end x blade end connections, rated for 250 VAC and 125 VDC operation. It provides a 10 second response time at 500% overload and a high interrupt rating of 200 kAIC, suitable for feeder and branch circuit protection. The fuse is non-indicating and CE marked for compliance.

• Amperage Rating: 200 A
• Voltage Rating: 250 VAC, 125 VDC
• Class: RK5
• Fuse Type: Time-Delay, Current-Limiting
• Number of Elements: Dual
• Connection Type: Blade end x blade end
• Interrupt Rating: 200 kAIC
• Response Time: 10 seconds at 500% overload
• Fuse Indicator: Non-indicating
• Certifications: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECNR200
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECNR Series
• Type : ECNR
• Amperage : 200
• AIC rating : 200kA@250V
• Connection : Rejection Blade
• Diameter : 1.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634507482
• GTIN : 00782634507482
• Dimensions : 8.63 in x 2.38 in x 2.38 in (Length/Depth x Height x Width)
• Weight : 1.95
