ECNR20 - Edison Fuses 20A 250V Class RK5 Time-Delay Dual Element Fuse

ECNR20

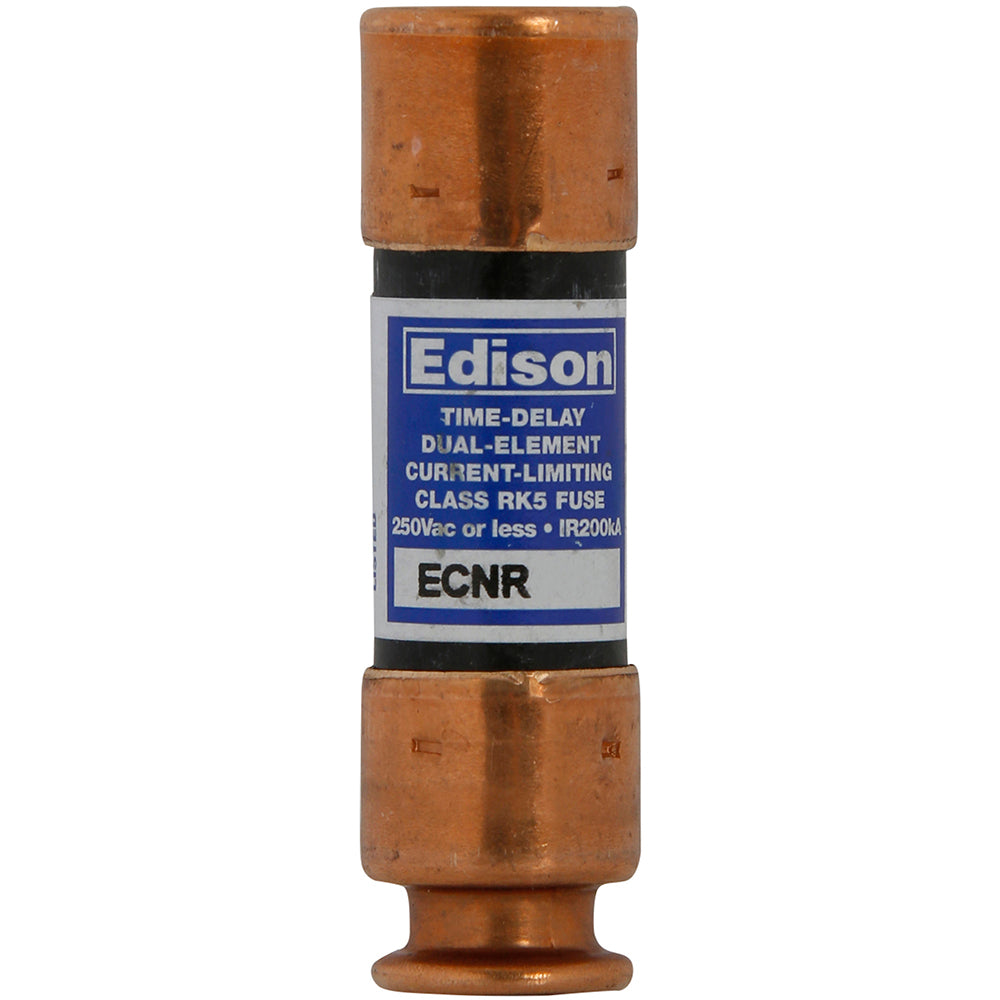

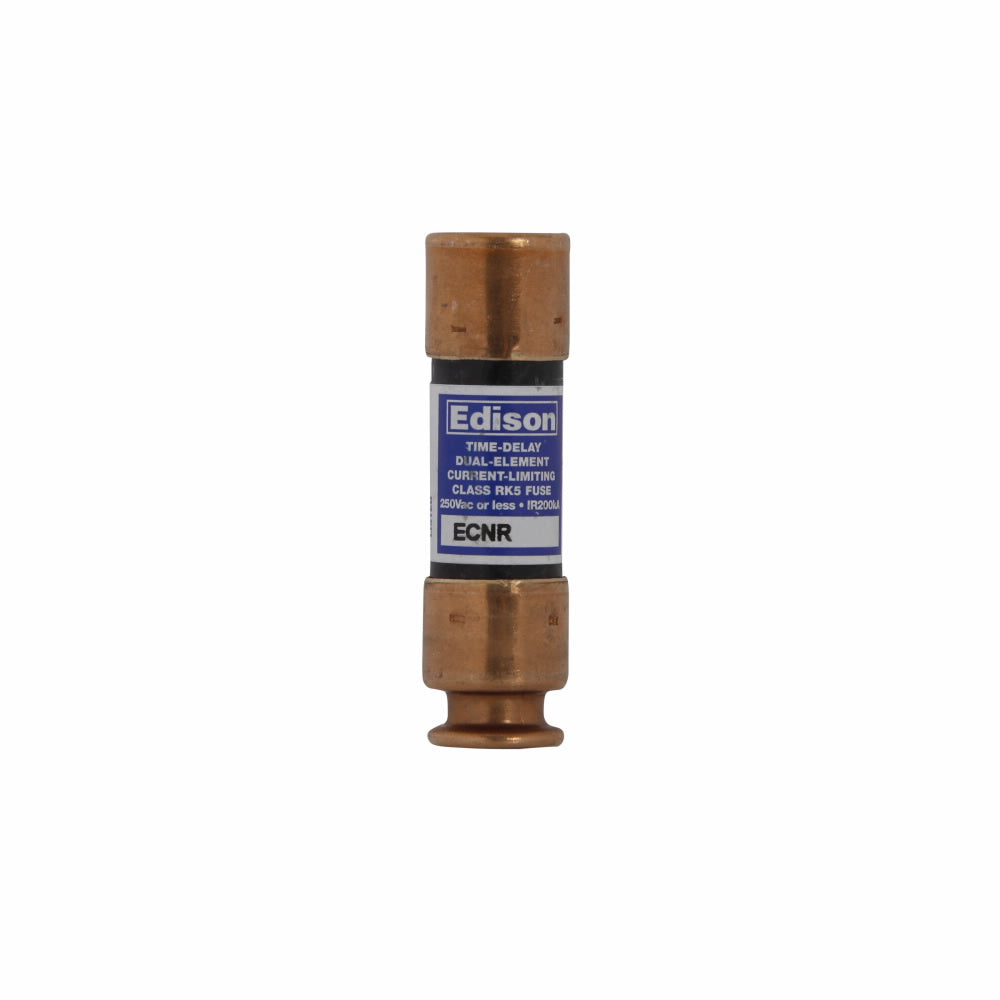

ECNR20 is a 20 amp, 250 volt AC, Class RK5 time-delay dual-element fuse designed for motor overload, ground fault, and short-circuit protection.This fuse features a 200 kA interrupt rating, 8 second response time at 500% overload, and non-indicating ferrule ends. It is suitable for feeder and branch circuit protection in AC power distribution systems and offers superior overload and cycling capabilities. The ECNR20 is UL listed, CSA certified, and CE marked.

Key Specifications
• Amperage Rating: 20 A
• Voltage Rating: 250 Vac, 125 Vdc
• Interrupt Rating: 200 kAIC
• Class: RK5
• Fuse Type: Dual-element, time-delay
• Response Time: 8 seconds at 500% rated current
• Fuse Indicator: Non-indicating
• Mounting Type: Ferrule end x ferrule end
• Certifications: UL Listed, CSA Certified, CE Marked
• Dimensions: 0.56 inch diameter, 2 inch length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECNR20
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECNR Series
• Type : ECNR
• Voltage : 250
• Amperage : 20
• AIC rating : 200kA@250V
• Connection : Ferrule
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634507321
• GTIN : 00782634507321
• Dimensions : 7.13 in x 1.56 in x 1.56 in (Length/Depth x Height x Width)
• Weight : 0.85
