Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

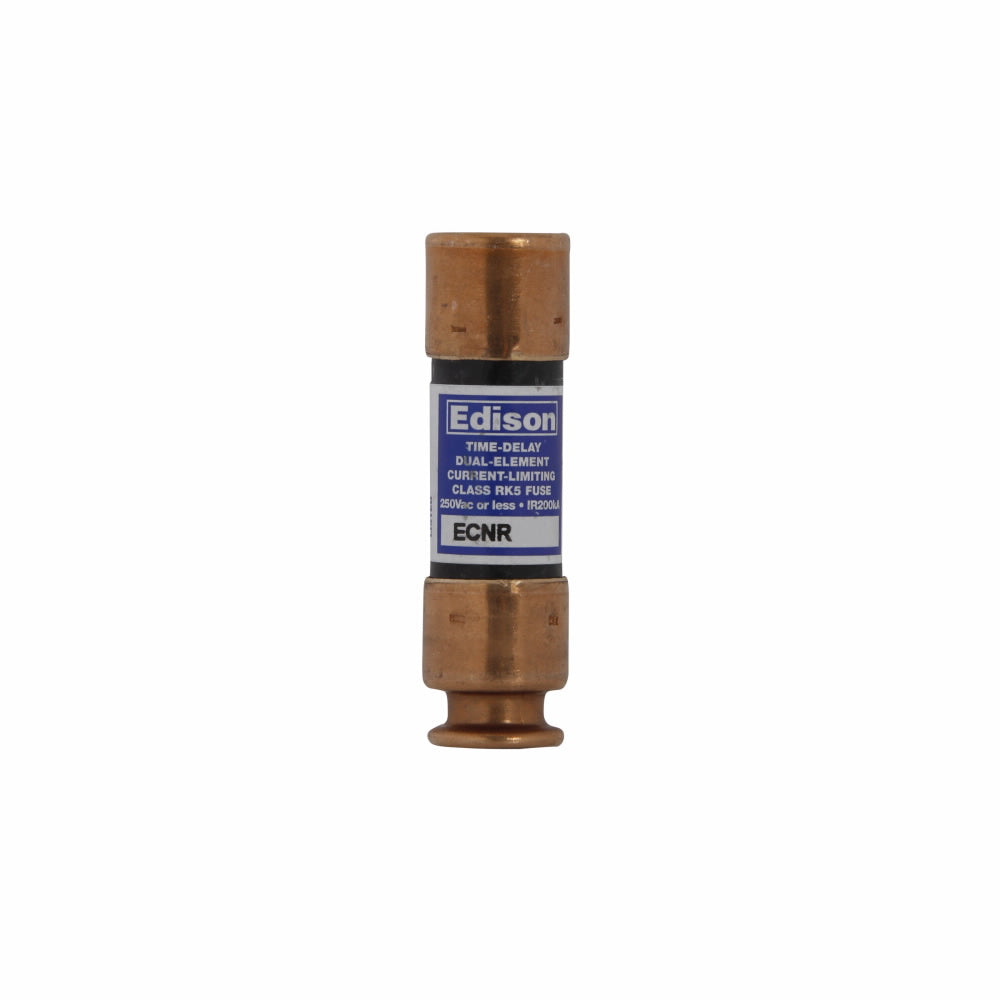

ECNR2
ECNR2 is a Class RK5 dual element time delay fuse designed for reliable overcurrent protection in a variety of electrical applications. This Edison fuse features a 2A current rating, 250VAC and 125VDC voltage ratings, and a robust 200kA interrupting rating. Its dual element construction provides superior overload and cycling capabilities, making it ideal for motor, transformer, and general-purpose circuit protection.
- Part Number: ECNR2
- Manufacturer: Edison Fuses
- Series: ECNR
- Current Rating: 2A
- Voltage Rating: 250VAC, 125VDC
- Interrupting Rating: 200kA
- Fuse Type: Class RK5
- Response: Time Delay (8 sec at 500% load)
- Terminal Type: Ferrule
- Dimensions: 0.56" diameter x 2" length
- Approvals: UL, CSA C22.2, CE
- Mounting Type: Ferrule (Ferrule Mount)
Specifications
- Part Number: ECNR2
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 2
- AIC rating : 200kA@250V
- Connection : Ferrule
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78263450714
- GTIN : 00782634507147
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5
