ECNR150 - Edison Fuses 150A 250V Class RK5 Dual Element Time-Delay Current-Limiting Fuse

ECNR150

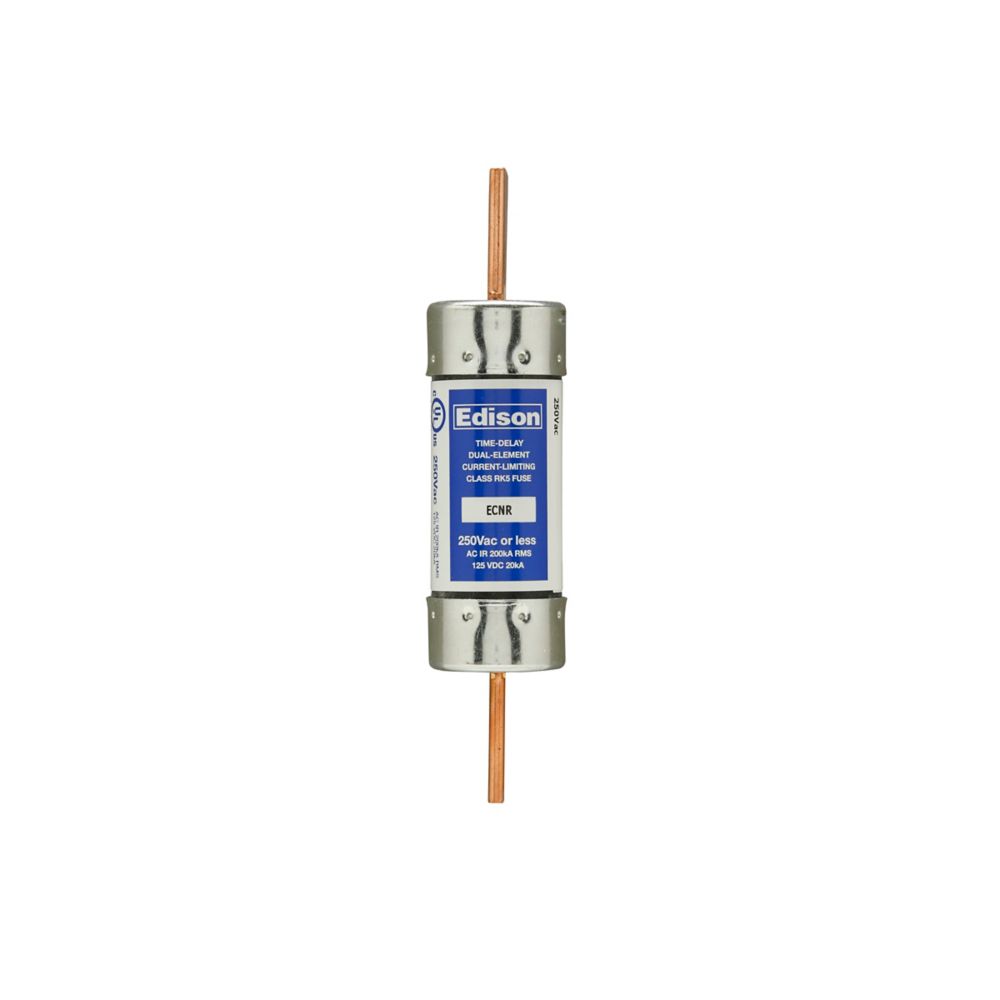

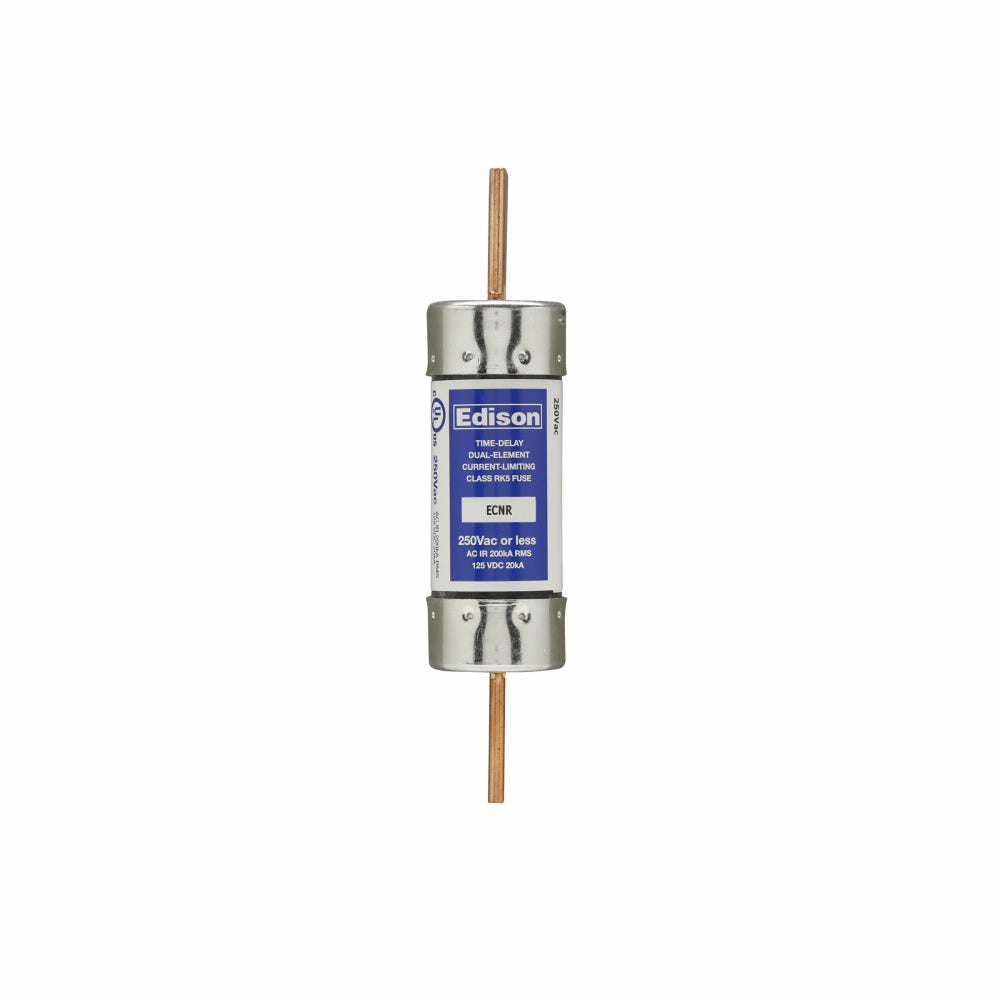

ECNR150 is a dual element, time-delay, current-limiting Class RK5 fuse designed for reliable circuit protection in demanding applications. This Edison Fuses product features a 150A amperage rating and is rated for 250V AC or 125V DC, making it suitable for a wide range of industrial and commercial power systems. The fuse is non-indicating and features blade end x blade end connections for secure mounting. Engineered for superior overload and cycling capabilities, the ECNR150 offers a 10-second response time at 500% load and a 200 kAIC interrupt rating. Its dual element construction provides robust protection for motors, transformers, and other sensitive equipment. The fuse is designed for use in standard fuse blocks and is compatible with most Class RK5 fuse holders.

• Amperage Rating: 150A
• Voltage Rating: 250V AC, 125V DC
• Interrupt Rating: 200 kAIC
• Class: Class RK5
• Response Time: 10 seconds at 500% load
• Mounting Type: Blade end x blade end
• Number of Elements: Dual
• Indicator Type: Non-indicating
• Series: ECNR
• Standards: UL, CSA C22.2, CE
• Dimensions: 7.13 in length, 1.56 in diameter
• Weight: 0.5 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECNR150
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECNR Series
• Type : ECNR
• Voltage : 250
• Amperage : 150
• AIC rating : 200kA@250V
• Connection : Rejection Blade
• Diameter : 1.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634507468
• GTIN : 00782634507468
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
