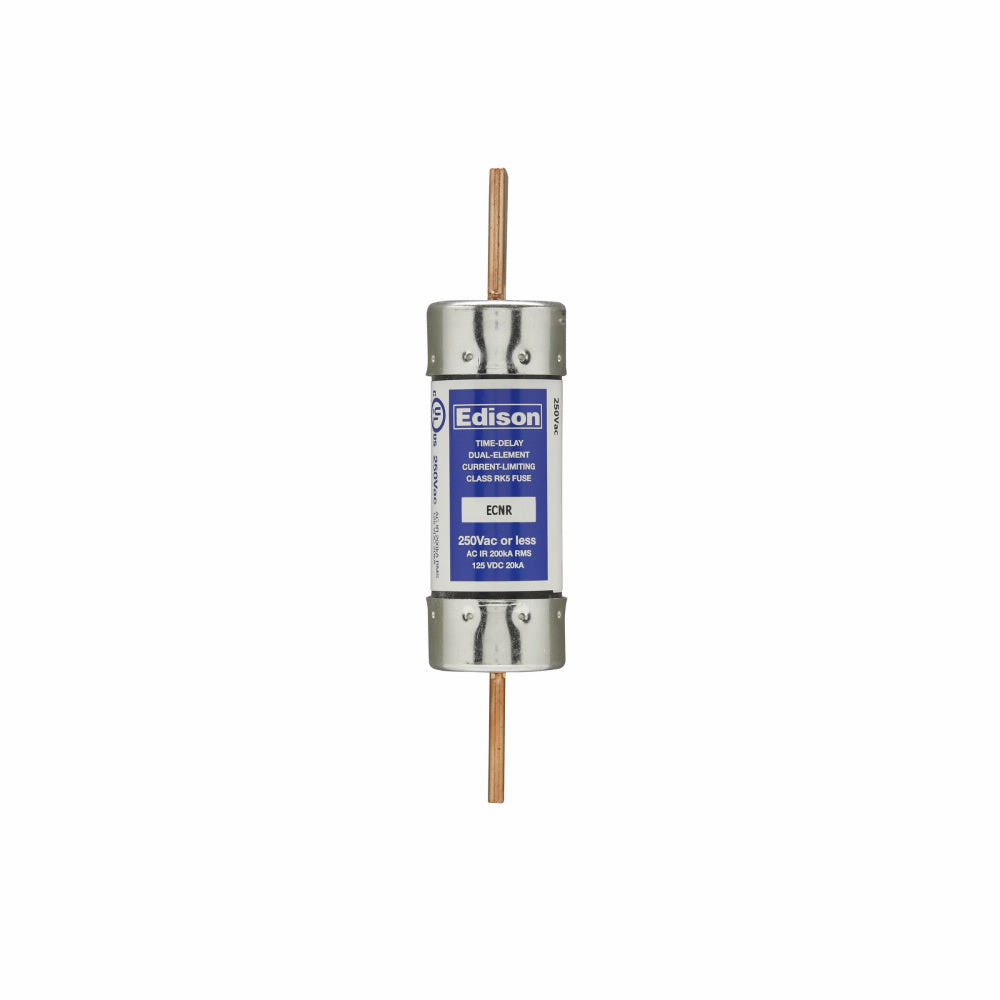

ECNR110 - Edison Fuses 110A 250V Class RK5 Time-Delay Current-Limiting Fuse Dual Element

ECNR110

ECNR110 is a 110 amp, 250 volt Class RK5 time-delay current-limiting fuse from Edison Fuses designed for superior overload and cycling capabilities.ECNR110 features a dual-element design with blade end connections, providing a 10 second delay at 500% overload and a 200 kA interrupt rating. It is rated for 250 VAC and 125 VDC operation, non-indicating, and CE marked for compliance.

Key Specifications
• Amperage Rating: 110 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 200 kAIC
• Class: RK5
• Fuse Type: Time-delay current-limiting
• Number of Elements: Dual
• Connection Type: Blade end x blade end
• Response Time: 10 seconds at 500% overload
• Fuse Indicator: Non-indicating
• Certifications: CE Marked
• Physical Size: 1.56 inch diameter x 7.13 inch length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECNR110
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ECNR Series
• Type : ECNR
• Voltage : 250
• Amperage : 110
• AIC rating : 200kA@250V
• Connection : Rejection Blade
• Diameter : 1.56
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 782634507444
• GTIN : 00782634507444
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
