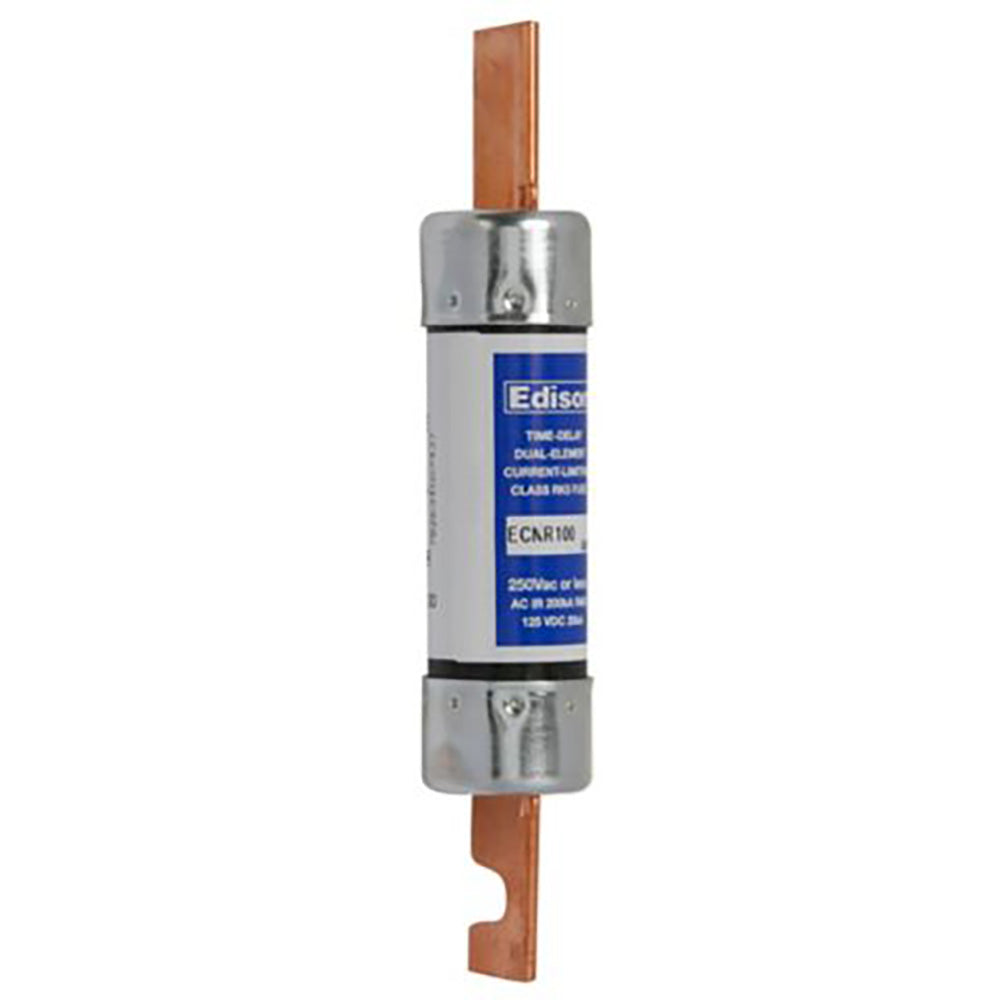

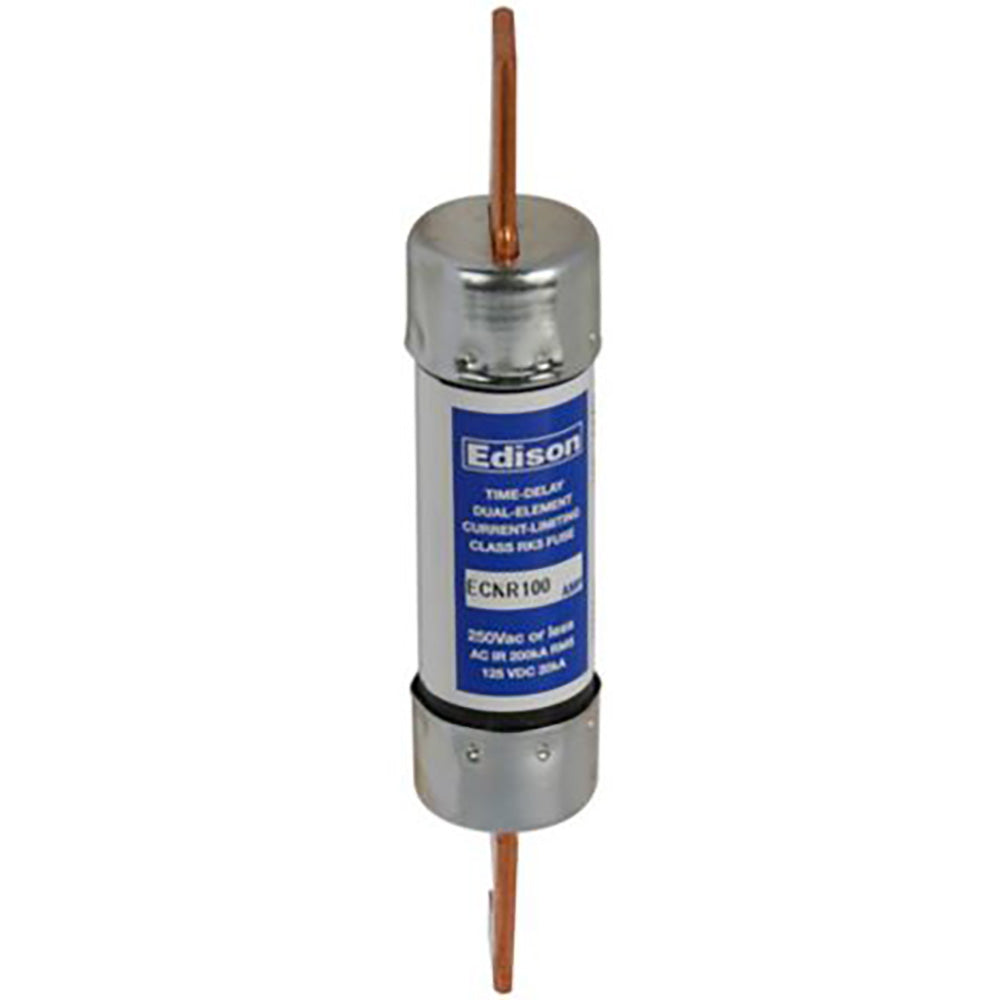

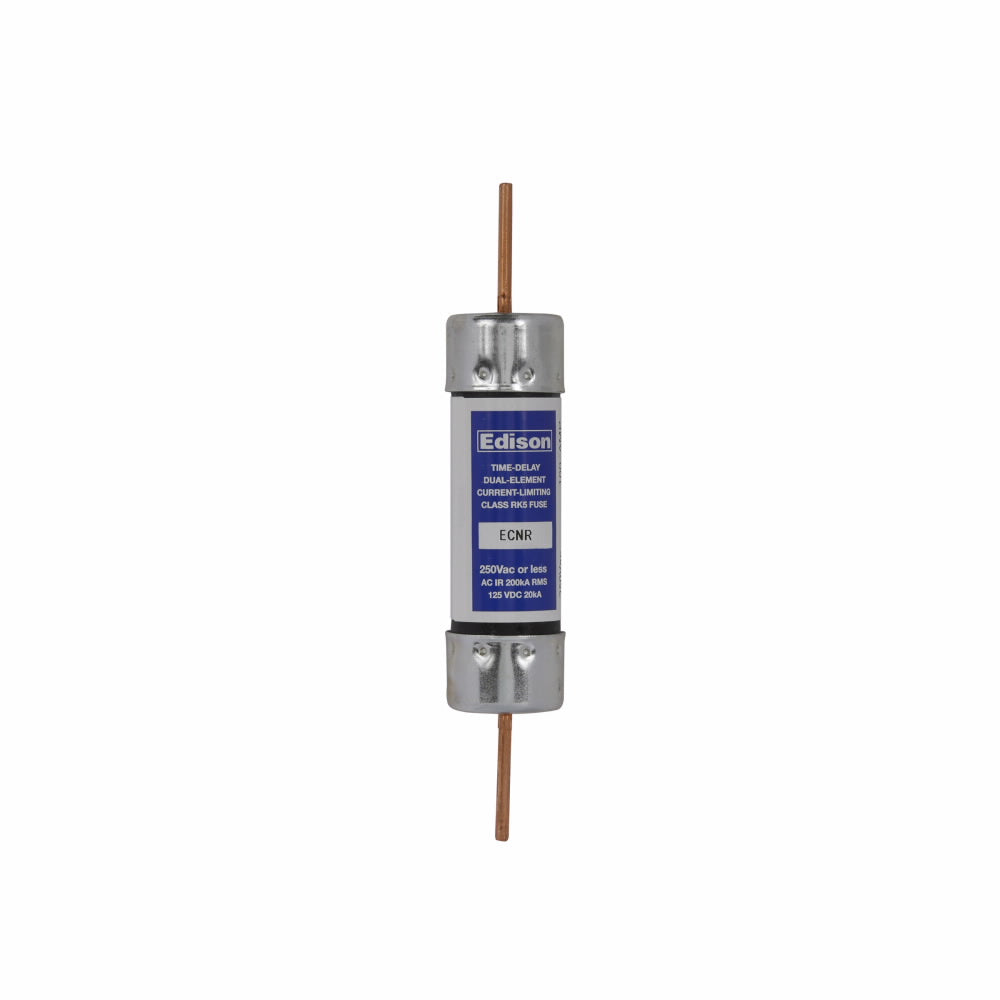

ECNR100 - Edison Fuses 100A 250VAC Class RK5 Time-Delay Knife Blade Fuse

ECNR100

ECNR100 is a 100 amp, 250 VAC Class RK5 time-delay knife blade fuse from Edison Fuses designed for feeder and branch protection applications.ECNR100 features a current-limiting, dual element time-delay design with a 10 second minimum delay at 5 times the rated current, providing reliable protection against overloads and short circuits. It has a knife blade body type measuring 1.06 x 5.88 inches and an interrupt rating of 200kA at 250V. This fuse is UL listed and CSA certified for safety compliance.

Key Specifications
• Amperage: 100A
• Voltage Rating: 250 VAC, 125 VDC
• Fuse Class: RK5
• Time-Delay: Yes, dual element
• Body Type: Knife blade
• Dimensions: 1.06 x 5.88 inches (26.9 x 149.4 mm)
• Interrupt Rating: 200kA @ 250V
• Certifications: UL Listed (File #E162363), CSA Certified (File #700489)
• Application: Feeder/branch circuit protection
• Current Limiting: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ECNR100
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 100
• AIC rating : 200kA@250V
• Connection : Rejection Blade
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 78263450743
• GTIN : 00782634507437
• Dimensions : 7.13 in x 1.56 in x 1.56 in (Length/Depth x Height x Width)
• Weight : 0.85
