Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

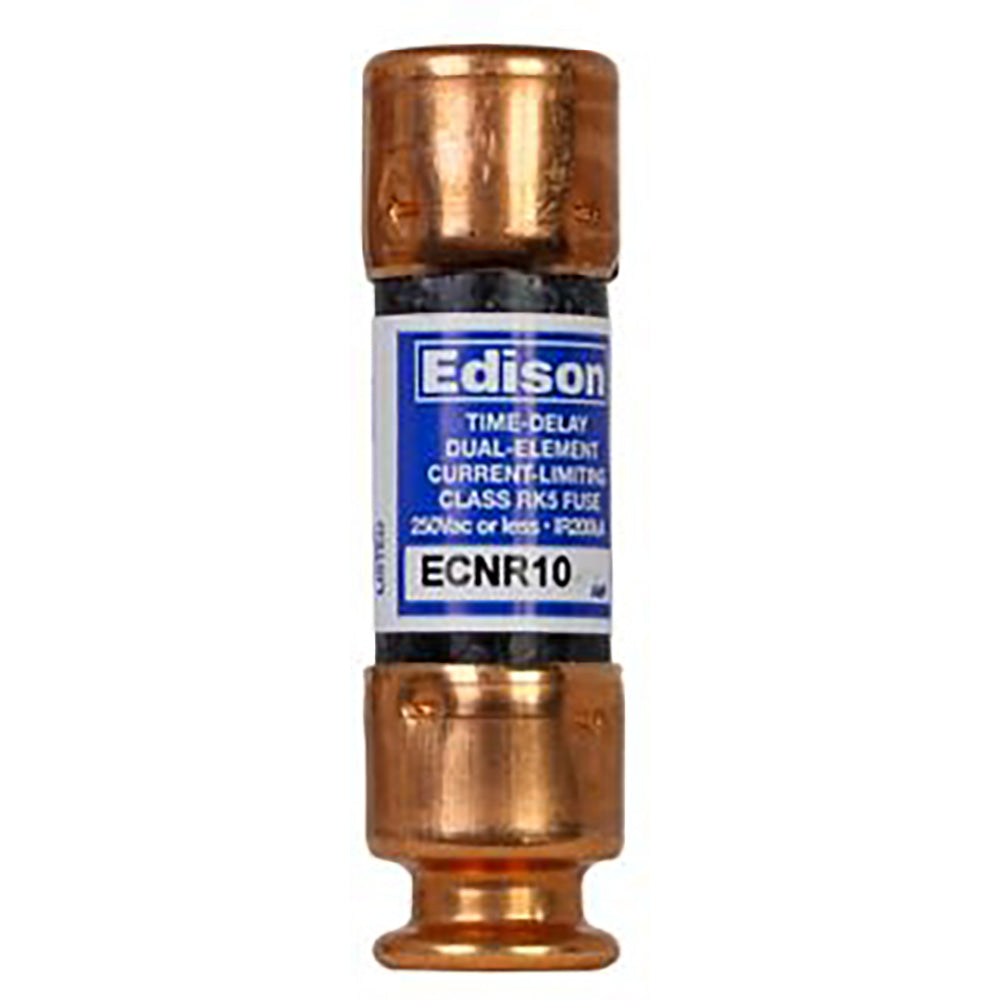

ECNR10
ECNR10 is a 10 amp, 250 volt Class RK5 time-delay current-limiting fuse from Edison Fuses designed for motor overload and short-circuit protection.This dual-element fuse features a 200 kA interrupt rating, non-indicating ferrule ends, and provides 8 seconds response time at 500% overload. It is suitable for feeder and branch circuit protection with superior overload and cycling capabilities.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 250 VAC, 125 VDC
- Class: RK5
- Interrupt Rating: 200 kA
- Response Time: 8 seconds at 500% rated current
- Dual-element, time-delay design
- Non-indicating fuse
- Ferrule end x ferrule end mounting
- Length: 5.88 inches
- Diameter: 0.56 inches
- Weight: 0.3 lb
- CE Marked
Specifications
- Part Number: ECNR10
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 10
- AIC rating : 200kA@250V
- Connection : Ferrule
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 782634507284
- GTIN : 00782634507284
- Dimensions : 5.88 in x 1.6 in x 1.6 in (Length/Depth x Height x Width)
- Weight : 0.3
