Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
ECNR1.125

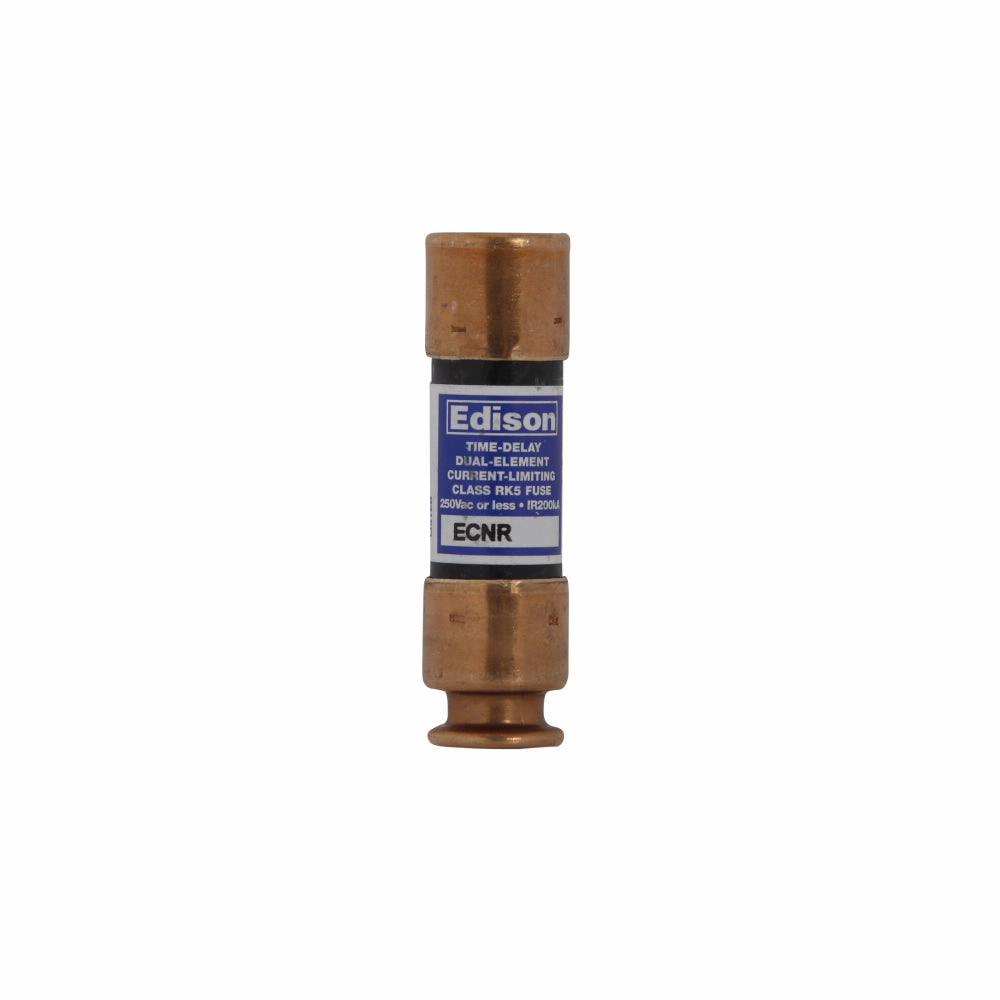

ECNR1.125 is an Eaton Edison ECNR time-delay, current-limiting fuse designed for superior overload and cycling protection in industrial and commercial applications.
This dual-element Class RK5 fuse delivers reliable overcurrent protection with an 8-second time delay at 500% load. The non-indicating design operates at 250 VAC or 125 VDC with a 200,000 AIR interrupting rating, making it suitable for a wide range of circuit protection needs.
- Part Number: ECNR1.125
- Amperage Rating: 1.125 A
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Class: RK5
- Type: Time-Delay, Current-Limiting
- Element Configuration: Dual Element
- Time Delay: 8 seconds at 500% load
- Interrupting Rating: 200,000 AIR
- Indication Type: Non-Indicating
- UL Listed: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ECNR1.125
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 1.13
- AIC rating : 200kA@250V
- Connection : Ferrule
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 78263450709
- GTIN : 00782634507093
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5
