Product Info
- Manufacturer:Edison Fuses
Description
ECNR0.4

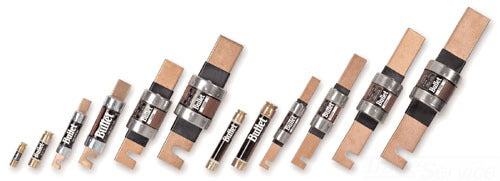

ECNR0.4 is a 0.4 amp dual-element time-delay fuse from Edison Fuses designed for reliable overcurrent protection in industrial electrical systems.This Class RK5 fuse provides motor overload, ground fault, and short-circuit protection with a voltage rating of 250VAC and 125VDC. It features a current-limiting design with a 200kA interrupt rating and a minimum 10-second time delay at 500% rated current, ideal for circuits subject to temporary motor overloads and surge currents. The fuse is UL and CSA certified for safety and performance.
- Key Specifications
- Amperage: 0.4A
- Voltage Rating: 250VAC / 125VDC
- Fuse Type: Dual-Element Time-Delay
- Class: RK5
- Interrupt Rating: 200kA RMS Symmetrical
- Response Time: Minimum 10 seconds at 500% rated current
- Mounting Type: Fuse Holder
- Certifications: UL Listed, CSA Certified
- Application: Motor overload and short-circuit protection
Specifications
- Part Number: ECNR0.4
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
Product Data
- UPC : 782001701377
- Weight : 0.1
