Product Info
- Manufacturer:Edison Fuses
Description
ECNR0.1

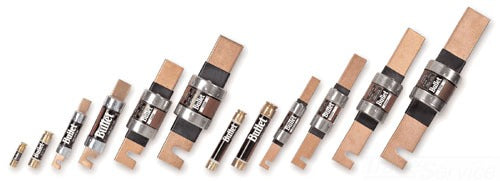

ECNR0.1 is a dual-element, time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This Edison Fuses product provides superior overload and cycling capabilities, ideal for protecting motors and sensitive equipment from burnout due to overloads and surge currents. The ECNR0.1 fuse features a 250VAC voltage rating, 0.1A amperage rating, and a 200kA interrupt rating, ensuring robust protection in demanding environments. It is a non-indicating, current-limiting fuse with dual-element construction for enhanced reliability.
- Part Number: ECNR0.1
- Manufacturer: Edison Fuses
- Fuse Type: Class RK5
- Amperage Rating: 0.1A
- Voltage Rating: 250VAC, 125VDC
- Interrupt Rating: 200kA RMS Sym.
- Response Time: Time-Delay (8 sec minimum at 500% rated current)
- Number of Elements: Dual
- Certifications: UL 248-12, CSA C22.2 No. 248.12, CE, cULus
- Mounting Type: Standard Fuse Holder
- Series/Frame: ECNR
- Application: Motor overload, ground fault, short-circuit protection
Specifications
- Part Number: ECNR0.1
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
Product Data
- UPC : 782001903416
- Weight : 0.1
