Product Info
- Manufacturer:Eaton
Description
ECN5432AAG-P6R63/E

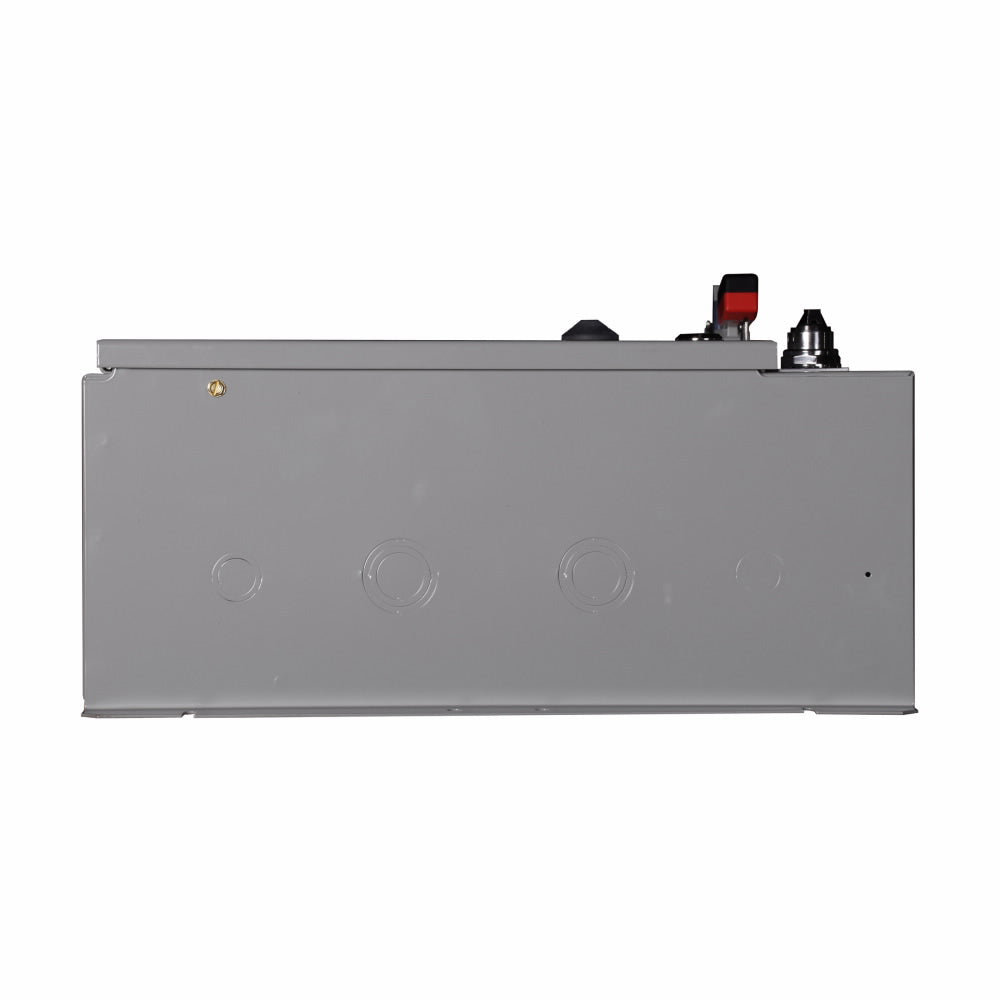

ECN5432AAG-P6R63/E is an Eaton Freedom Industrial Combination Fusible Disconnect Pump Panel designed for motor control and pump applications with weather-tight NEMA 3R enclosure protection. This 100-ampere fusible disconnect panel operates at 120V (60 Hz) or 110V (50 Hz) and features auto/hand/off action control with a 110/120 VAC coil. The panel is constructed with a robust steel enclosure measuring 40 inches in length, 20 inches in width, and 12 inches in height, weighing 75 pounds for secure installation in industrial environments. The Freedom series combines disconnect switching, fusing, and motor control in a single integrated unit, simplifying pump station installations and reducing component count.
- Amperage Rating: 100A
- Operating Voltage: 120V @ 60 Hz, 110V @ 50 Hz
- Enclosure Type: NEMA 3R (weather-tight)
- Control Action: Auto/Hand/Off
- Coil Voltage: 110/120 VAC
- Overall Length: 40 inches
- Overall Width: 20 inches
- Overall Height: 12 inches
- Weight: 75 pounds
- Switch Type: Fusible Disconnect
- Product Series: Freedom Industrial Pump Panel
- UPC: 786685455334
Specifications
- Part Number: ECN5432AAG-P6R63/E
- Manufacturer : Eaton
- Brand : Cutler Hammer
Product Data
- UPC : 078668545533
- GTIN : 00786685455334
- Country of Origin : United States
- Dimensions : 40 in x 12 in x 20 in (Length/Depth x Height x Width)
- Weight : 75
- Certification : ABS Certified,UL Listed,OSHPD Certified,cUL Listed
