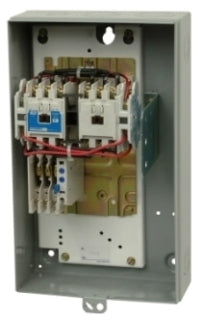

ECN0701EAA - Cutler Hammer 18A 600V 3P NEMA 1 Non-Reversing Motor Starter, 120V Coil, NEMA Size 0, 3-Phase

ECN0701EAA

ECN0701EAA is a Cutler Hammer non-reversing motor starter designed for reliable three-phase motor control in industrial applications.

This NEMA 1 enclosed starter features a 120V coil, is rated for 18A at 600V, and is suitable for general duty control up to 20 HP at 460V. It is a non-combination, non-reversing type with a built-in control power transformer for flexible installation. The unit is engineered for durability, supporting up to 2,000,000 electrical operations at maximum ratings.

Key Specifications
• Amperage: 18A
• Voltage: 600V (system), 208V/60 Hz primary, 120V/60 Hz secondary control power transformer
• Poles: 3
• Mounting Type: NEMA 1 enclosure
• Interrupt Rating: Not specified in available data
• Series/Frame: NEMA Size 0
• Trip Unit: Not specified in available data
• Certifications: Not specified in available data
• Phase: Three-phase
• Coil Voltage: 120V
• Application: General duty motor control
• Durability: Up to 2,000,000 electrical operations

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: ECN0701EAA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Coil Voltage Maximum : 120 VAC
• Coil Voltage Minimum : 120
• Nema Starter Size : 0
• Protection : Solid State
• Frequency : 60 Hz

Product Data

• UPC : 78211401573
• GTIN : 00782114015735
• Dimensions : 7.62 in x 12.6 in x 6 in (Length/Depth x Height x Width)
• Weight : 19.9
