- Manufacturer:Cutler Hammer
Description
ECN0701CBA

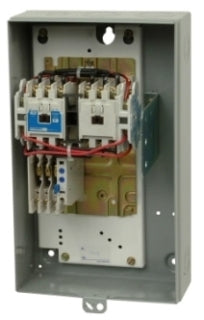

ECN0701CBA is a Cutler Hammer FS NEMA FVNR Size 0 non-reversing motor starter designed for reliable motor control applications.This starter operates at 240/480V with a 120V control power transformer and features a 3-pole configuration rated for 18 amps. It includes start/stop pushbuttons and is suitable for 3-phase motors up to 5 HP at 460V. The unit is built to meet UL standards and is designed for general industrial use with a NEMA 1 enclosure.
- Key Specifications
- Amperage: 18A
- Voltage: 240/480V power, 120V control
- Poles: 3
- Mounting Type: Enclosed NEMA 1
- Type: Non-combination, Non-reversing starter
- Horsepower Rating: 5 HP at 460V
- Control: Start/Stop pushbuttons
- Standards: UL Listed
- Series/Frame: FS NEMA FVNR Size 0
- Weight: Approx. 20 lbs
- Part Number: ECN0701CBA
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Coil Voltage Maximum : 440 VAC
- Nema Rating : NEMA 1
- Nema Starter Size : 0
- Frequency : 50 Hz
- UPC : 782114075982
- GTIN : 00782114075982
- Country of Origin : United States
- Dimensions : 7.62 in x 12.6 in x 6 in (Length/Depth x Height x Width)
- Weight : 19.9
Additional Information
Non-Reversing
