Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
ECN0532AAA

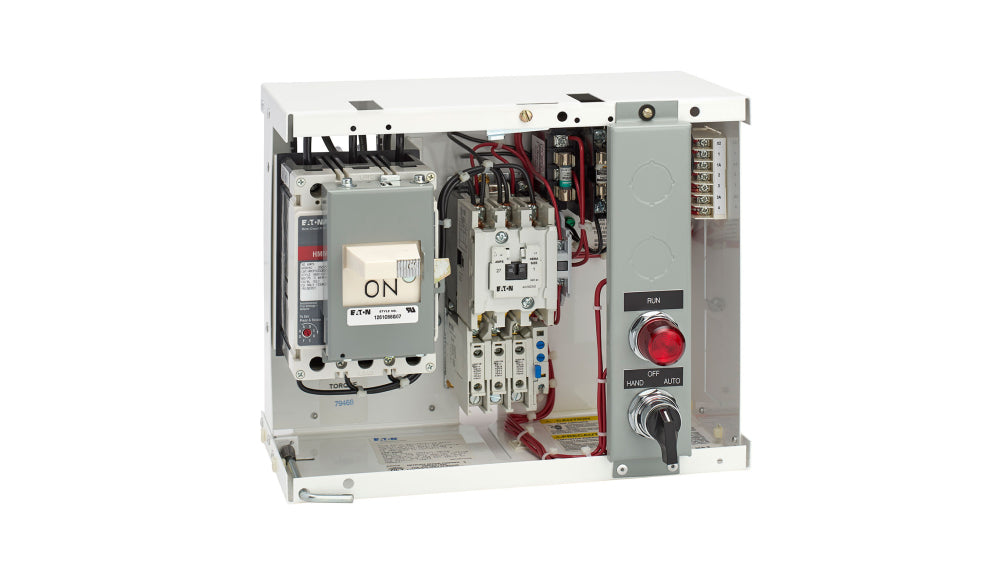

ECN0532AAA is a Cutler Hammer Freedom Series motor starter designed for reliable motor control applications.This non-combination, non-reversing starter features a 3-pole configuration rated for 100 amps and operates on 110V/50 Hz to 120V/60 Hz coil voltage. It is housed in a NEMA 3R enclosure suitable for outdoor or indoor use, providing protection against rain and sleet. The starter includes solid-state overload relay protection adjustable from 20 to 100 amps without ground fault sensing. It is UL listed and designed for single-phase or three-phase motor control.
- Manufacturer: Cutler Hammer (Eaton)
- Series: Freedom
- Type: Non-combination, Non-reversing motor starter
- Current Rating: 100A
- Poles: 3 Pole
- Coil Voltage: 110V/50 Hz - 120V/60 Hz
- Enclosure: NEMA 3R
- Overload Relay: Solid-state, adjustable 20-100A, no ground fault
- Phase: Single or Three Phase
- Size: NEMA Size 3
- Certifications: UL Listed
Specifications
- Part Number: ECN0532AAA
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- Nema Rating : 3
Product Data
- UPC : 782114066386
- GTIN : 00782114066386
- Country of Origin : United States
- Weight : 55
- Certification : UL Listed, file E1491
