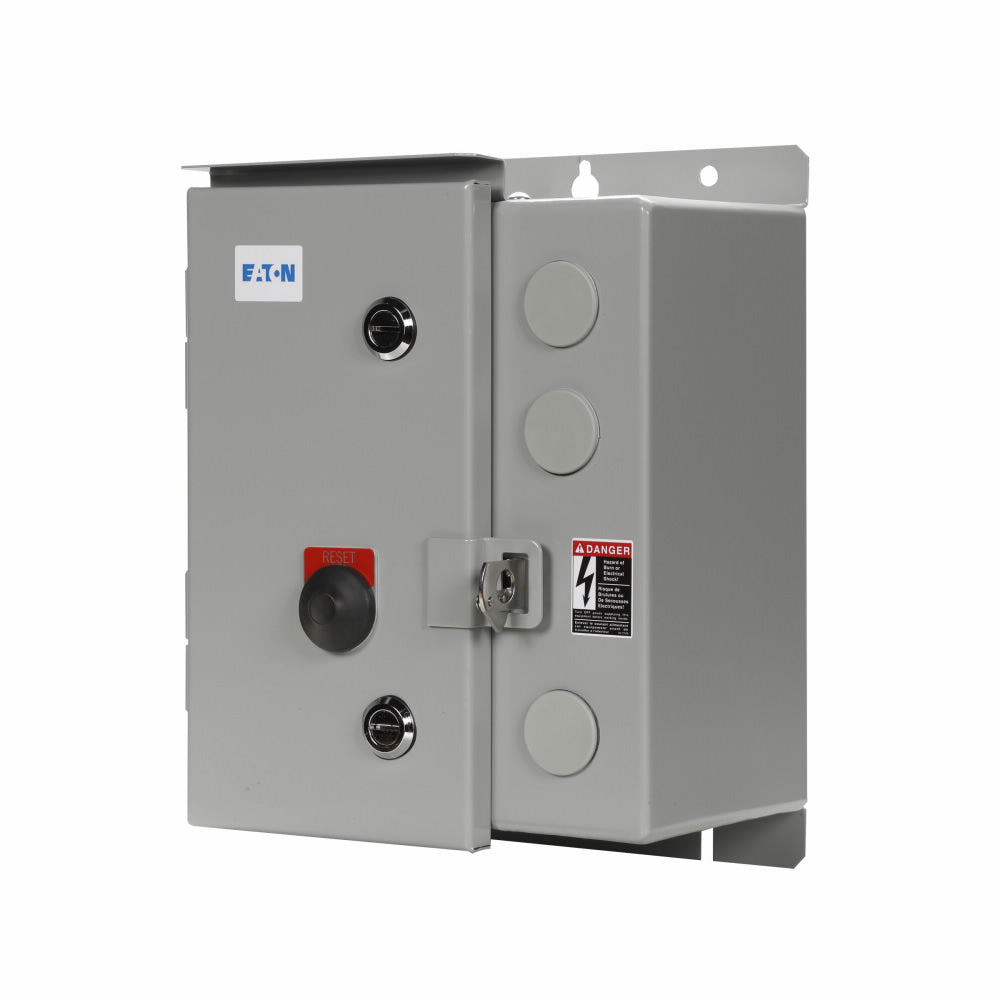

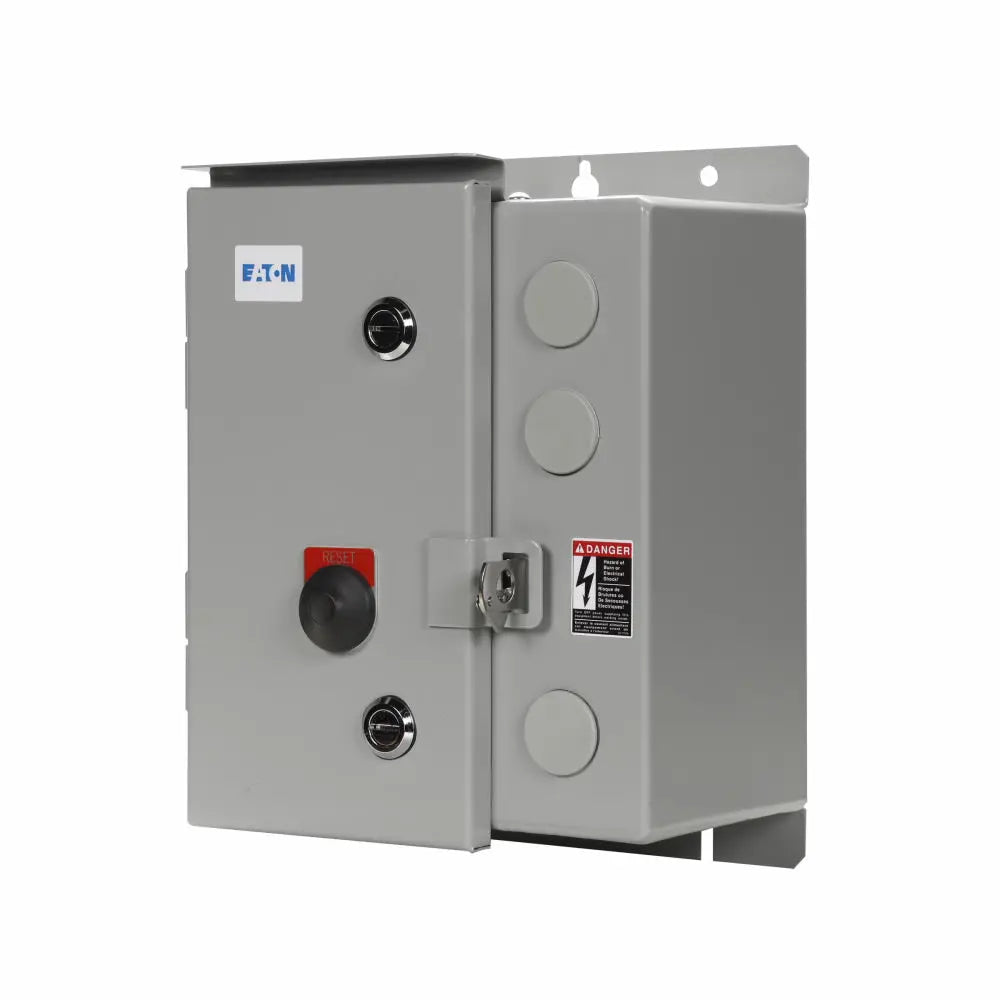

ECN0514BAA - Cutler Hammer Freedom NEMA Motor Control Starter 220-240V 50/60Hz NEMA 4X Non-Combination Non-Reversing Size 1

ECN0514BAA

ECN0514BAA is a Cutler Hammer Freedom NEMA motor control starter designed for reliable motor protection and control in demanding industrial environments. This non-combination, non-reversing starter features a NEMA 4X enclosure for durability and is suitable for both single and three-phase applications. The ECN0514BAA provides full voltage control and electronic overload protection, supporting a wide voltage range of 220V to 240V AC at 50/60 Hz. It is rated for up to 7.5 horsepower at 208V three-phase and 2 horsepower at 120V single-phase, making it ideal for a variety of motor control needs. The starter is built to NEMA size 1 standards and is engineered for easy installation and dependable operation.

• Part Number: ECN0514BAA
• Manufacturer: Cutler Hammer
• Type: Non-Combination Non-Reversing Motor Control Starter
• Enclosure: NEMA 4X
• Voltage: 220-240V AC, 50/60 Hz
• Phase: Single and Three-Phase
• Horsepower: 7.5 HP (3-Phase), 2 HP (Single-Phase)
• Amperage: 45 A
• Overload Protection: Electronic
• NEMA Size: 1
• Mounting Type: Panel Mount
• Series: Freedom

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ECN0514BAA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 240
• Nema Rating : 1

Product Data

• UPC : 782114016077
• GTIN : 00782114016077
• Country of Origin : United States
• Dimensions : 6.66 in x 28.98 in x 10.5 in (Length/Depth x Height x Width)
• Weight : 38
• Certification : UL Listed file E1491
