Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Motor Starter
Description
ECN0504AAA

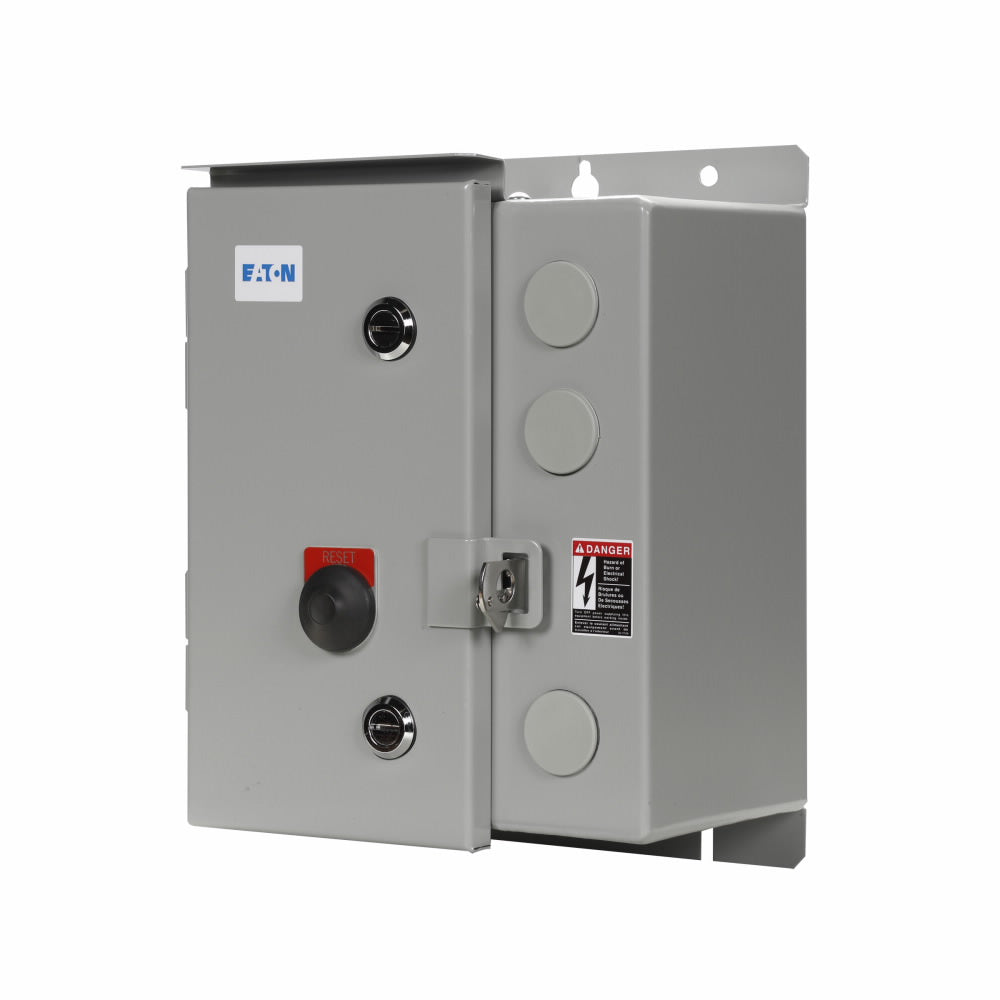

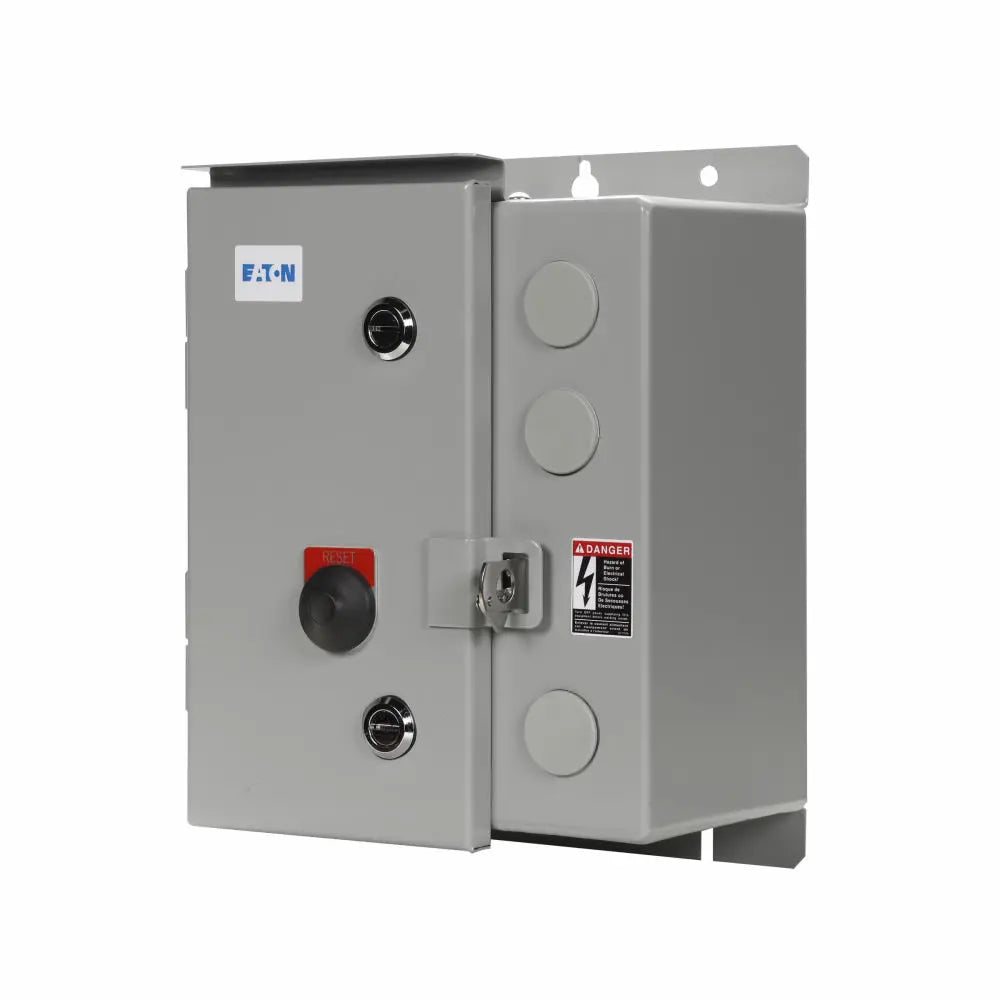

ECN0504AAA is a Cutler Hammer Freedom NEMA motor control starter designed for reliable motor control in industrial environments. This non-combination, non-reversing starter features a 110-120VAC coil voltage and a NEMA 4X enclosure for durability and protection. This starter is suitable for applications requiring a compact, robust solution with a 5A current rating and three-pole configuration. The Freedom Series design ensures compatibility with a wide range of motor control needs, while the NEMA 4X enclosure provides resistance to dust, water, and corrosion.
- Part Number: ECN0504AAA
- Manufacturer: Cutler Hammer
- Series: Freedom NEMA
- Type: Non-combination, non-reversing starter
- Coil Voltage: 110-120VAC, 50/60 Hz
- Current Rating: 5A
- Poles: 3 Pole
- Enclosure: NEMA 4X
- NEMA Size: Size 0
- Mounting Type: Panel mount
- Interrupt Rating: Not specified
- Certifications: UL Listed
Specifications
- Part Number: ECN0504AAA
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 600
- Amperage : 18
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
Product Data
- UPC : 782114015889
- GTIN : 00782114015889
- Country of Origin : United States
- Dimensions : 15.1 in x 9.7 in x 11.5 in (Length/Depth x Height x Width)
- Weight : 18.35
- Certification : UL Listed file E1491
