Description
ECL04C1A4A

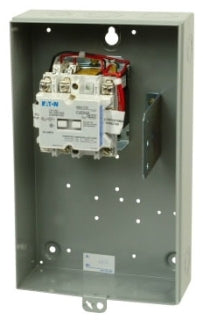

ECL04C1A4A is a 30 amp, 4-pole magnetically held lighting contactor from Eaton's A202 series designed for reliable lighting control.This Eaton A202 series contactor features a mechanically held and magnetically latched design with a coil voltage of 110-120V at 50/60 Hz. It is constructed with a painted steel NEMA 1 enclosure and supports two-wire control relay operation. The contactor is non-combination type and suitable for lighting applications requiring 30 amps interrupt rating.
- Key Specifications
- Amperage: 30 A
- Voltage: 110-120 V, 50/60 Hz
- Number of Poles: 4
- Mounting Type: NEMA 1 Painted Steel Enclosure
- Type: Mechanically Held, Magnetically Latched
- Series: A202
- Special Features: Two-wire control relay
- Interrupt Rating: 30 A
- Application: Lighting Contactor
- Part Number: ECL04C1A4A
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Contactor
- Compatible Frames : DK,KD,KDB,HKD,HKDB,KDC,CKD,CHKD
- Frequency : 50 Hz
- UPC : 782113973548
- GTIN : 00782113777870
- Dimensions : 7.62 in x 12.6 in x 6 in (Length/Depth x Height x Width)
- Weight : 11.5
Additional Information
This Magnetically Latched includes a 110 VAC coil.
