Product Info
- Manufacturer:Cutler Hammer
Description
ECL03B1A2A

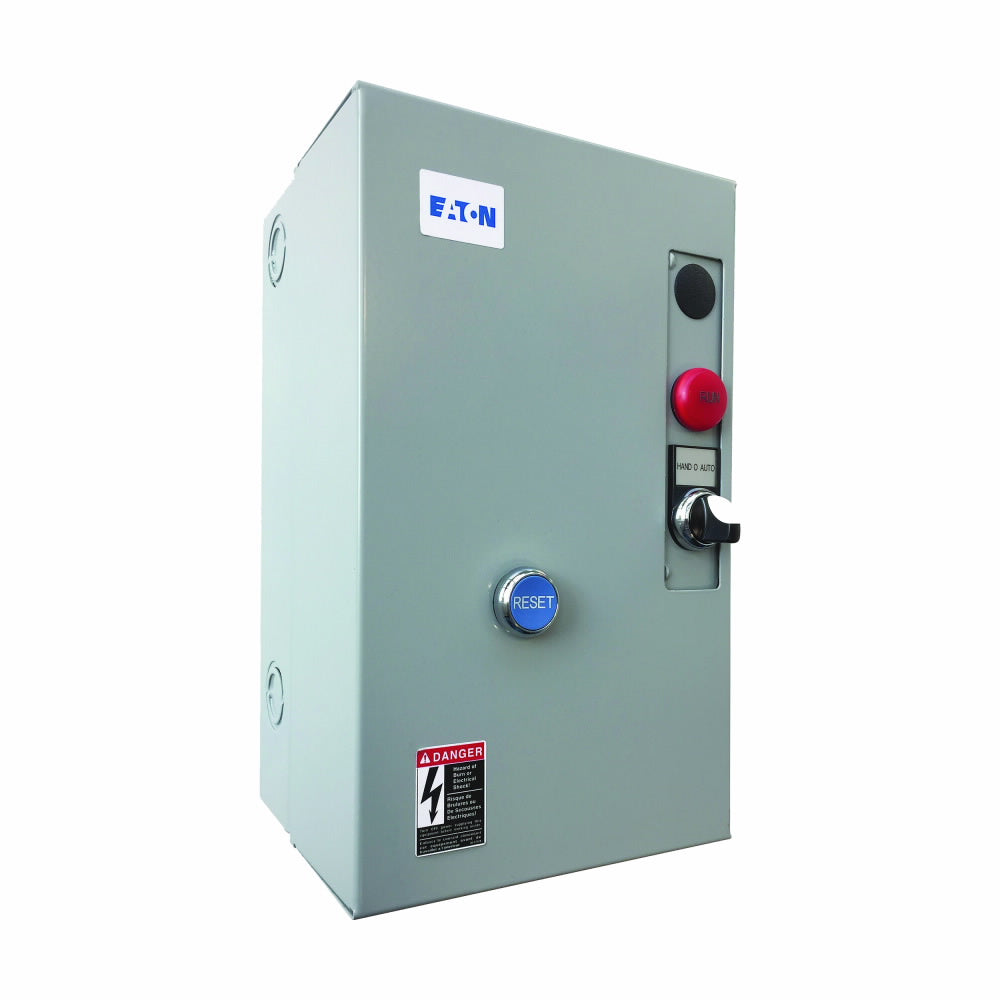

ECL03B1A2A is an electrically held enclosed lighting contactor designed for general purpose applications in industrial and commercial settings. Cutler Hammer manufactures this CN35 series contactor with a robust NEMA 1 enclosure rated for indoor use. The unit features a 20 ampere maximum load current capacity with a 2-pole configuration and 110/120 VAC coil voltage operating at 50/60 Hz frequency. This non-combination, electrically held contactor includes 1 normally open contact and 1 auxiliary contact mounted on the right side of the unit. The compact 45 mm frame measures 7.73 x 5.84 x 12.6 inches, making it suitable for space-constrained installations. Additional auxiliary contacts can be mounted on the top and/or sides for expanded control flexibility.
- Amperage Rating: 20 A
- Number of Poles: 2-Pole
- Coil Voltage: 110-120 VAC
- Frequency: 50/60 Hz
- Contact Configuration: 1NO (Normally Open)
- Enclosure Type: NEMA 1
- Frame Size: 45 mm
- Dimensions: 7.73 x 5.84 x 12.6 inches
- Control Type: Electrically Held
- Auxiliary Contacts: 1 (right-side mounted)
Specifications
- Part Number: ECL03B1A2A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
Product Data
- UPC : 782114016800
- GTIN : 00782114016800
- Country of Origin : United States
- Dimensions : 7.73 in x 12.6 in x 5.84 in (Length/Depth x Height x Width)
- Weight : 5.2
- Certification : cUL Listed,UL Listed,ABS Certified,OSHPD Certified
