Description
ECC04C1A2A

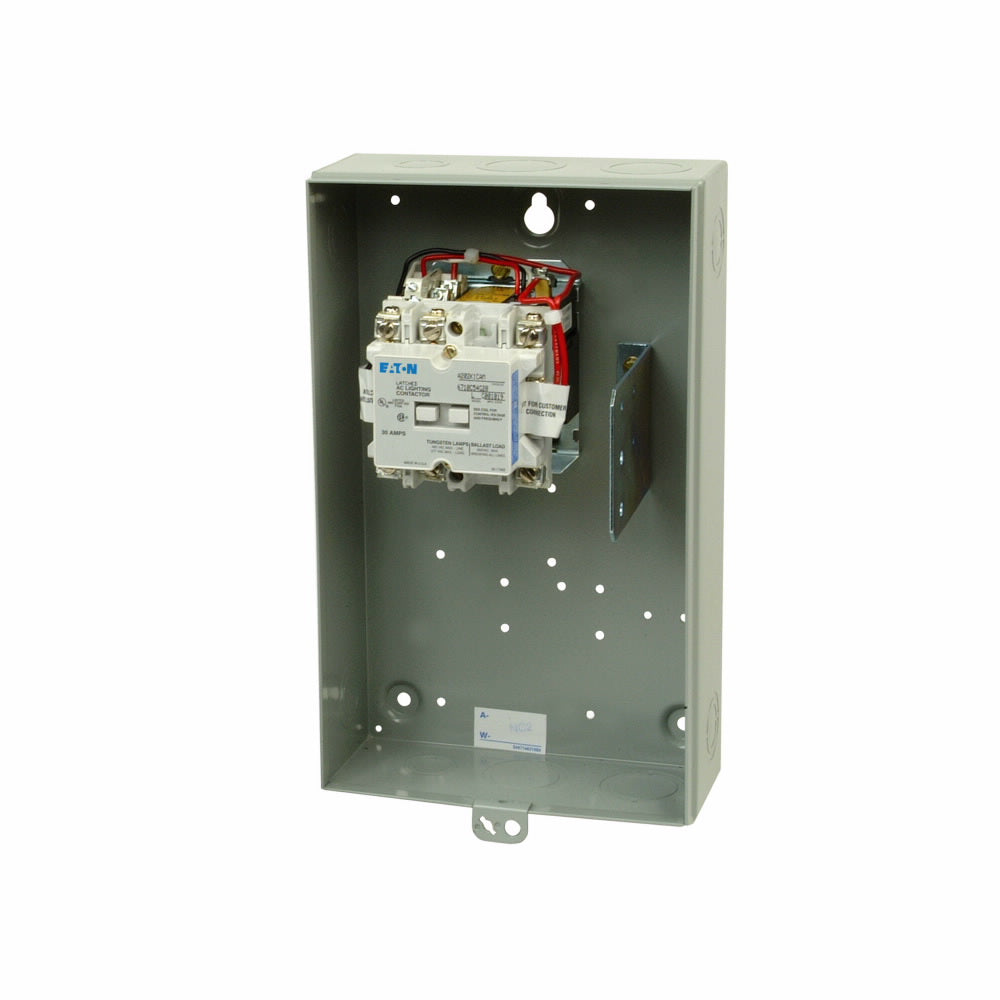

ECC04C1A2A is an Eaton C30CN mechanically held lighting contactor designed for reliable on-off control in lighting applications. This non-combination electrically and mechanically held contactor features a magnetically latched design with two poles and a 30-amp contact rating suitable for tungsten lamp loads up to 480V and ballast or mercury vapor applications up to 600V. The unit is housed in a painted steel NEMA 1 enclosure and operates on 110-120 Vac coil voltage at 50/60 Hz frequency. It includes START/STOP pushbutton controls and a red RUN pilot light for visual status indication. The contactor measures 7.73 inches in length, 5.84 inches in width, and 13.21 inches in height, with a total weight of 13.5 pounds.
- Amperage Rating: 30A
- Coil Voltage: 110-120 Vac, 50/60 Hz
- Number of Poles: Two-pole
- Enclosure Type: NEMA 1
- Enclosure Material: Painted steel
- Operation: Mechanically held, magnetically latched
- Type: Non-combination electrically and mechanically held
- Series: C30CN
- Certifications: UL Listed, cUL Listed
- Accessories: ON/OFF pushbutton, red RUN pilot light
- Warranty: 1 year
- UPC: 782116155668
Additional Information
This Magnetically Latched includes a 110 VAC coil.
Specifications
- Part Number: ECC04C1A2A
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Contactor
- Compatible Frames : JDB,JD,HJD,JDC
- Frequency : 50 Hz
Product Data
- UPC : 78211615564
- GTIN : 00782116155644
- Country of Origin : United States
- Dimensions : 7.62 in x 12.6 in x 6 in (Length/Depth x Height x Width)
- Weight : 13
- Certification : cUL Listed,UL Listed
