EBY2672 - Eaton Conduit & Fittings Portable Cord Connector

EBY2672

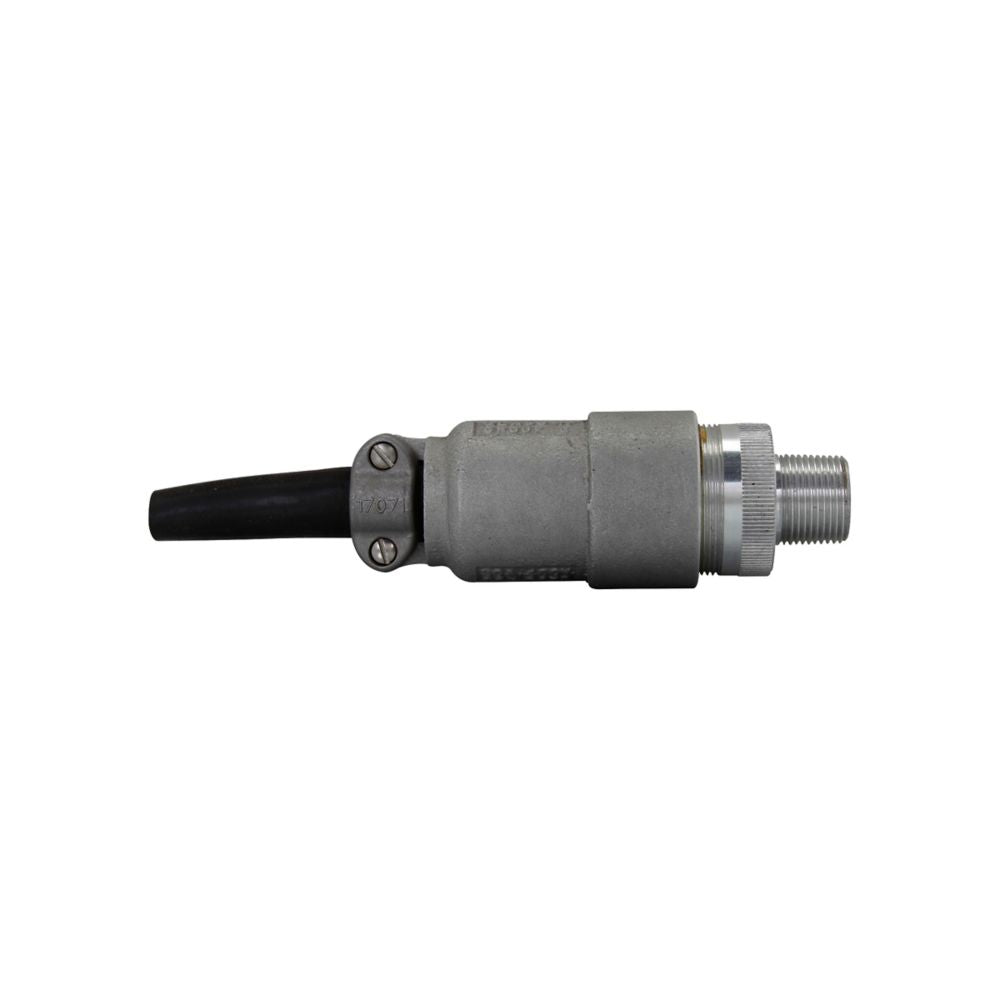

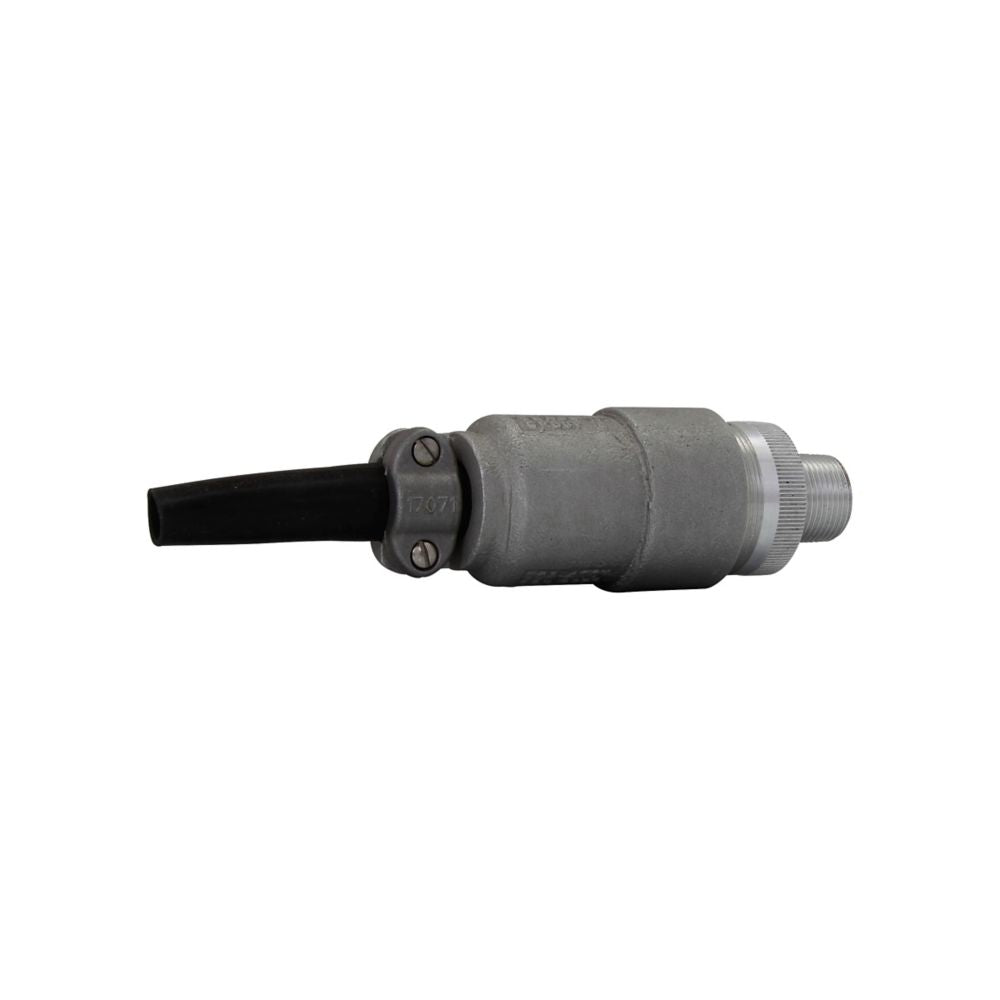

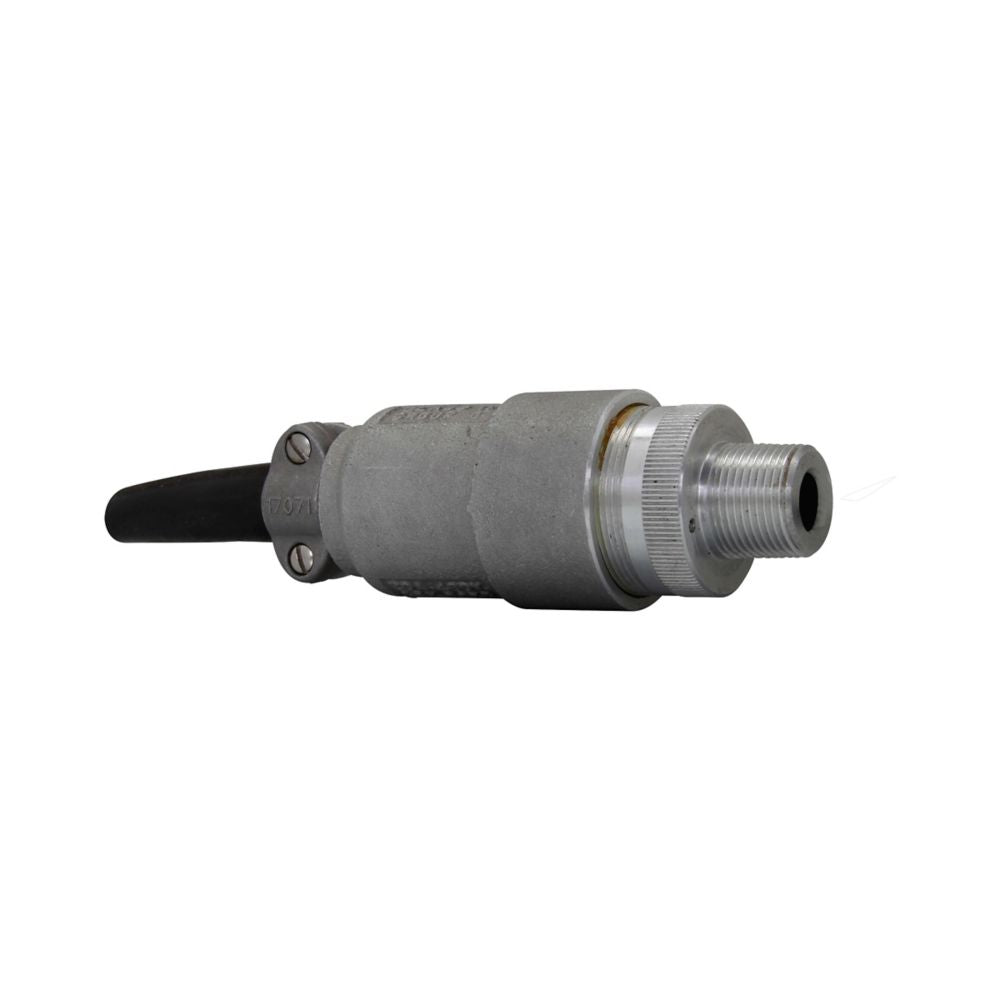

EBY2672 is an Eaton Crouse-Hinds series explosionproof portable cord connector designed for hazardous classified locations. This aluminum connector features factory-sealed conductors and is rated for 20 amperes at 460 VAC/DC, making it suitable for demanding industrial applications requiring explosion-proof protection. The connector accommodates non-armored and tray cable with outer sheath diameters between 0.250 and 0.437 inches and uses a 3/4" NPT thread. It includes three 12-inch long #12 type SF-2 stranded pigtails with a 150°C temperature rating, consisting of two circuit wires and one grounding conductor. The EBY2672 is approved for Class I Division 1 and Class II Division 1 hazardous locations per the National Electrical Code. Key Specifications

• Part Number: EBY2672
• Manufacturer: Eaton
• Voltage Rating: 460 V
• Current Rating: 20 A
• Thread Size: 3/4" NPT
• Material: Aluminum
• Outer Sheath Diameter: 0.250-0.437 in
• Pigtail Wire Gauge: #12 AWG
• Temperature Rating: 150°C
• Protection Type: Explosionproof
• NEC Hazardous Rating: Class I Division 1, Class II Division 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EBY2672
• Manufacturer : Eaton
• Brand : Eaton
• Category : Conduit & Fittings
• Item Subcategory : Cable glands and cord grips
• Section : CGBS and EBY Explosionproof Portable Cord Connectors
• Voltage : 460 V
• Amperage : 20 A
• Diameter : 0.250-0.437 in
• Class Rating : Class I Division 1, Class II Division 1
• Wire : #12 AWG
• Nema Rating : Hazardous/Classified Locations
• Insulation Temperature : 150°C
• Protection : Explosionproof
• Material : Aluminum
• NEC hazardous rating : Class I, Division 1 Class II, Division 1
• Trade size : 3/4 NPT

Product Data

• UPC : 782274249551
• GTIN : 00782274000000
• Dimensions : 6.25 in x 2.06 in x 2.06 in (Length/Depth x Height x Width)
• Weight : 0.55 lb
