Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

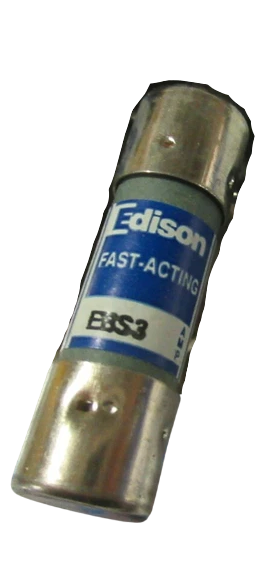

EBS3
EBS3 is a fast-acting, non-indicating, supplemental protection fuse designed for non-inductive control and lighting circuits.
This Edison EBS Series fuse offers economical, reliable circuit protection with a 3 amp current rating, 600V voltage rating, and a 10,000 ampere interrupting capacity. It is suitable for a variety of low power applications and is certified to UL and CSA standards for safety and compliance.
-
Key Specifications
- Part Number: EBS3
- Manufacturer: Edison Fuses
- Amperage: 3 A
- Voltage: 600 V
- Poles: 1
- Mounting Type: Barrel (Midget Fuse)
- Interrupt Rating: 10 kAIC
- Series/Frame: EBS Series
- Trip Unit: Fast Acting
- Certifications: UL, CSA C22.2
- Non-Indicating
- Physical Size: 13/32" x 1 3/8" (10.3mm x 35mm)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: EBS3
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : EBS Series
- Type : EBS
- Voltage : 600
- Amperage : 3
- AIC rating : 10kA@600V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 782634707455
- GTIN : 00782635000000
- Dimensions : Length .001in Height .001in Width .001in
- Weight : 0.001
