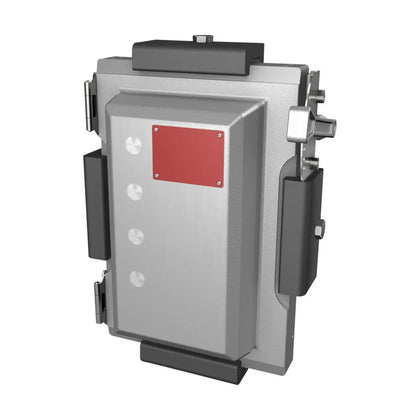

EBMX3B-W500 - Eaton Circuit Breaker 500A 600V

EBMX3B-W500

EBMX3B-W500 is an Eaton Crouse-Hinds series clamped explosionproof circuit breaker designed for demanding industrial and hazardous environments. This heavy-duty three-pole circuit breaker features copper-free aluminum construction in a Size 3 enclosure, rated for 500A at 600 Vac with thermal-magnetic trip protection and a 500 kAIC interrupt rating. The unit measures 42.28 inches in length and operates across a temperature range of -50 to 60 degrees Celsius, making it suitable for extreme industrial applications. Key Specifications

• Part Number: EBMX3B-W500
• Manufacturer: Eaton
• Voltage Rating: 600 V
• Amperage Rating: 500 A
• Number of Poles: 3
• Enclosure Type: NEMA 4X
• Interrupt Rating: 500 kA
• Trip Type: Thermal Magnetic
• Material: Copper-Free Aluminum
• Temperature Rating: -50 to 60 deg C
• Product Length: 42.28 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EBMX3B-W500
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Clamped EBMXB Explosionproof Circuit Breakers
• Voltage : 600 V
• Amperage : 500 A
• Poles : 3
• AIC rating : 500 kA
• Nema Rating : 3R 4X 7 9
• Operating Temperature Maximum Celsius : -50 to 60 deg C
• Hz : 60 Hz
• Trip Type : Thermal Magnetic
• Material : Copper-Free Aluminum
• Enclosure Type : NEMA 4X
• NEC hazardous rating : Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2 Class III
• Enclosure size : Size 3

Product Data

• UPC : 662276605961
• Dimensions : 42.28 in x 13.85 in x 17.93 in (Length/Depth x Height x Width)
• Weight : 211 lb
• Standards : NEC/CEC
