EBMBA WT15FDB36 - Eaton Crouse-Hinds Circuit Breaker 10-70A

EBMBA WT15FDB36

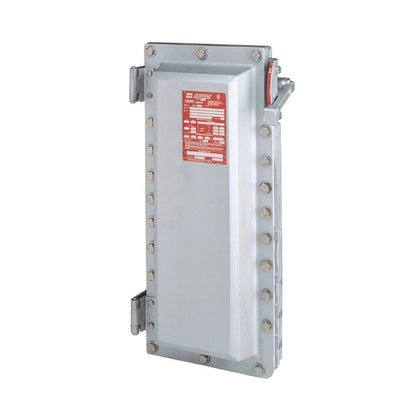

EBMBA WT15FDB36 is an Eaton Crouse-Hinds series EBMB explosionproof circuit breaker designed for hazardous locations. Technical Description: This three-pole circuit breaker features a 150A frame size with a 15A trip rating and 600 Vac voltage rating. It utilizes an FDB frame type with bolted/ground joint/gasketed cover construction and copper-free aluminum enclosure material. The clamshell design with side-operated handle provides reduced footprint and simple confirmation of internal assembly. It is rated for Class I Division 1 and 2, Class II Division 1 and 2, and Class III hazardous locations per NEC/CEC standards. Key Specifications

• Part Number: EBMBA WT15FDB36
• Manufacturer: Eaton Crouse-Hinds
• Amperage Rating: 10-70 A
• Voltage Rating: 600 V
• Frame Size: 150 A
• Trip Rating: 15 A
• Poles: 3
• Frame Type: FDB
• Enclosure Material: Copper-free aluminum
• Cover Construction: Bolted/ground joint/gasketed
• NEMA Rating: 3, 3R, 4, 7, 9, 12
• Hazard Classification: Class I Division 1, Class I Division 2, Class II Division 1, Class II Division 2, Class III

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EBMBA WT15FDB36
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Circuit Breaker
• Item Subcategory : EBMB Explosionproof Circuit Breakers
• Voltage : 600 V
• Amperage : 10 A through 70 A
• Poles : 3
• Frame Size : 150 A
• Breaker Type : FDB
• Class Rating : Class I Division 1, Class I Division 2, Class II Division 1, Class II Division 2, Class III
• Nema Rating : 3, 3R, 4, 7, 9, 12
• Amperage Maximum : 70 A
• Amperage Minimum : 10 A
• Enclosure : Bolted/ground joint/gasketed
• Metal Type : Copper-free aluminum
• Trip Type : 15 A
• NEC hazardous rating : Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III

Product Data

• UPC : 782274214863
• Dimensions : 14.78 in x 19.4 in x 10.25 in (Length/Depth x Height x Width)
• Weight : 102 lb
• Standards : NEC/CEC
