Description
E57SAL12T111

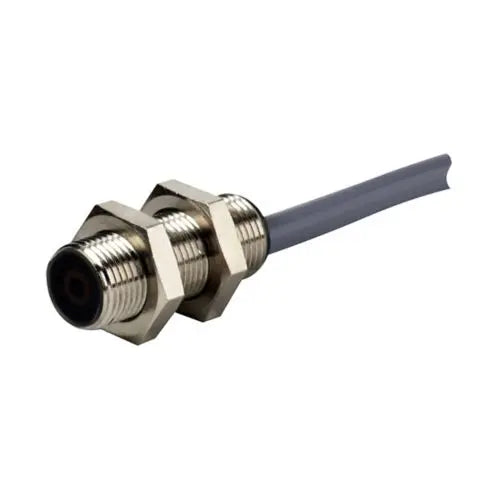

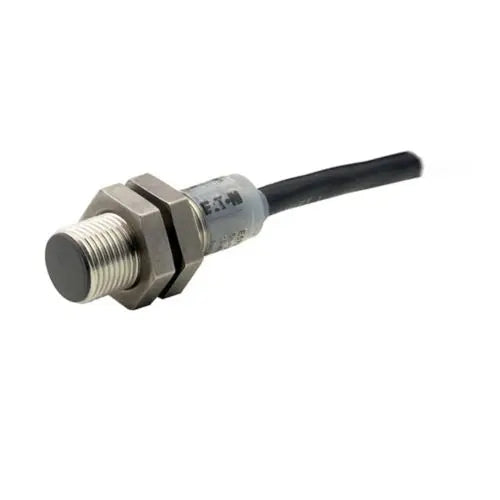

E57SAL12T111 is an Eaton E57 Series inductive proximity sensor designed for automation applications with a 12 mm sensing range and PNP output.This sensor features a short barrel, unshielded actuator with a 2 mm sensing distance, operates at 6-48 Vdc with a maximum current of 250 mA, and includes a 360° viewable LED indicator. It has a stainless steel enclosure, M12 4-pin connection, and is rated for harsh environments with NEMA 4, 4X, 6, 6P, 12, 13, and IP67 protection. The sensor is UL listed, CSA certified, and CE marked, suitable for temperatures from -13 to 158 °F.
- Key Specifications
- Part Number: E57SAL12T111
- Manufacturer: Eaton
- Series: E57
- Sensing Distance: 2 mm
- Actuator Function: Unshielded
- Voltage: 6-48 Vdc
- Maximum Current: 250 mA
- Output Type: PNP, NO (Normally Open)
- Connection: M12, 4-pin
- Enclosure Material: Stainless Steel
- Environmental Rating: NEMA 4, 4X, 6, 6P, 12, 13, IP67
- Certifications: UL Listed, CSA Certified, CE Marked
- Operating Temperature: -13 to 158 °F
Specifications
- Part Number: E57SAL12T111
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Automation
- Item Subcategory : Sensor
Product Data
- UPC : 078211338190
- GTIN : 00782113381909
- Dimensions : 0.47 in x 2.46 in x 0.47 in (Length/Depth x Height x Width)
- Weight : 0.17
