E57-08GS01-GDB - Eaton 1 mm Range Inductive Proximity Sensor, 100 mA, 30 VDC, 3-Wire M12, Shielded

E57-08GS01-GDB

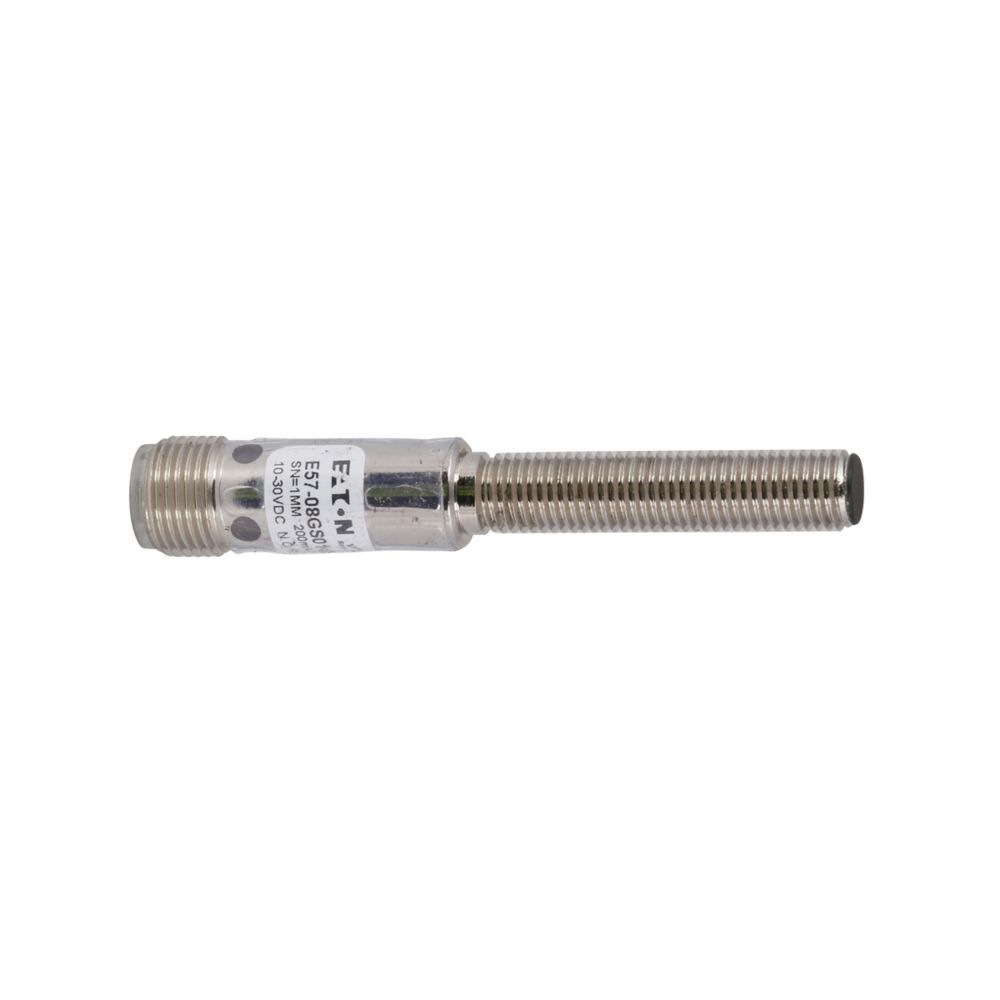

E57-08GS01-GDB is an Eaton inductive proximity sensor designed for precise object detection with a 1 mm sensing range.This sensor features a shielded, straight 8 mm diameter design with a 3-wire M12 connector, supporting an output current of 100 mA at 10-30 VDC. It offers high reliability with a sensing range accuracy of less than 1.0%, and is built with a nickel-plated brass housing for durability. The sensor is UL listed and CE certified, rated for IP67 and NEMA 4, 4X, 6, 6P enclosures, making it suitable for industrial automation applications.

Key Specifications
• Series: E57 Global
• Sensing Range: 1 mm
• Output Type: Normally Open (NO), Output ON
• Current Rating: 100 mA at 10-30 VDC
• Poles: 3-wire
• Connector: M12, 4-pin
• Housing: Nickel-plated brass, 8 mm diameter
• Sensing Accuracy: <1.0%
• Enclosure Rating: IP67, NEMA 4, 4X, 6, 6P
• Certifications: UL Listed, CE, RoHS Compliant
• Operating Temperature: -25 to +70 °C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: E57-08GS01-GDB
• Manufacturer : Eaton
• Brand : Eaton
• Category : Automation
• Item Subcategory : Automation Switch
• Section : Proximity Switch



Product Data

• UPC : 782114664971
• GTIN : 00782114664971
• Country of Origin : China
• Dimensions : 2.76 in x 0.31 in x 0.31 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : CE, CSA, UL Listed
