E51ALS1 - Cutler Hammer E51 Modular Inductive Proximity Sensor 20-264VAC/VDC 500mA Shielded Right Angle

E51ALS1

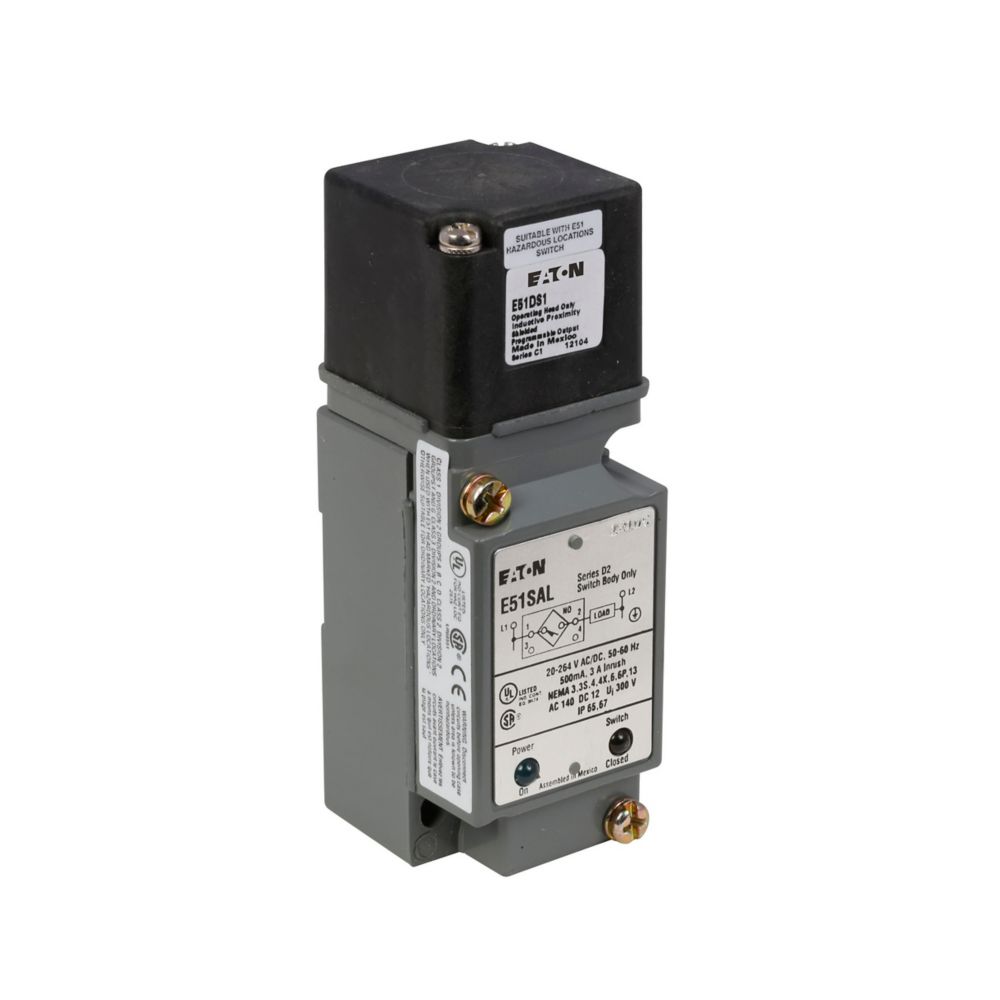

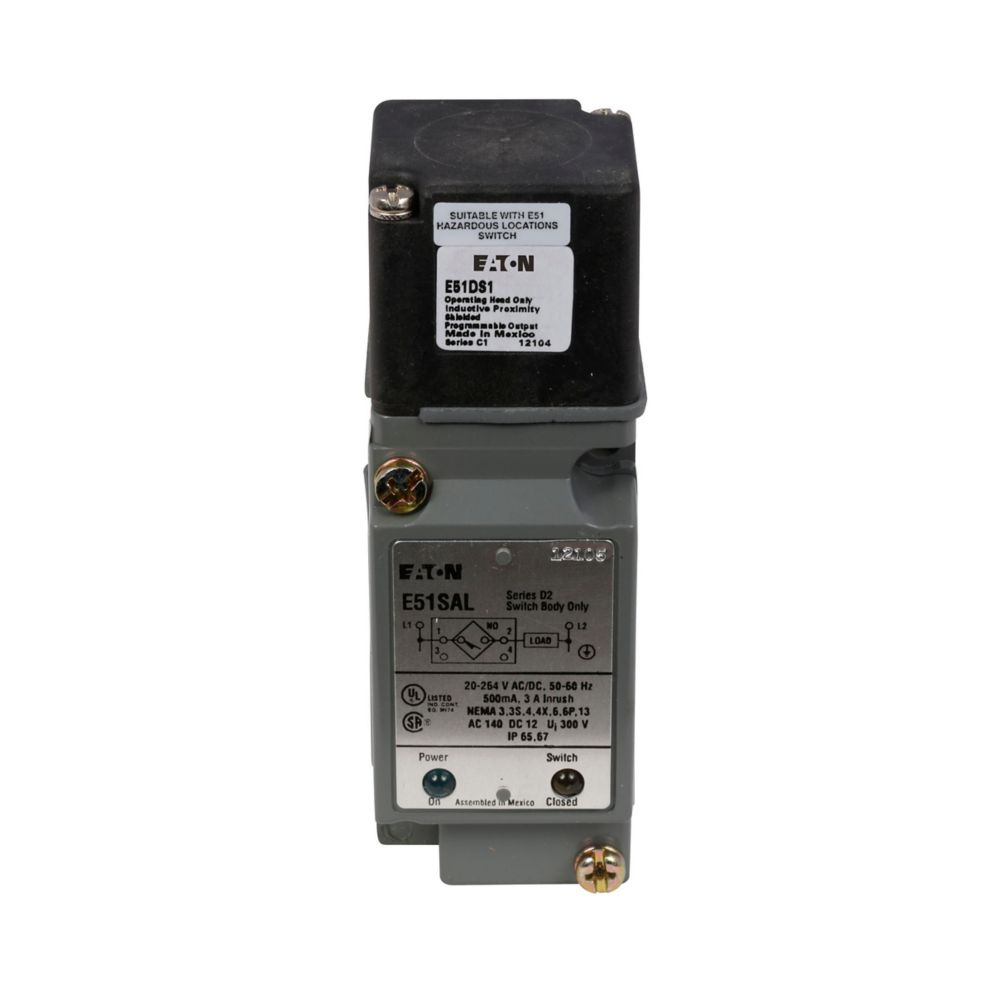

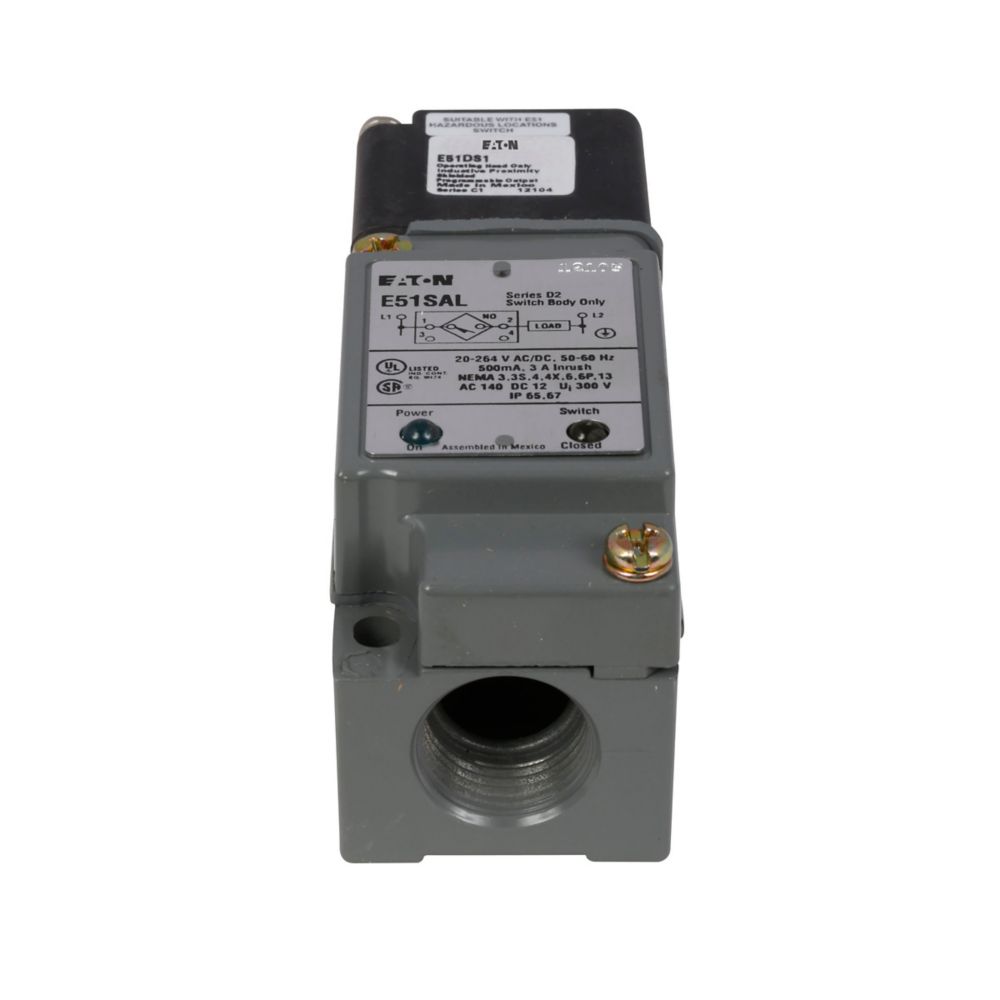

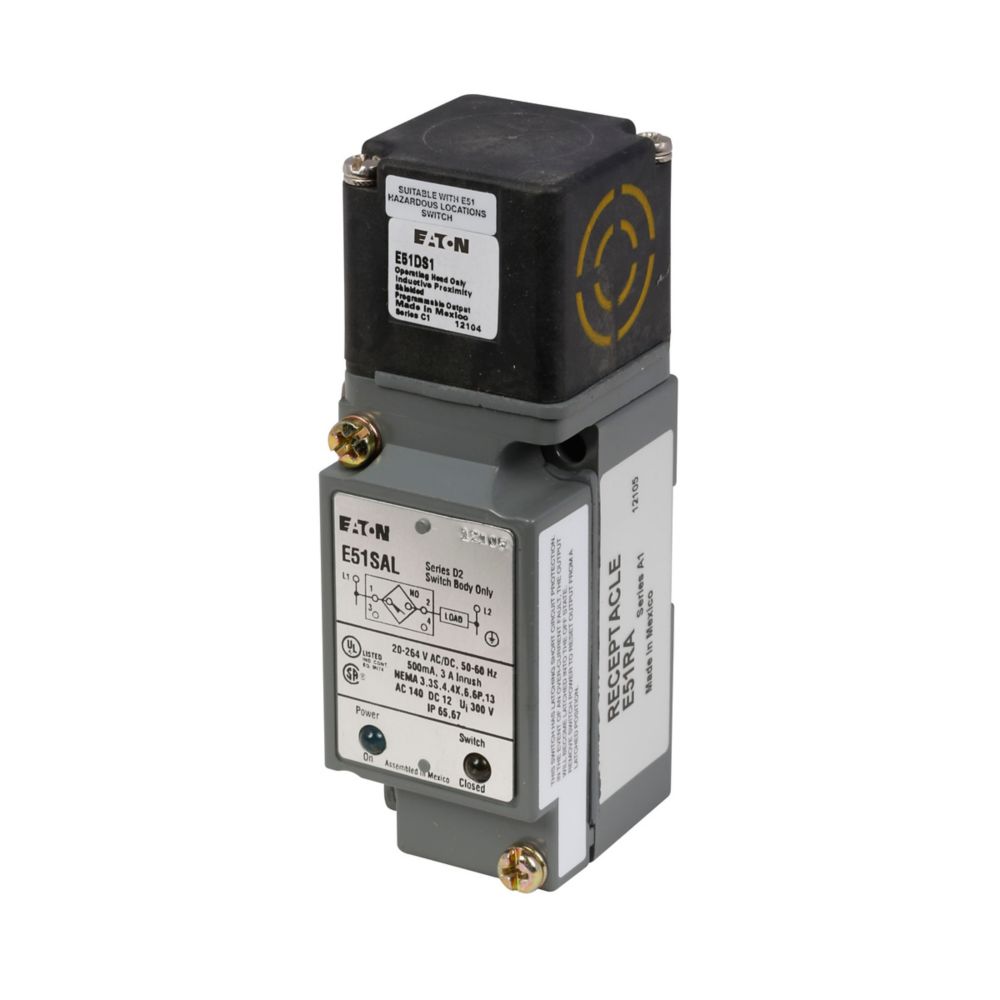

E51ALS1 is an E51 Modular Inductive Proximity Sensor designed for reliable industrial automation applications. This sensor features a right angle, shielded design with solid state output and LED indication for easy monitoring. The E51ALS1 offers versatile mounting options and is constructed with a die-cast zinc enclosure for durability in demanding environments. It supports both AC and DC voltage ranges and provides a robust solution for limit switching and proximity detection.

• Inductive Proximity Sensor
• Series: E51 Modular
• Mounting Type: Flush
• Connection: Screw Terminal
• Output: 500 mA AC/DC solid state
• Voltage: 20-264 Vac/dc
• Actuator Function: Shielded
• LED Indicator: Output ON (1 LED per output)
• Contact Configuration: NO/NC
• Environmental Rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
• Operating Temperature: -13 to 158 °F
• Enclosure Material: Die-cast Zinc
• Protection: Latching Short Circuit
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: E51ALS1
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Automation
• Item Subcategory : Proximity Sensors
• Family : E51
• Type : E51
• Voltage : 20-264VAC/VDC
• Amperage : 0.5
• Connection : Screw
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 2
• Aux Contacts : 1 NO, 1 NC
• Nema Rating : 3, 3S, 4, 4X, 6, 6P, 12, 13
• Mounting : Bracket, Din Rail
• Protection : Latching Short Circuit
• Enclosure Grade : Die Cast Zinc

Product Data

• UPC : 782113312736
• GTIN : 782113312736
• Dimensions : 4.53 in x 1.78 in x 1.54 in (Length/Depth x Height x Width)
• Weight : 1.05
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : Ul, Csa, Ce
