E50SAN6P - Cutler Hammer 10A 120V 1-Pole NEMA 1/3/4/6P Heavy Duty Plug-In Limit Switch

E50SAN6P

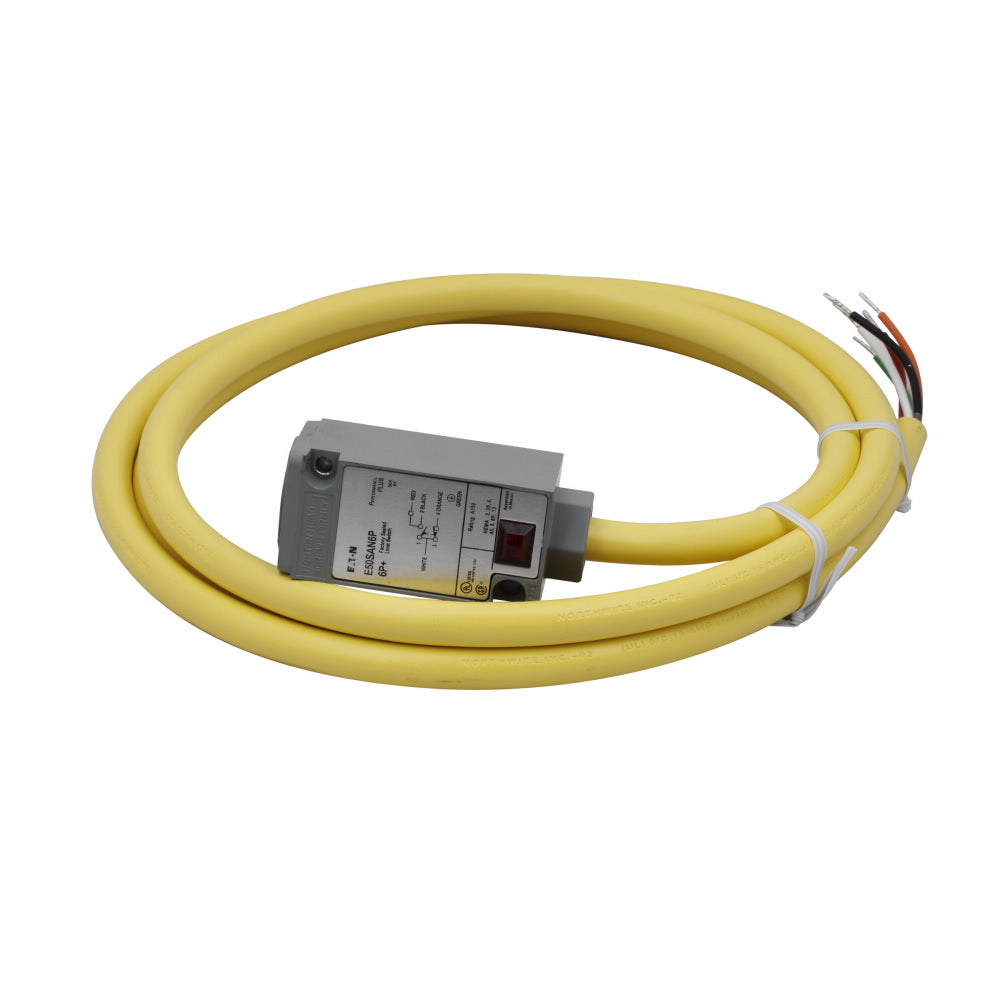

E50SAN6P is a Cutler Hammer heavy duty plug-in limit switch designed for reliable motor control applications.This limit switch features a 1-pole contact configuration with 1 normally open and 1 normally closed contact, rated for 10A at 240VAC and 1A at 125VDC. It includes a neon indicator for 120VAC operation and is housed in a durable die cast zinc enclosure. The switch supports a wide range of NEMA environmental ratings including 1, 3, 3S, 4, 4X, 6, 6P, and 13, making it suitable for harsh industrial environments. It comes with an 8 ft SOOW-A cable and offers mechanical durability of 10 million cycles and electrical durability of 1 million cycles.

Key Specifications
• Amperage: 10A at 240VAC, 1A at 125VDC
• Voltage: 120VAC (indicator), 240VAC max contact rating
• Poles: 1 pole (1 NO, 1 NC)
• Mounting Type: Plug-in
• Interrupt Rating: Not specified, heavy duty rating implied
• Series/Frame: E50 Series
• Trip Unit: Not applicable (limit switch)
• Enclosure Material: Die cast zinc
• Cable Length: 8 ft SOOW-A cable
• Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
• Certifications: UL Recognized, CSA Certified, UL Listed, CE Marked
• Operating Temperature Range: -29°F to 221°F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: E50SAN6P
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Limit Switch
• Family : E50 Series
• Type : E50



Product Data

• UPC : 782113130781
• GTIN : 00782113130781
• Country of Origin : Mexico
• Dimensions : 1.54 in x 3.58 in x 1.58 in (Length/Depth x Height x Width)
• Weight : 2.1188 lb
• Certification : UL Recognized,CSA Certified,CE Marked
